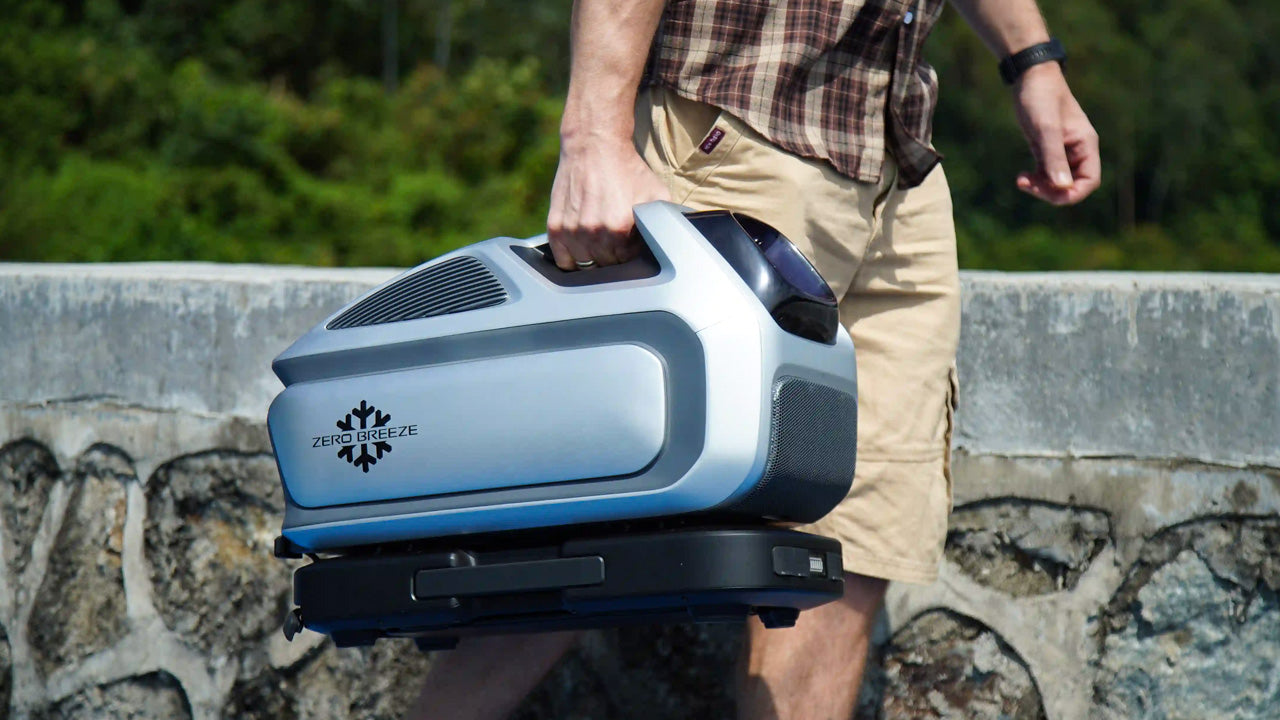

ZERO BREEZE Mark 3 AC Series
ZERO BREEZE Mark 3 AC Series
The Zero Breeze Mark 3 is a 48V compressor-driven portable climate unit that cools and heats. Cooling capacity is 5280 BTU at a 500W rated input; heating capacity is 5800 BTU. That's more than double the Mark 2's output from a unit that's only slightly heavier — the Mark 3 weighs 22 lb and measures 22 × 10 × 12 inches. Refrigerant is R290 (propane), which is more efficient and more environmentally friendly than the R134A in the Mark 2. Dual-hose architecture handles intake and exhaust separately, keeping the space pressurized and maximizing effective cooling. An active drain system expels condensate automatically — no manual emptying.
The 48V system is the defining design choice. Running the Mark 3 from a 12V or 24V source requires the Zero Breeze 48V Booster (sold separately), which steps up to the required voltage with 85–90% efficiency. The Mark 3 Battery (1022Wh, 21700 LiPo) charges via wall adapter, solar (12V–60V DC input), or the cigarette lighter cable (trickle). At 500W draw in Rocket mode, a single battery runs roughly 2 hours. In Sleep or Care mode the draw drops substantially and runtime extends to 4–6+ hours. Two batteries in the Plus Extra package covers most full-night cooling scenarios in moderate ambient temperatures.
Seven operating modes — Rocket, Cool, Sleep, Fan, Dry, Care, and Heating — with a built-in thermostat that cycles the compressor to hold a set temperature. Effective cooling area is approximately 100–150 sq ft in a well-insulated, properly sealed space. IPX4 moisture protection. Operating ambient range: 50°F–104°F (10°C–40°C).
Couldn't load pickup availability

Overview
48V compressor-based portable AC and heater. 5280 BTU cooling / 5800 BTU heating, 500W draw, 22 lb. Dual-hose, active drain, 7 modes with built-in thermostat. Runs from dedicated battery, solar, or 12V/24V source via 48V Booster.
Key features
- 5280 BTU cooling / 5800 BTU heating — R290 refrigerant, 500W rated cooling input; covers 100–150 sq ft in well-insulated spaces
- 48V DC system — runs from Mark 3 Battery, solar (12V–60V DC input), or vehicle/power station via 48V Booster; working range 38V–58.5V
- Dual-hose + active drain — separate intake/exhaust prevents depressurization; condensate expelled automatically
- 7 modes with built-in thermostat — Rocket, Cool, Sleep, Fan, Dry, Care, Heating; thermostat cycles compressor to hold set temperature
- Mark 3 Battery: 1022Wh — 14 lb, 21700 LiPo; ~2 hrs at Rocket, ~4–6+ hrs in moderate modes; solar-chargeable
Use cases
Off-grid overnight cooling and shoulder-season heating in rooftop tents, overlanding trailers, van sleeping areas, and small RV bunks. Most effective in insulated, sealed spaces up to 100–150 sq ft. Also used for dehumidifying (Dry mode) in humid conditions and maintaining sleeping-temperature setpoints overnight via the built-in thermostat.
- Cooling capacity: 5280 BTU (1550W)
- Heating capacity: 5800 BTU (1700W)
- Cooling rated input: 500W
- Rated voltage: 48V DC
- Working voltage range: 38V–58.5V
- Ambient operating range: 50°F–104°F (10°C–40°C)
- Refrigerant: R290
- Moisture protection: IPX4
- Hose design: Dual-hose (separate intake + exhaust)
- Drain: Active drain system (automatic)
- Operating modes: Rocket, Cool, Sleep, Fan, Dry, Care, Heating
- Thermostat: Built-in, cycles compressor to set temperature
- Dimensions: 22 × 10 × 12 in (56 × 26 × 31 cm)
- Weight: 22 lb (10 kg)
- Effective cooling area: ~100–150 sq ft (well-insulated, sealed space)
Mark 3 Battery:
- Capacity: 1022Wh
- Chemistry: 21700 Lithium-Ion Polymer
- Weight: 14 lb (6.4 kg)
- Dimensions: 20 × 8 × 4 in (51 × 21 × 11 cm)
- DC charge input: 12V–60V
- Charging: wall adapter (fast), solar, cigarette lighter cable (trickle)
Variants:
- Mark 3 Basic (Z30) — AC unit, hoses, hardware; no battery
- Mark 3 Plus (Z30+Z30B) — AC unit + one Mark 3 Battery
- Mark 3 Plus Extra (Z30+Z30B×2) — AC unit + two Mark 3 Batteries
- Mark 3 Battery (Z30B) — replacement/additional battery only
What's the difference between the Mark 3 and Mark 2?
The Mark 3 outputs more than double the BTUs (5280 vs 2300), heats as well as cools, uses a more efficient R290 refrigerant (vs R134A), and runs on a 48V system (vs 24V). It's heavier (22 vs 16.5 lb) and draws more power (500W vs 240W). The Mark 3 is the right choice if you need to cool a larger or less-insulated space, want heating capability, or want more headroom for hot ambient conditions. The Mark 2 remains a solid option for smaller well-insulated spaces on a tighter power budget.
Can I run the Mark 3 from my 12V or 24V house battery?
Not directly — the Mark 3 requires 48V input. The Zero Breeze 48V Booster (sold separately) converts 12V–36V DC to 48V at 600W output, letting you draw from a standard vehicle or house battery system. The booster runs at 85–90% efficiency, so a 12V source needs to sustain roughly 55A continuous. The Mark 3 Battery charges separately from the unit's power input; the 48V Booster powers the AC system directly.
How long does one Mark 3 Battery last?
At 500W draw (Rocket/full cooling mode), a single 1022Wh battery lasts approximately 2 hours. In Sleep or Care mode the compressor cycles and draw drops substantially — expect 4–6+ hours in moderate ambient conditions. Real-world runtime depends heavily on ambient temperature, insulation, and how far the set temperature is from ambient. Two batteries (Plus Extra) roughly doubles those figures and covers most full-night scenarios in hot conditions.
What's the active drain system?
The Mark 3 actively expels condensate from the cooling process rather than collecting it in a reservoir that needs manual emptying. In humid conditions a portable AC can produce significant condensation; without an active drain you'd need to stop and empty a tray periodically overnight. The active drain handles this automatically.
What does the built-in thermostat do?
It cycles the compressor on and off to maintain a set temperature rather than running continuously. Set it to 70°F and it runs the compressor until the space reaches 70°F, then switches to fan-only until the temperature rises, then kicks back on. This extends battery runtime considerably compared to running the compressor non-stop at full output.
What's in the Basic package vs Plus vs Plus Extra?
All three include the Mark 3 AC unit, hoses, and hardware. Plus adds one Mark 3 Battery (1022Wh); Plus Extra adds two. The Basic package makes sense if you already have a large-capacity power station or a 12V/24V system with the 48V Booster. The Plus and Plus Extra packages are for standalone off-grid use where the Mark 3 Battery is your primary or only power source.
Does the Mark 3 work in shoulder-season cold temperatures?
The ambient operating range is 50°F–104°F (10°C–40°C) for cooling mode. The heating mode extends practical use into cold mornings — the Mark 3 puts out 5800 BTU of heat, enough to warm a small sleeping space from cold. For temperatures below 50°F in cooling mode, performance degrades and Zero Breeze recommends against it; heating mode is intended for those conditions instead.
