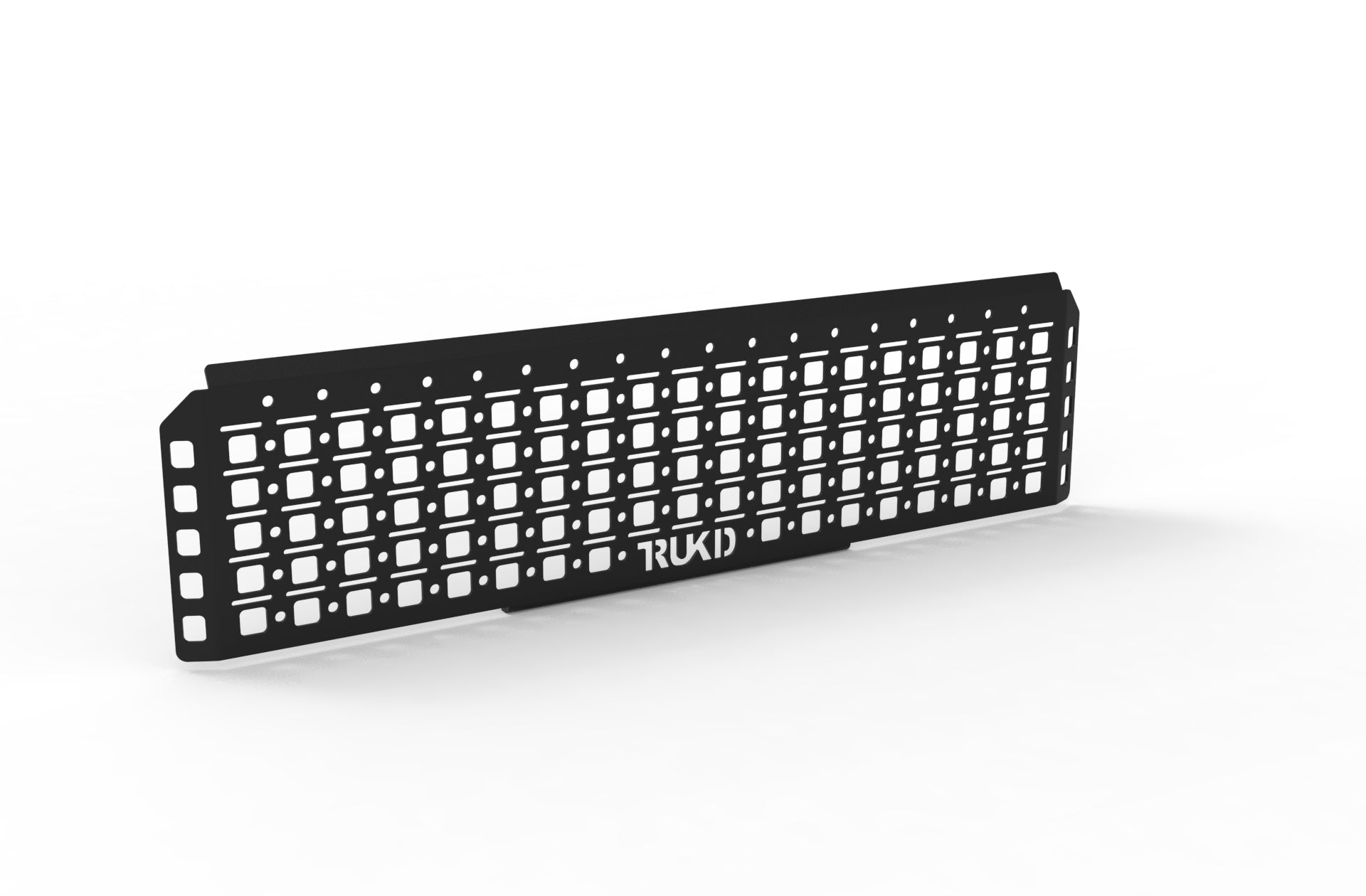

TRUKD V2 12.5" Accessory Panel
TRUKD V2 12.5" Accessory Panel
Our full-length 52" long panels span from bar to bar and allow you to strap everything you need to the side of the TRUKD bed rack! They adjust 2.5 in increments each way to allow for the maximum flexibility of your crossbar locations. These panels bolt directly onto the TRUKD 12-inch brackets by simply removing the stock faceplates. Our panels are made from powder coated 3/16 powder coated aluminum to allow you to load them up and use them without fear of rust.
These panels work great with any accessory that mounts with a 1/4-20 bolt, 1/2" bolt, or wide washer clamp, including Rotopax, Quickfist Clamps, TRUKD traction board mounts, and high lift jack mounts, and more! Check out our accessories section to order the right hardware and the to attach your accessories.
Rotopax require backer plates or an adapter to fit the TRUKD 2" hole spacing.
This panel is compatible with 12,18, or 24" bed rack heights, but must be placed at the top of the brackets on larger racks.
Specs:
Material: 3/16th Aluminum
Length: 52 inches or 64 inches
Finish: Textured Black Powder Coat
*Not Compatible with V1 TRUKD Bed Racks,
**64 inch panels are made-to-order and will take between 4 and 6 weeks to ship
Couldn't load pickup availability
Overview
TRUKD's widest V2 accessory panel — 12.5" of gear-mounting surface per side. Works on 12", 18", and 24" TRUKD rack heights, and is the only V2 panel offered in a 2-pack.
Key features
- 12.5" panel width — maximum gear mounting surface in the V2 panel lineup
- 2.5" adjustment range each direction for crossbar location flexibility
- Compatible with TRUKD 12", 18", and 24" rack heights (position at top of brackets on taller racks)
- ¼-20 hole pattern accepts Rotopax, QuickFist, traction board mounts, high-lift jack mounts, and more
- 2-pack option available in both 52" and 64" lengths — equip both sides in one order
Use cases
The 12.5" V2 panel is for full gear wall setups — Rotopax on one side, QuickFist tool clamps on the other, traction boards across the top. The 2-pack is the efficient way to build both sides at once on any 12", 18", or 24" TRUKD V2 rack without placing two separate orders.
- Panel Width: 12.5"
- Available Lengths: 52" (single or 2-pack), 64" (single or 2-pack; made-to-order)
- Adjustment: 2.5" in each direction
- Material: 3/16" aluminum
- Finish: Textured black powder coat
- Rack Height Compatibility: TRUKD 12", 18", and 24" V2 rack heights
- Bracket Requirement: TRUKD 12-inch V2 brackets (replaces stock faceplates)
- Hole Pattern: ¼-20 (may require pre-tapping after powder coat)
- Rotopax Note: Requires backer plate or adapter — TRUKD 2" hole spacing incompatible with Rotopax default mounting
- 64" Lead Time: Made-to-order, 4–6 weeks
- Manufactured: Pittsburgh, PA, USA
- Origin: Made in USA
What rack heights work with the V2 12.5" panel?
Compatible with TRUKD 12", 18", and 24" V2 rack heights. On taller racks, position the panel at the top of the brackets.
What's the 2-pack option?
The 2-pack includes two identical panels (both 52" or both 64") for one panel per side of the bed rack. It's available for both lengths and is the simplest way to outfit both sides in a single order.
What's the difference between the 52" and 64" lengths?
The 52" panel spans a standard crossbar setup. The 64" panel is longer and made-to-order — allow 4 to 6 weeks from order date.
Why does Rotopax need a backer plate?
TRUKD panels use 2" hole spacing. Rotopax requires different geometry to mount correctly. A backer plate or Rotopax adapter bridges the difference — source one from TRUKD's accessories section before ordering Rotopax.
Do the holes come pre-threaded for ¼-20 bolts?
Panels are powder-coated after fabrication, which can partially fill the holes. You may need to run a ¼-20 tap through each hole before mounting accessories. Check all holes before installing.
Can I use this panel on a V1 TRUKD rack?
No. V2 accessory panels require V2 brackets and are not compatible with V1 TRUKD hardware.
