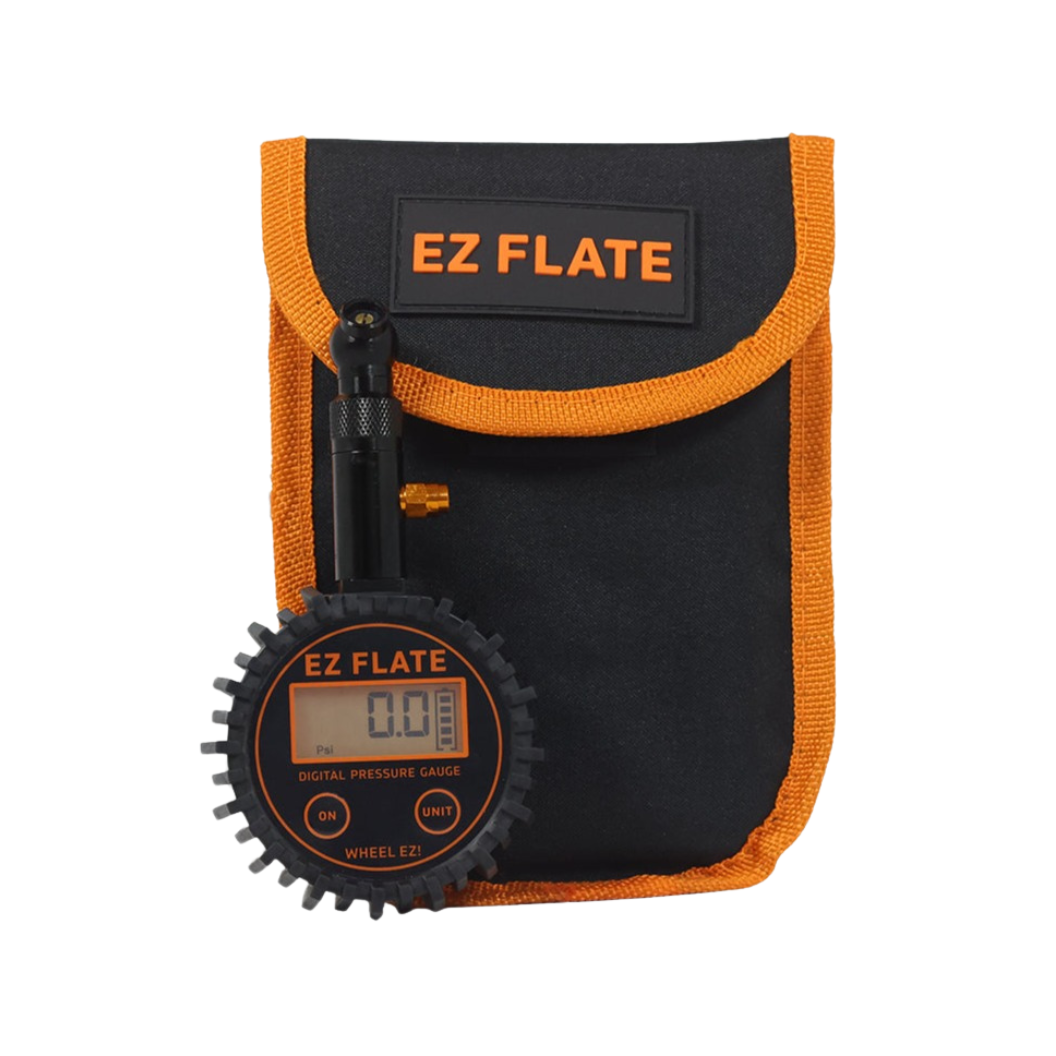

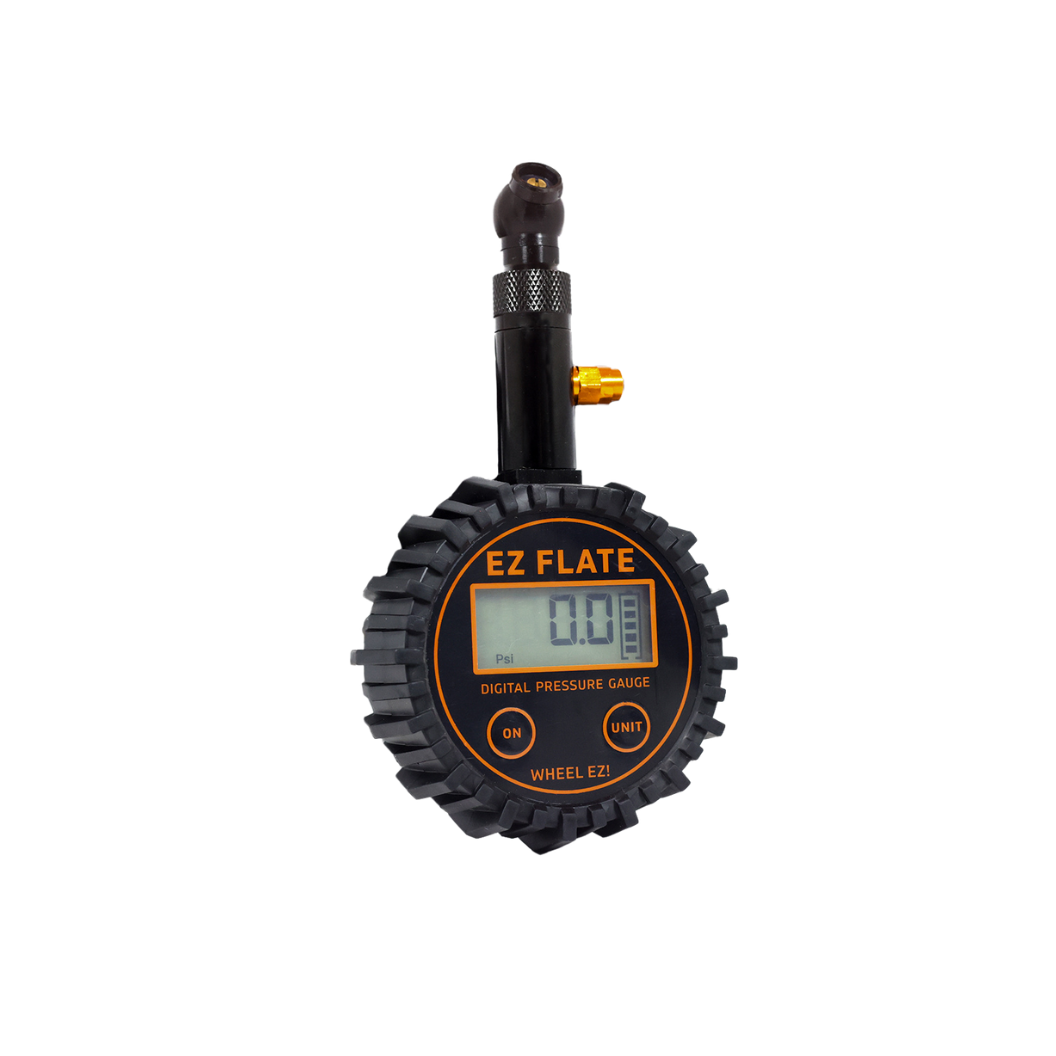

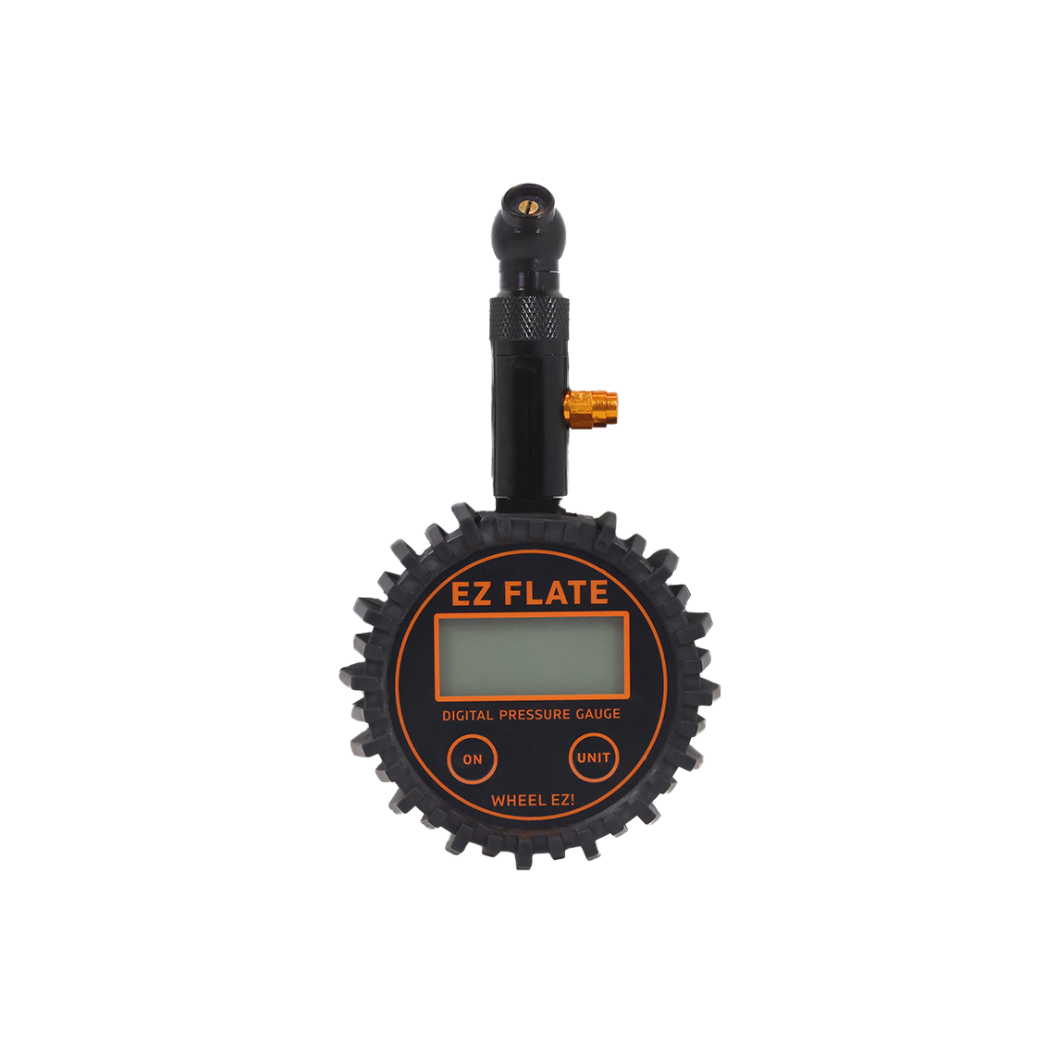

Single Tire Digital Pressure Gauge
Single Tire Digital Pressure Gauge
The Single Tire Digital Pressure Gauge is a read-and-bleed tire tool that covers 5-120 PSI in 0.1 PSI increments, rated to ±0.5% accuracy. Press the chuck onto any standard Schrader valve and the screen holds the reading until you bleed air with the button — so you watch the number drop in real time instead of pulling the gauge to re-check. It switches between PSI, BAR, KPA, and KGF/CM², and the backlit display stays readable at dawn or under a fender at night.
For airing down before a trail, the held reading is the whole point: set your target sand or rock pressure, then tap the bleeder in small steps until the gauge lands where you want it. One minute after you let off, it auto shuts off to spare the batteries. It is a gauge, not a powered inflator — it reads and bleeds, so pair it with a compressor when it is time to air back up.

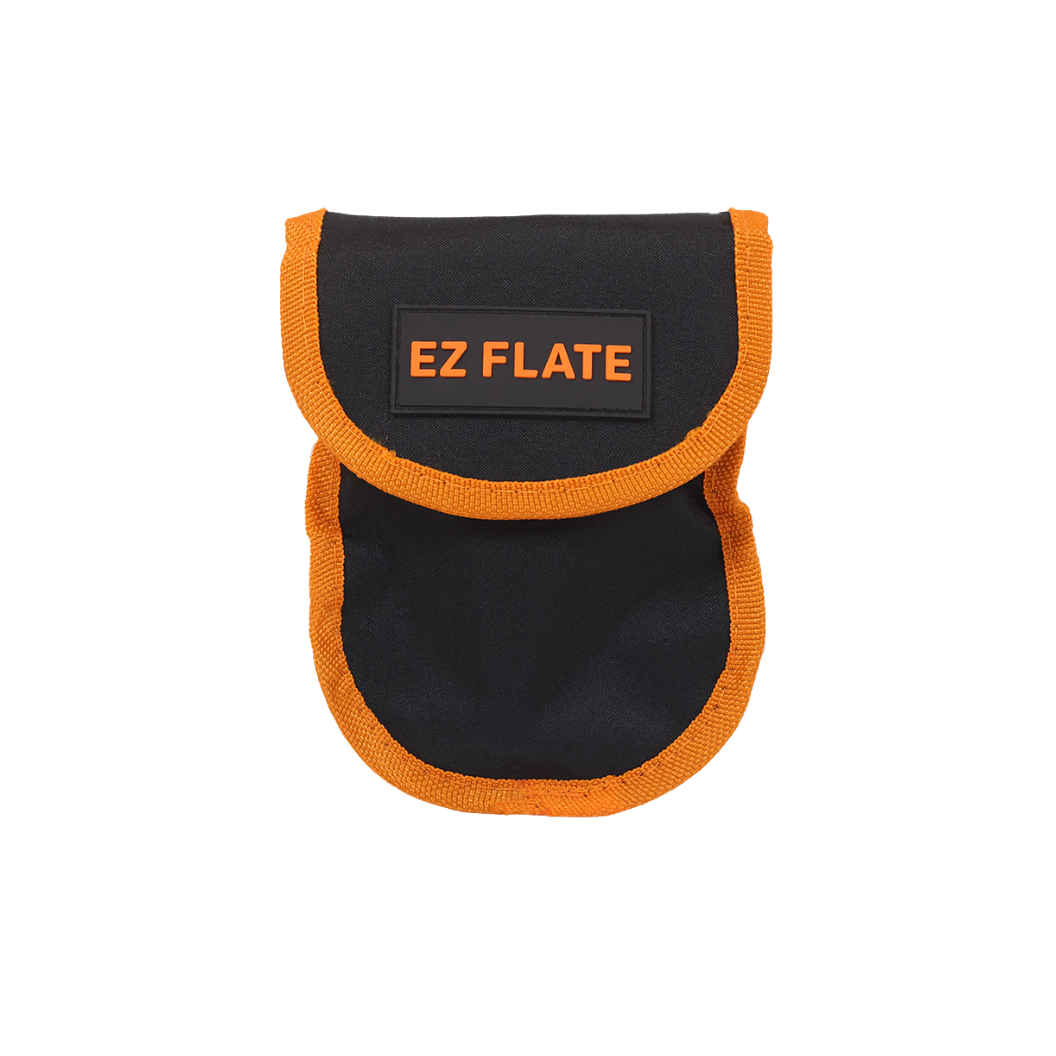

It runs on 2x AAA batteries (included) and ships with a storage bag, so it lives in a door pocket, glovebox, or recovery bag without rattling loose. The standard chuck fits truck, UTV, side-by-side, and trailer tires alike. Backed by EZ FLATE's 3-year warranty.
Couldn't load pickup availability
Overview
A compact digital tire gauge that reads and bleeds in one motion. Built for airing down and quick pressure checks across trucks, UTVs, side-by-sides, and trailers — 5-120 PSI with 0.1 PSI resolution.
Key features
- Reads 5-120 PSI in 0.1 PSI increments at ±0.5% rated accuracy
- Holds the reading on a backlit screen until you press the bleeder valve
- Bleeds air in controlled steps so you hit a target pressure without re-checking
- Four unit modes: PSI, BAR, KPA, and KGF/CM²
- Auto shut-off one minute after pressure is released to save battery
- Standard Schrader chuck fits car, truck, UTV, side-by-side, and trailer valves
- Runs on 2x AAA batteries (included); ships with a storage bag
Use cases
Airing down to a set trail pressure and watching it land without guessing, then verifying after you air back up. Doubles as a quick-check gauge for a mixed fleet — grab one tool for the truck, the trailer, and the side-by-side.
- Pressure range: 5-120 PSI
- Resolution: 0.1 PSI increments
- Accuracy: ±0.5% (rated)
- Unit modes: PSI / BAR / KPA / KGF/CM²
- Reading hold: holds until bleeder valve is pressed
- Auto shut-off: 1 minute after pressure release
- Valve fitment: standard Schrader chuck
- Power: 2x AAA batteries (included)
- In the box: gauge, storage bag, 2x AAA batteries
- Warranty: 3-year (EZ FLATE)
Does this inflate tires, or only read pressure?
It reads and bleeds — it is not a powered inflator. Press the chuck on the valve to read, then press the bleeder button to let air out in steps. To air back up, pair it with a compressor.
How accurate is it?
Rated ±0.5% with 0.1 PSI resolution. That is well within what trail airing-down needs; you can dial a target sand or rock pressure and trust the number on the screen.
What pressure range does it cover?
5-120 PSI. That spans single-digit sand pressures up through light-truck and trailer pressures, so one gauge handles most setups.
Will it fit my valve stems?
It uses a standard Schrader chuck, the same valve found on cars, trucks, UTVs, side-by-sides, and trailers. No adapters needed for standard stems.
How is battery life, and what powers it?
It runs on 2x AAA batteries (included) and auto shuts off one minute after you release pressure to stretch them. For long trips, toss a spare pair in the storage bag, and pull the batteries if you are storing it for months.
