Racksbrax HD Hitch Standard (Double) [R]

Overview

The RacksBrax HD Hitch Standard (Double) is the two-point, quick-release awning mount in the HD range. Two hitches, two mounting points, 40kg total load. Built for pull-out awnings and smaller rack accessories.

Key features

• 2 hitches / 2 mounting points — the everyday config; one set of holders, sized for most common rack bar spacings
• 40kg total load — 20kg per mounting point
• Fits 40-52mm spine track spacing — pull-out awnings, shower cubes, slimline awnings
• M6 and M8 stainless fasteners included — bolts to either bolt size on your track or rack
• UV-stabilized, glass-reinforced nylon — handles sun and weather without going brittle
• Tool-free quick release — awning lifts on and off in seconds once the bases are mounted

Use cases

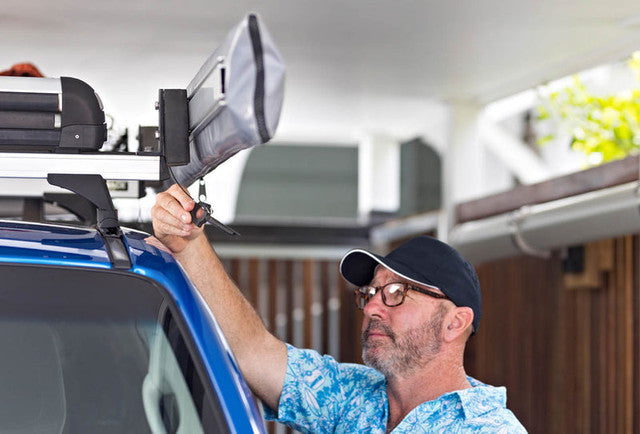

Mount a pull-out awning to your roof rack and pull it off in seconds when you don't need it. The two-point base also carries shower cubes and slimline accessories, so one set of mounts covers a few jobs. This is the HD mount for pull-out gear, not wing awnings; 180 and 270 wing awnings use the XD Hitch.

• Configuration: Standard (Double) — 2 hitches
• Mounting points: 2
• Total load: 40kg (20kg per point)
• Spine track spacing: 40-52mm
• Fasteners: M6 and M8 stainless (both included)
• Material: UV-stabilized, glass-reinforced nylon
• Release: Tool-free quick release
• Fits: Pull-out awnings, shower cubes, slimline accessories
• SKU: RBUS8159
• Shipping weight: 1361 g (3.0 lb)

How many brackets come in this kit?

Two. The Standard (Double) ships two hitches, giving two mounting points. If you need three load points for a longer or heavier awning, that's the Triple.

Will it fit my awning?

It fits accessories with spine track spacing between 40mm and 52mm, which covers most pull-out awnings, shower cubes, and slimline awnings. Measure your awning's track spacing before you buy.

How much weight can it hold?

40kg total, split as 20kg per mounting point. Stay within that limit.

Does it work with wing-style 180 or 270 awnings?

No. The HD Hitch is for pull-out awnings and smaller accessories. Wing-style 180 and 270 awnings need the XD Hitch instead.

Do I need tools to take the awning off?

No. Once the bases are bolted to your rack, the awning lifts on and off in seconds without tools.

Do I get M6 or M8 bolts?

Both. The kit includes M6 and M8 stainless fasteners so the hitch suits either bolt size on your awning track or rack.

Anything to watch for in bad weather?

Standard awning care applies. Restrain the awning in wind, drain it during rain, and clear snow off it so the load stays inside the 40kg limit.
