Nacho TM5 Racer 5.75-Inch LED Spot Light (Pair)
Nacho TM5 Racer 5.75-Inch LED Spot Light (Pair)

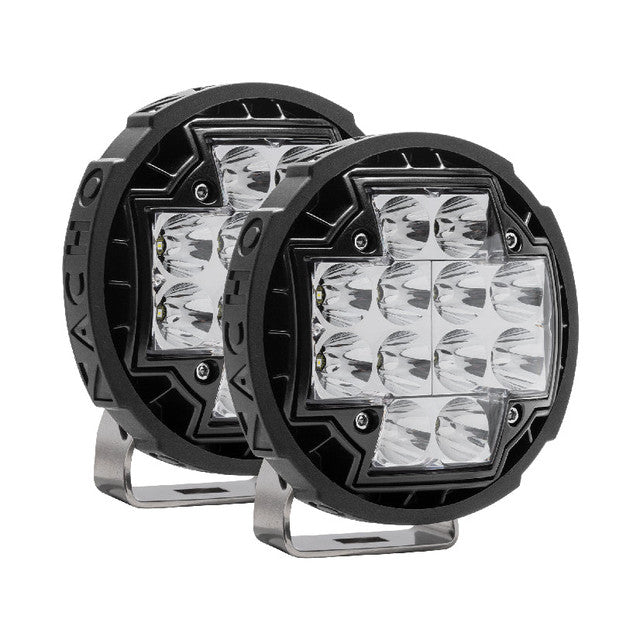

The Nacho TM5 Racer is a pair of 5.75-inch round LED spot lights built to throw a beam far down the trail. Each light puts out 9,600 raw lumens and 400,000 candela through a tight 4-degree spot pattern. As a pair, the hot spot reaches roughly 914 meters at the highest setting, so you see the corner before you're in it at speed.
This is a pure spot, not a fill light. The 4-degree beam is dialed for distance and high-speed dirt, where you need to read terrain well past where low beams quit. If you want foreground spread for slow technical crawling, run these alongside a flood or combo light. The 5700K LEDs draw 90 watts per light and run on anything from 11 to 36 VDC, so they work on both 12V and 24V rigs.
The housing is cast aluminum with a black powder coat acting as the heat sink, and the lens is impact-rated polycarbonate. Both lights are IP68 sealed and SAE J575 vibration rated, so river crossings and washboard roads are not a problem. The set ships with two stainless steel brackets and mounting hardware, sized for A-pillar or front bumper mounting. A wiring harness is sold separately.
Couldn't load pickup availability
Overview
The Nacho TM5 Racer is a pair of 5.75-inch round LED spot lights tuned for long-distance throw at speed. Each light runs 9,600 raw lumens and 400,000 candela through a 4-degree beam.
Key features
- 9,600 raw lumens and 400,000 candela per light; 4-degree focused spot beam
- ~914 meter beam reach (pair, highest setting) at 5700K
- 90 watts per light, 11-36 VDC input for 12V and 24V systems
- Cast aluminum housing with black powder coat heat sink and impact-rated polycarbonate lens
- IP68 sealed and SAE J575 vibration rated
- Ships as a pair with two stainless steel brackets and hardware
Use cases

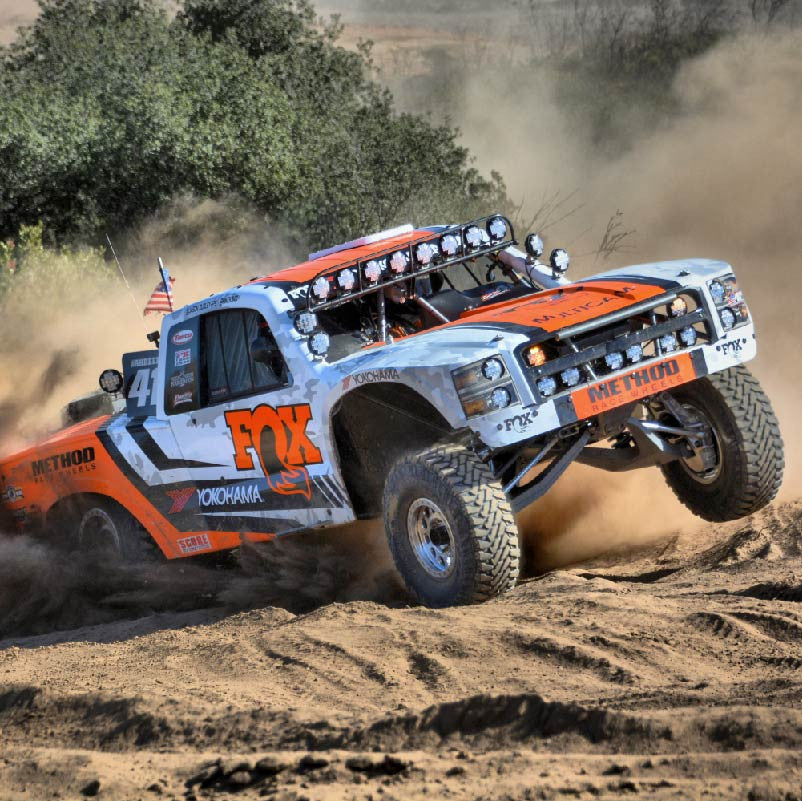

Built for high-speed desert and dirt-road driving where you need to read terrain far past your headlights. The narrow spot also serves overland trail driving at night when you want long-throw distance over foreground spread. Pair with a flood or combo light for slow technical work.

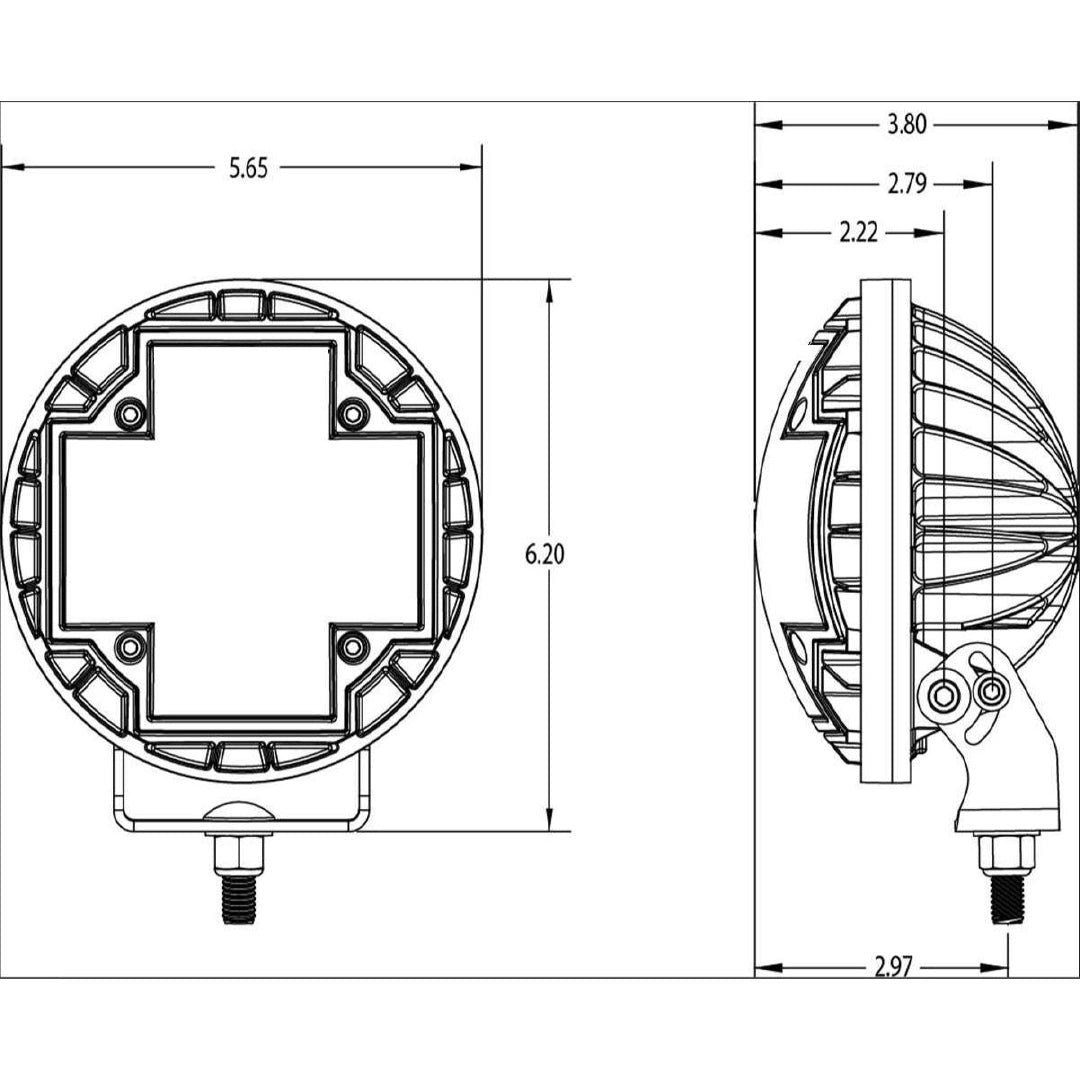

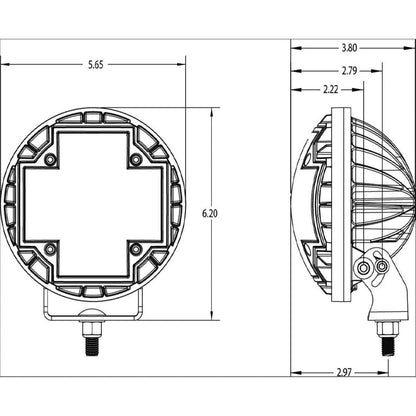

- Size: 5.75 in round, sold as a pair
- Beam pattern: Spot, 4-degree spread
- Raw lumens: 9,600 per light (19,200 pair)
- Candela: 400,000 per light
- Beam reach: ~914 m at 1 lux (pair, highest setting)
- Color temperature: 5700K
- Wattage: 90 W per light
- Voltage: 11-36 VDC
- Lens: Impact-rated polycarbonate
- Housing: Cast aluminum, black powder coat heat sink
- Sealing: IP68
- Vibration: SAE J575 rated
- Mounting: Stainless steel brackets and hardware included
- Warranty: Lifetime
Does this come as a pair, and is the wiring harness included?
Yes, the TM5 Racer ships as a pair of lights with two stainless steel bracket kits and hardware. The wiring harness is not included and is sold separately.
Spot or combo — which one do I want?
The Racer is a tight 4-degree spot built for distance and high speed. If you want foreground spread for slow, technical driving, choose a combo or flood instead, or run one of each.
Will it hold up to water and vibration?
Both lights are IP68 sealed against dust and water and are SAE J575 vibration rated. The lens is impact-rated polycarbonate, so washboard roads and river crossings are not a concern.
What electrical system does it run on?
The TM5 Racer accepts 11-36 VDC, so it works on both 12V and 24V vehicles. Each light draws about 6.4 amps at 14.4V and pulls up to 90 watts.
Where do most people mount these?

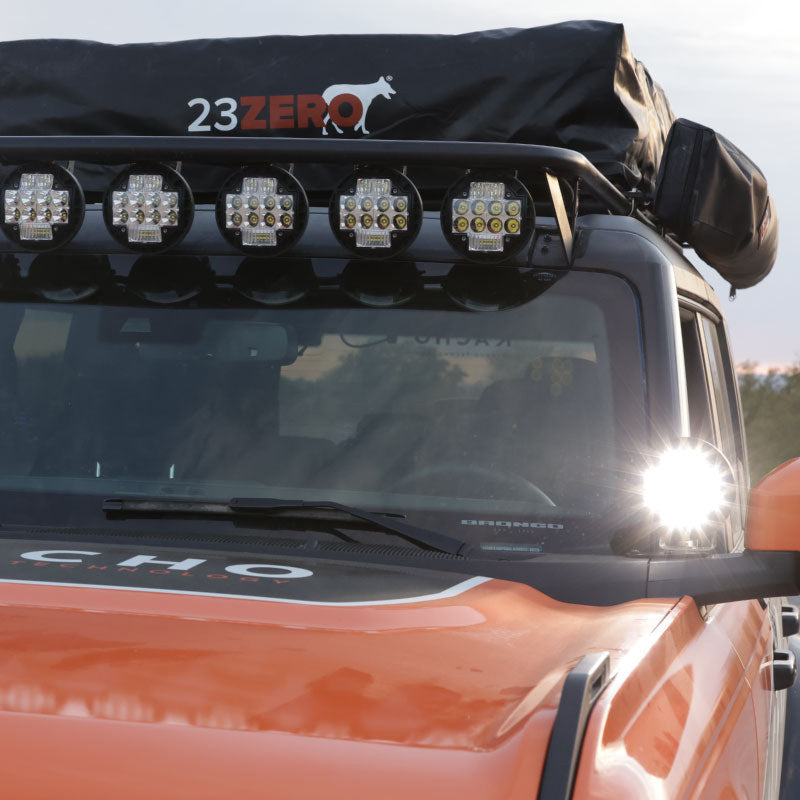

The included bracket and hardware are sized for A-pillar or front bumper mounting. A-pillar mounts keep the spot beam up above bumper dust and spray on fast dirt roads.
What color is the light output?
The LEDs run at 5700K, a clean, slightly cool white that reads terrain and signs clearly without the yellow cast of older halogen lights.
