MAXTRAX MOUNTING PIN SET X-SERIES
MAXTRAX MOUNTING PIN SET X-SERIES
Genuine MAXTRAX Mounting Pins are the easiest, safest, and most secure mounting solution for putting your MAXTRAX on a roof rack or cross-bars. Constructed from high-quality black nylon and stainless steel, these quick-release pins can hold one or two sets of MAXTRAX (2 or 4 boards). The design also permits a TSA-style padlock to be run through the top of the pin to keep your MAXTRAX secure—we recommend a bicycle cable lock if your security requirements exceed this.
- 0
- 0
- 0
- 0
- 0
- 0
Couldn't load pickup availability
Overview

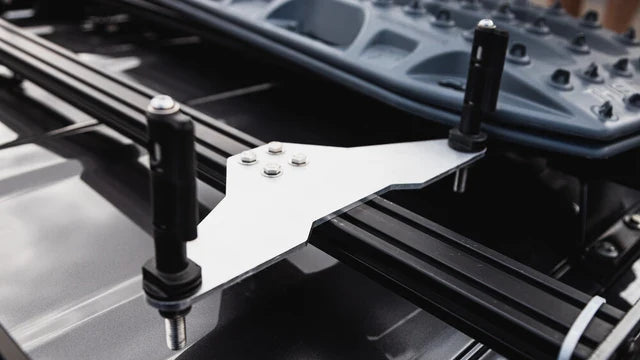

The MAXTRAX Mounting Pin Set X-Series is a four-pin, quick-release kit for mounting MAXTRAX traction boards to a roof rack or cross-bars. It carries a mixed stack of four boards — a pair of MKII plus a pair of X-Series — and accepts a TSA-style padlock.
Key features
- Set of four quick-release pins — push to seat, pull to release, no tools.
- Glass-filled nylon body with stainless steel hardware for corrosion resistance.
- Carries four boards — a pair of MKII plus a pair of X-Series, stacked.
- Pin head has a channel for a TSA-style padlock.
- Seats in the standard mounting holes shared by X-Series and MKII boards.
Use cases
Built for overlanders who carry recovery boards externally to keep the cabin and cargo area clear. Run the full mixed stack — a pair of MKII and a pair of X-Series — on extended trips where you want four boards up top and an open cargo floor.
- Pins per set: 4 (with stainless Nyloc nuts and washers)
- Body material: Glass-filled nylon
- Hardware: Stainless steel
- Boards held: 4 — one pair of MKII plus one pair of X-Series (mixed stack)
- Operation: Quick-release, tool-free
- Security: TSA-style padlock channel in pin head
- Compatibility: MAXTRAX X-Series and MKII boards
- Mounting: Roof rack or cross-bars with matching hole spacing
- Ship weight: 449 g
How many MAXTRAX boards will one set hold?
Four — one pair of MKII on the lower knuckle and one pair of X-Series stacked above. The kit is designed for that mixed stack, not for two pairs of the same model.
Do these fit both X-Series and MKII boards?
Yes. The pins seat in the standard MAXTRAX mounting holes that X-Series and MKII boards share. Note the kit is sized for one pair of each stacked together, not a double stack of a single model.
Do I need tools to mount or remove the boards?
No. The pins are quick-release. Push to seat them and pull to release — you can have a board off the rack and under a tire in seconds.
Are the boards locked once they're mounted?
The pin head has a channel for a TSA-style padlock, which deters casual theft at a trailhead or fuel stop. For higher security, run a bicycle cable lock through the board stack instead.
Will the pins hold on rough washboard roads?
The stainless detent keeps each pin seated, but on sustained corrugations add the padlock or a cable lock as a backup retainer so nothing works loose.
How do I keep them working in the long run?
The black nylon and stainless steel resist corrosion in salt and weather. Rinse trail grit off the pins now and then so the detent and lock channel stay clean and free-moving.
