The MAXTRAX CORE SHACKLE:
- The MAXTRAX CORE SHACKLE is designed to be at the CORE of two interacting MAXTRAX Products.
- The CORE SHACKLE is designed for use with the MAXTRAX WINCH RING 120.
- The MAXTRAX CORE SHACKLE has been designed and tested as part of the MAXTRAX RECOVERY SYSTEM.
- The MAXTRAX RECOVERY SYSTEM is comprised solely of MAXTRAX products and has not been tested with any third-party branded products.
- Only use rated recovery points when connecting the MAXTRAX FUSE SHACKLE or MAXTRAX CORE SHACKLE to a vehicle.
Couldn't load pickup availability
Overview
The MaxTrax Core is a 14,000 kg MBS soft shackle for everyday recovery connections. It replaces a heavy steel bow shackle with 180 g of UHMWPE rope and a protective braided sheath.
Key features
- 14,000 kg (30,864 lb) minimum breaking strength
- 180 g weight, 550 mm (21.5 in) length
- UHMWPE load-bearing core with abrasion-resistant braided polyester sheath
- Designed to pair with the MaxTrax Winch Ring 120 and MaxTrax recovery gear
- General-purpose connector, distinct from the sacrificial MaxTrax Fuse Shackle
Use cases

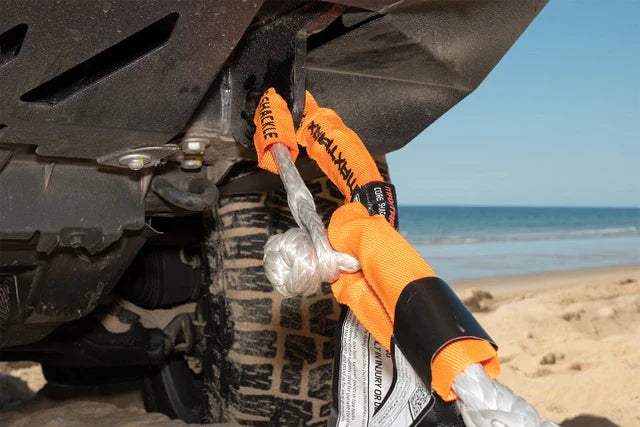

Use the Core to connect MaxTrax recovery components, join ropes and straps, or attach a strap to a rated vehicle recovery point. It's the lightweight, everyday alternative to a steel shackle for the connections that aren't meant to be the weak link.
- Minimum Breaking Strength: 14,000 kg (30,864 lb)
- Weight: 180 g
- Length: 550 mm (21.5 in)
- Core material: Ultra-High-Molecular-Weight Polyethylene (UHMWPE)
- Sheath: Braided polyester, abrasion-resistant
- Compatibility: MaxTrax Winch Ring 120, MaxTrax ropes/straps, rated vehicle recovery points
- Sold as: Single shackle
- Warranty: 1 year
What's the difference between the Core and the Fuse Shackle?
The Core is a general-purpose soft shackle with a 14,000 kg breaking strength. The Fuse has a lower, precise 7,000 kg breaking strength so it fails first and protects your recovery points and straps. Use a Fuse as the weak link during a vehicle recovery; use the Core for everyday connections like the Winch Ring 120.
How strong is the Core Shackle?
It has a 14,000 kg (30,864 lb) minimum breaking strength.
What does it work with?
It's built to pair with the MaxTrax Winch Ring 120 and MaxTrax ropes and straps, and it fits rated vehicle recovery points and most kinetic ropes or straps with a soft-shackle eye.
How much does it weigh and how long is it?
About 180 g, and 550 mm (21.5 in) long.
How do I inspect it before use?
Check the braided sheath and the core for cuts, fraying, burns, melting, or abrasion before every use. Retire the shackle if you find any of those.
