ARB Fridge Wiring Kit (10900027)
ARB Fridge Wiring Kit (10900027)

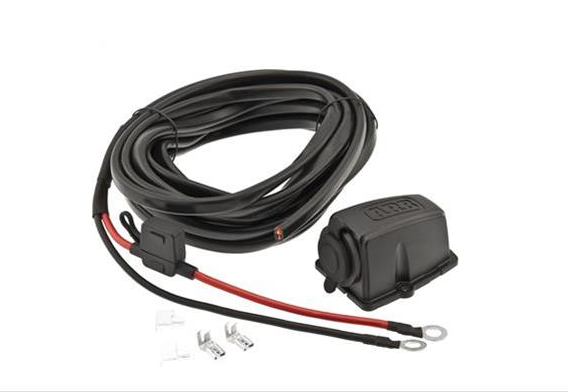

Consisting of 20ft (6m) of double insulated 8 gauge (6mm) auto cable, pre-assembled with in-line fuse and eyelets (8mm, 5/16) for quick installation onto your battery terminals. Included in this kit are 2 x 1/4 side entry quick-connect terminals and insulators. These terminals (to be soldered at the time of installation) are supplied loose to enable the installer to trim the cable to a suitable length and therefore provide the best conditions for the fridge by minimizing voltage drop. The rear terminals of the socket are identified with + and - for correct installation of the connectors. This kit is a full solution with the supply of an ARB screw in surface mount socket kit.
Features & Benefits- 20ft Of Double Insulated 8 Gauge Cable
- Preassembled with In-Line Fuse/Eyelets
- Quick Installation Onto Battery Terminals
- 2X 1/4 in. Side Quick Connect Terminals
- Can Trim Cable To Suitable Length
- Minimizes Voltage Drop
Couldn't load pickup availability
Overview
A complete hardwire kit for a 12V portable fridge/freezer: 20 ft of 8 AWG cable, an in-line fuse, pre-fitted battery eyelets, two solder-on quick-connect terminals, and an ARB screw-in surface-mount socket. It gives the fridge a dedicated, full-voltage feed from the battery.
Key features
- 20 ft (6 m) of double-insulated 8 AWG (6 mm) automotive cable
- Pre-assembled in-line fuse and 8 mm (5/16 in) ring eyelets for the battery terminals
- Two 1/4 in side-entry quick-connect terminals supplied loose to solder after trimming
- ARB screw-in surface-mount socket with + / - marked terminals
- Heavy gauge minimizes voltage drop under compressor load
Use cases
Built for overlanders and off-road rigs running a portable fridge. Wire it to the starter or an auxiliary battery for a stable feed, and mount the socket wherever the fridge lives — rear cargo area, drawer, or canopy — so it draws on its own circuit instead of a shared dash outlet.
- Cable length: 20 ft (6 m)
- Cable gauge: 8 AWG (6 mm), double-insulated automotive cable
- Battery eyelets: 8 mm (5/16 in), pre-assembled
- In-line fuse: included, pre-assembled
- Quick-connect terminals: 2 × 1/4 in side-entry, with insulators (solder-on)
- Socket: ARB screw-in surface-mount, + / - marked
- Ship weight: 1361 g (~3.0 lb)
- SKU: ARB10900027
- Barcode: 9332018022233
Why use this instead of the cigarette-lighter plug?
A factory accessory socket and its thin wiring drop voltage under a fridge's compressor load, which makes the fridge work harder and can trip its low-voltage cutoff. This kit runs heavy 8 AWG cable straight from the battery with an in-line fuse, so the fridge sees full voltage.
Will the eyelets fit my battery terminals?
The battery end comes pre-fitted with 8 mm (5/16 in) ring eyelets that bolt to standard automotive post terminals.
Do I have to solder anything?
Yes. The two 1/4 in side-entry quick-connect terminals ship loose so you can trim the cable to length first, then solder them on. The battery eyelets and the in-line fuse are already assembled.
What does the fridge actually plug into?
The kit includes an ARB screw-in surface-mount socket. You mount it wherever you want the fridge to plug in, and the kit feeds it from the battery — a complete battery-to-socket solution, not just loose wire.
Why is the cable so long?
The 20 ft (6 m) run gives you room to route from an engine-bay battery back to a rear cargo area or drawer. Trim it to your actual run before soldering the socket terminals — shorter is better for voltage drop.
Is the run protected?
Yes. An in-line fuse is pre-assembled on the cable. Keep it accessible; it's the protection point for the whole circuit.
