Overland Solar Bugout 130 Portable Solar Charger
Overland Solar Bugout 130 Portable Solar Charger

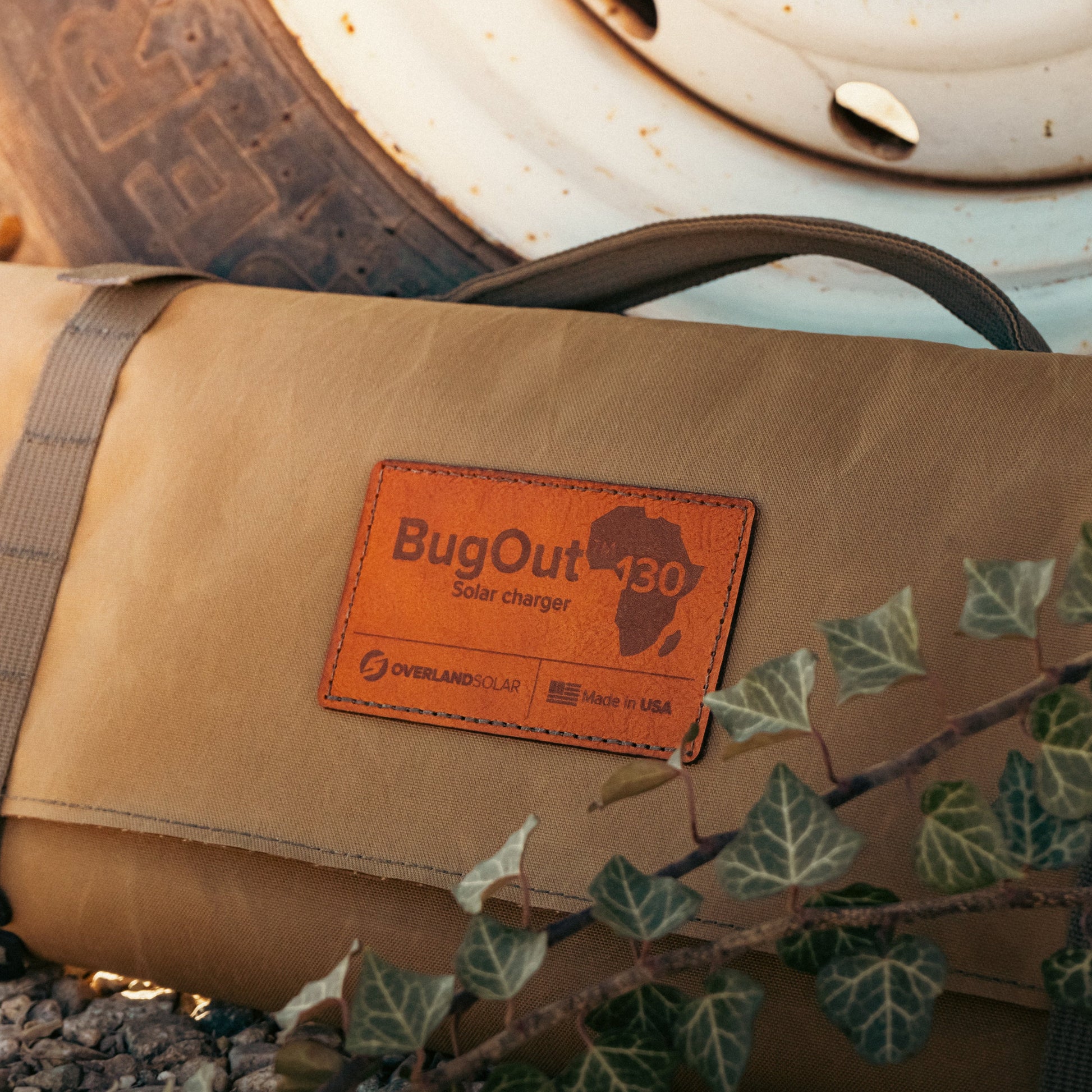

The Overland Solar Bugout 130 is a ~130W folding solar charger built into a 1050D Cordura / X-Pac waterproof shell instead of glass. It runs SunPower Maxeon Gen III monocrystalline cells rated at 23.7% efficiency, puts out 22V open-circuit, and pushes up to 7 amps an hour into a 12V battery in good sun. Closed, it folds to 22 x 7.5 x 3.5 inches and weighs 7.3 pounds; open, it spans 22 x 68 inches.
This is a solar panel, not a power station. It charges a battery rather than storing power itself. Output runs through a Mini Anderson connector, and the included 20-foot cable steps that down to an SB50 Anderson plug plus an SB50-to-SAE adapter, so it drops straight into common camper solar inputs and portable battery boxes. The 22V output needs a charge controller before it touches a 12V battery directly; add the MPPT 10A bundle and you can charge any 12V battery with nothing else in the loop. Want device charging with no battery at all? Add the Dual USB-C accessory.
Double-stitched lashing points and grommets let you stake it, hang it, or lash it to a roof rack, and the Maxeon cells keep producing in overcast, rain, and snow at a reduced rate. Assembled and sewn in Boise, Idaho, and backed by a 2-year warranty (up to 5 years).
Couldn't load pickup availability
Overview
The Overland Solar Bugout 130 is a ~130W folding solar charger that trades glass for a 1050D Cordura / X-Pac waterproof shell. SunPower Maxeon Gen III cells (23.7% efficiency) drive up to 7A/hr into a 12V battery, and the whole kit folds to 22 x 7.5 x 3.5 inches at 7.3 pounds.
Key features
- SunPower Maxeon Gen III monocrystalline cells, 23.7% rated efficiency
- 22V open-circuit output; up to 7A/hr into a 12V battery in good sun
- 1050D Cordura / X-Pac waterproof fabric with double-stitched lashing points and grommets
- Mini Anderson output with an included 20-foot cable to SB50 Anderson plus an SB50-to-SAE adapter
- Optional MPPT 10A charge controller bundle and optional Dual USB-C accessory
- 7.3 lb; folds to 22 x 7.5 x 3.5 inches, opens to 22 x 68 inches
Use cases

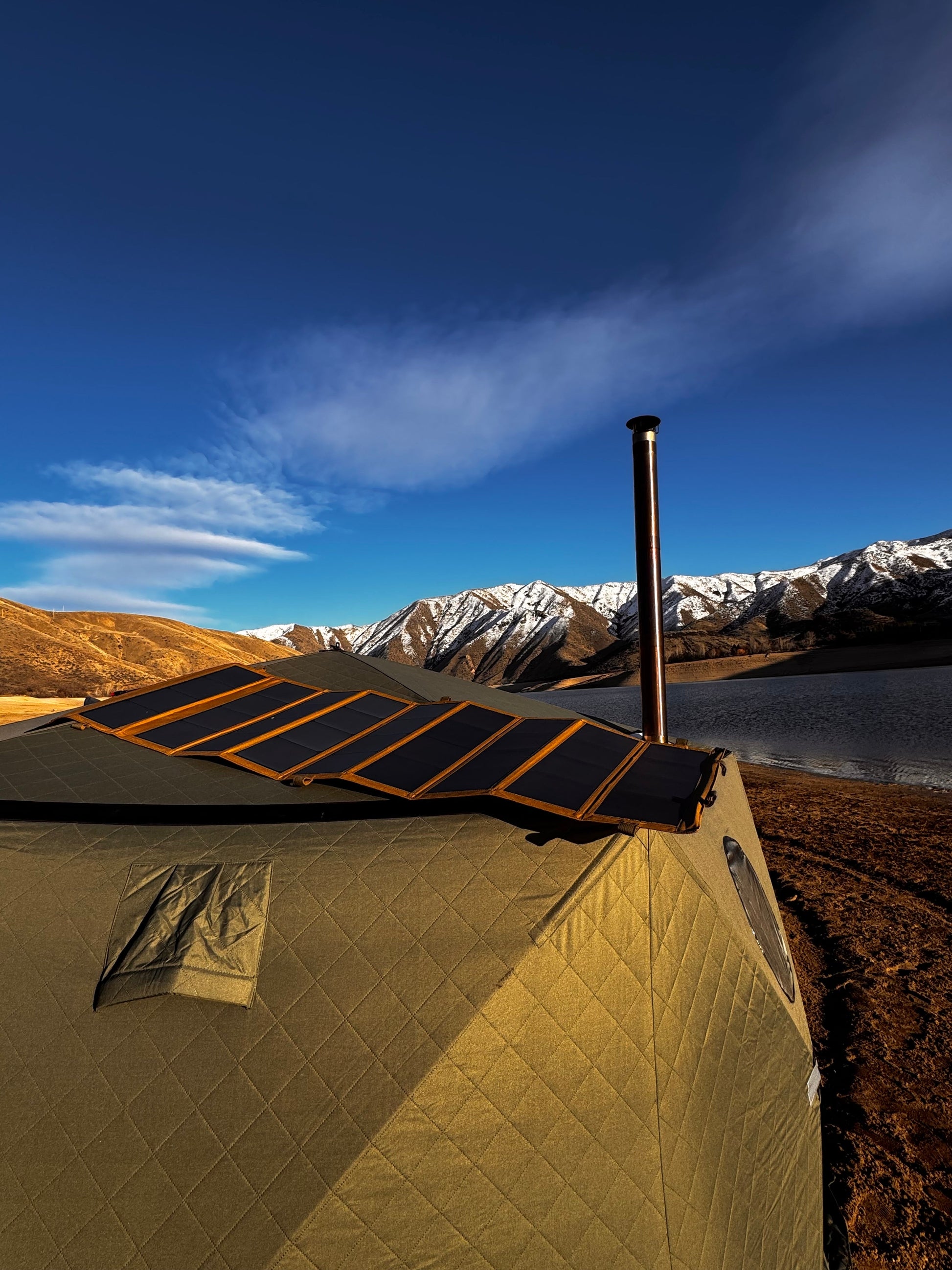

Built for vehicle-based and small-camper power: lash it to a roof rack to trickle the house battery on multi-day trips, recharge a portable battery box like the Dometic PLB40 at camp, or run field-expedient power at a remote base camp where a glass panel would be too fragile to haul.
- Rated output: ~130W folding array
- Cell type: SunPower Maxeon Gen III monocrystalline
- Cell efficiency: 23.7%
- Open-circuit voltage: 22V
- Charge current: up to 7A/hr into a 12V battery
- Material: 1050D Cordura / X-Pac waterproof fabric
- Dimensions (closed): 22 x 7.5 x 3.5 in
- Dimensions (open): 22 x 68 in
- Weight: 7.3 lb
- Output connector: Mini Anderson
- Included cable: 20 ft Mini Anderson to SB50 Anderson, plus SB50-to-SAE adapter
- Optional charge controller: MPPT 10A bundle (charges any 12V battery)
- Optional device charging: Dual USB-C accessory
- Made in: Boise, Idaho, USA
- Warranty: 2 years (up to 5 years)
Do I need the charge controller, or can I plug it straight into a battery?
The panel outputs 22V open-circuit, so it needs a charge controller before it touches a 12V battery. Add the MPPT 10A bundle and you can charge any 12V battery directly. You can skip it only if you already run a controller, such as a power station or a camper solar input with a built-in regulator.
Will it charge a portable power station or battery box directly?
Yes. The 20-foot cable ends in an SB50 Anderson plug plus an SB50-to-SAE adapter, which plugs into common solar inputs like the Dometic PLB40 and most camper SAE solar ports. Stations with their own MPPT input handle the 22V directly; otherwise run it through the controller bundle.
How much power does it make in cloudy or wet weather?
Up to 7A/hr into a 12V battery in good sun. The SunPower Maxeon Gen III cells still produce in overcast, rain, and snow, just at a reduced rate. Angle the panel at the sun and keep the face clean for the best output.
How tough is the fabric, and will it survive riding loose in the rig?
The shell is 1050D Cordura / X-Pac waterproof fabric with double-stitched lashing points and grommets. It folds to 22 x 7.5 x 3.5 inches and is built to ride loose in a truck bed or lash to a roof rack instead of cracking like a glass panel.
Can I charge phones and tablets without a battery?
Not with the base kit, which is a battery charger rather than a USB pack. Add the Dual USB-C accessory variant to charge devices straight off the panel with no battery in the loop.
Is this a generator or a power station?
No. It is a solar panel that charges a battery. It does not store power on its own, so pair it with a 12V battery, a battery box, or a power station.
