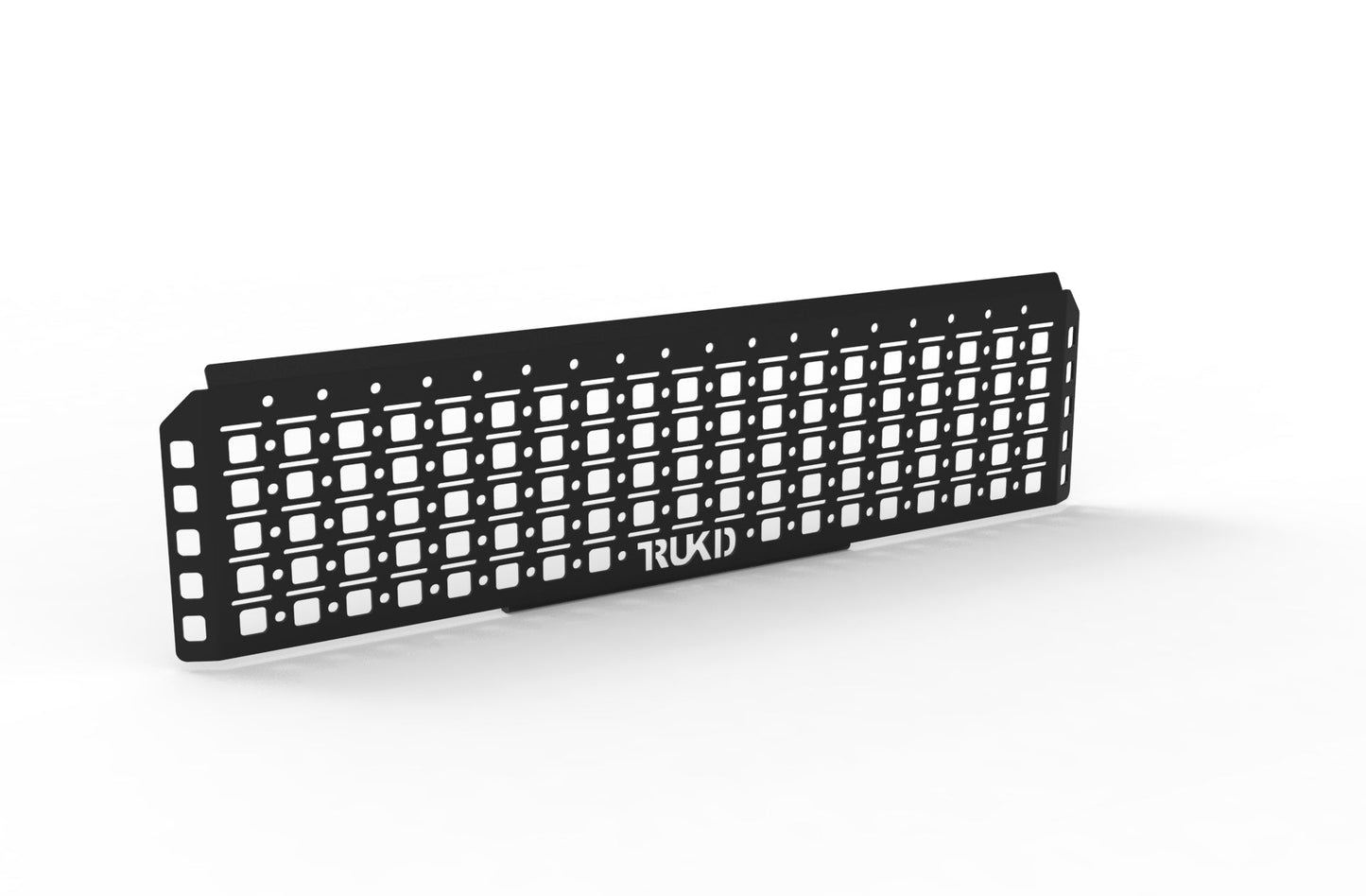

TRUKD V2 12.5" Accessory Panel
TRUKD V2 12.5" Accessory Panel
The TRUKD V2 12.5" Accessory Panel is a 3/16" aluminum panel that spans bar to bar on any TRUKD V2 or T Series rack equipped with 12-inch brackets. Bolts directly onto the brackets by removing the stock faceplates — no drilling required. Available in 52" (ships in stock) or 64" (made-to-order, 4–6 week lead time). Adjusts 2.5" in either direction along the bracket. Textured black powder coat. Made in Pittsburgh, PA.
Compatible with TRUKD 12", 18", and 24" rack heights; on 18" and 24" racks, position the panel at the top of the brackets. The ¼-20 hole pattern accepts QuickFist clamps, TRUKD traction board mounts, hi-lift jack mounts, and RotopaX fuel and water cans — plus anything that uses a ¼-20 bolt, ½" bolt, or wide washer clamp. RotopaX requires a backer plate: TRUKD's 2" hole spacing is incompatible with the standard RotopaX bolt circle. Not compatible with V1 TRUKD racks.
Available in 2-pack for both the 52" and 64" lengths — outfit both sides of the rack in one order. Powder coat applied after fabrication may partially fill the ¼-20 holes; run a ¼-20 tap through each hole before first install. 64" panels are made-to-order — allow 4–6 weeks from order date.
No se pudo cargar la disponibilidad de retiro
Overview
TRUKD's widest V2 accessory panel — 12.5" of gear-mounting surface per side. Works on 12", 18", and 24" TRUKD rack heights, and is the only V2 panel offered in a 2-pack.
Key features
- 12.5" panel width — maximum gear mounting surface in the V2 panel lineup
- 2.5" adjustment range each direction for crossbar location flexibility
- Compatible with TRUKD 12", 18", and 24" rack heights (position at top of brackets on taller racks)
- ¼-20 hole pattern accepts Rotopax, QuickFist, traction board mounts, high-lift jack mounts, and more
- 2-pack option available in both 52" and 64" lengths — equip both sides in one order
Use cases
The 12.5" V2 panel is for full gear wall setups — Rotopax on one side, QuickFist tool clamps on the other, traction boards across the top. The 2-pack is the efficient way to build both sides at once on any 12", 18", or 24" TRUKD V2 rack without placing two separate orders.
- Panel Width: 12.5"
- Available Lengths: 52" (single or 2-pack), 64" (single or 2-pack; made-to-order)
- Adjustment: 2.5" in each direction
- Material: 3/16" aluminum
- Finish: Textured black powder coat
- Rack Height Compatibility: TRUKD 12", 18", and 24" V2 rack heights
- Bracket Requirement: TRUKD 12-inch V2 brackets (replaces stock faceplates)
- Hole Pattern: ¼-20 (may require pre-tapping after powder coat)
- Rotopax Note: Requires backer plate or adapter — TRUKD 2" hole spacing incompatible with Rotopax default mounting
- 64" Lead Time: Made-to-order, 4–6 weeks
- Manufactured: Pittsburgh, PA, USA
- Origin: Made in USA
What rack heights work with the V2 12.5" panel?
Compatible with TRUKD 12", 18", and 24" V2 rack heights. On taller racks, position the panel at the top of the brackets.
What's the 2-pack option?
The 2-pack includes two identical panels (both 52" or both 64") for one panel per side of the bed rack. It's available for both lengths and is the simplest way to outfit both sides in a single order.
What's the difference between the 52" and 64" lengths?
The 52" panel spans a standard crossbar setup. The 64" panel is longer and made-to-order — allow 4 to 6 weeks from order date.
Why does Rotopax need a backer plate?
TRUKD panels use 2" hole spacing. Rotopax requires different geometry to mount correctly. A backer plate or Rotopax adapter bridges the difference — source one from TRUKD's accessories section before ordering Rotopax.
Do the holes come pre-threaded for ¼-20 bolts?
Panels are powder-coated after fabrication, which can partially fill the holes. You may need to run a ¼-20 tap through each hole before mounting accessories. Check all holes before installing.
Can I use this panel on a V1 TRUKD rack?
No. V2 accessory panels require V2 brackets and are not compatible with V1 TRUKD hardware.
