The Double Decker is TRUKD's maximum-capacity T Series configuration — 24.5" uprights, two full levels of mounting space, built in Pittsburgh from 10-gauge 304 stainless steel and aerospace-grade aluminum.
Upper tier is sized for a rooftop tent and awning. Lower tier handles the rest: hard cases, water jerry cans, Rotopax fuel cells, camp tables and chairs. Both levels run on the same T-slot extrusion channels, so traction boards, MOLLE accessories, and antenna mounts integrate with the same hardware. You're not bolting a rack to your truck — you're adding a modular platform that evolves as your kit does.
Load ratings: 300 lb/set (150 lb/bar) driving, 1,000 lb total (500 lb/bar) parked. The uprights are welded steel; the bars won't flex with an RTT at 70 mph. Install is about 3.5 hours with SAE hand tools only — no power tools, no metric. Step 7 (lifting the assembled rack onto the bed) benefits from a second set of hands. Backed by TRUKD's lifetime guarantee.
T-Slot variant works with retractable tonneau covers only (Retrax, Roll'n'Lock — max width 69.75"). If you run a BakFlip or other tri-fold, choose Utility Rails or Bed Clamps.
No se pudo cargar la disponibilidad de retiro
Overview

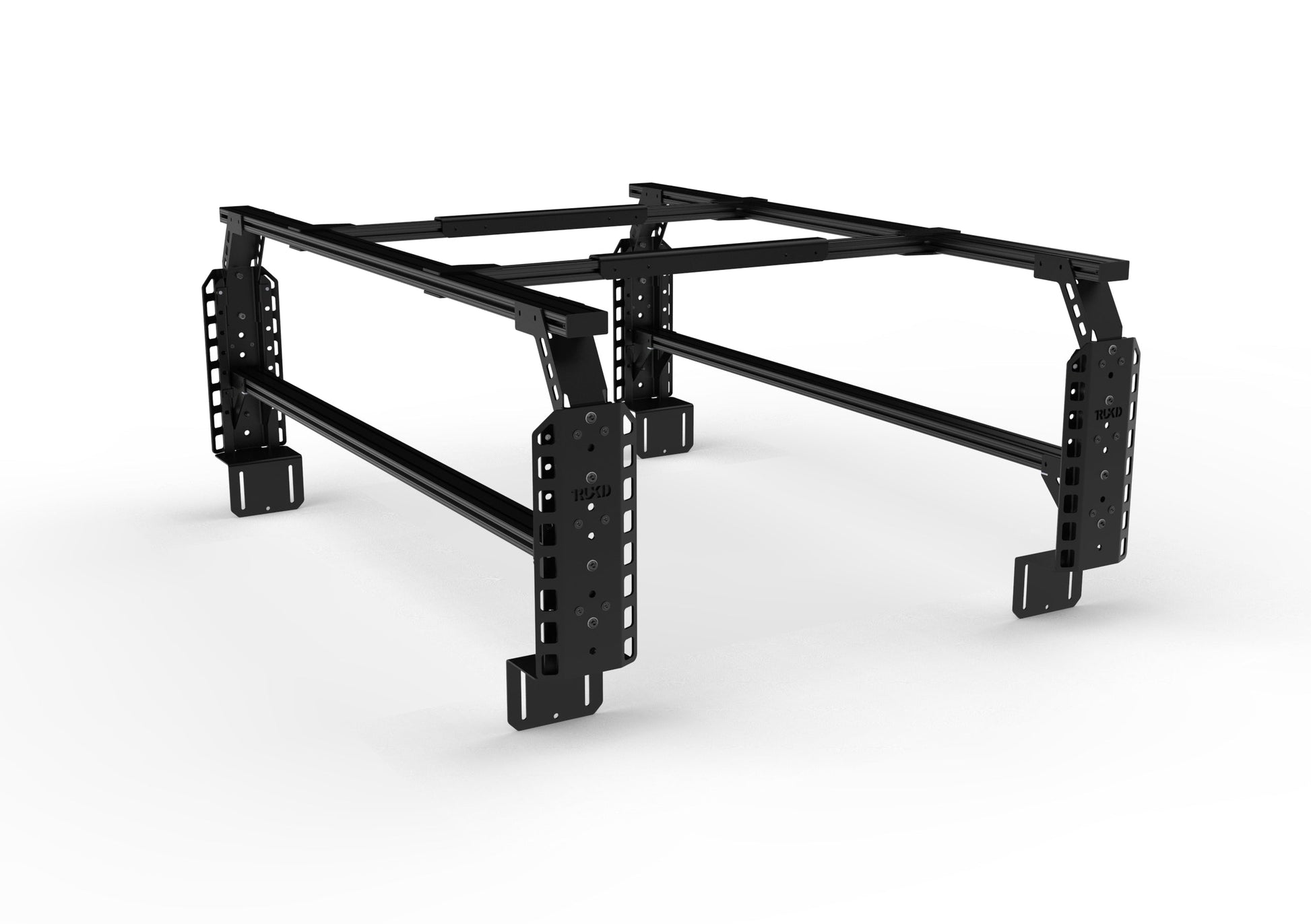

Two-level truck bed rack built around 24.5" T Series uprights — upper deck for an RTT and awning, lower deck for hard cases, fuel cells, and camp gear. 10-gauge 304 stainless uprights and aerospace aluminum crossbars, textured black powder coat, made in Pittsburgh, PA. Fits 13 truck models across three mount options.
Key features
- Two independent decks — 24.5" uprights (18" base + 6" risers) create an upper tier for RTTs and awnings, and a lower tier for storage. Both run on T-slot aluminum extrusion channels.
- 304 stainless uprights — 10-gauge, e-coated, never rust. Aerospace aluminum crossbars won't corrode or fatigue from road vibration.
- 300 lb driving / 1,000 lb parked — 150 lb per bar dynamic, 500 lb per bar static. Designed for loaded RTT setups at highway speed.
- Three mount options — Utility Rails (stake pockets), T-Slot Tonneau Cover (retractable covers only), or Bed Clamps — depending on your truck and existing bed setup.
- 13 truck fitments — Toyota Tacoma and Tundra, Jeep Gladiator, Nissan Frontier and Titan, Ford F-150/250/350, Maverick, and Ranger, Chevy Colorado/GMC Canyon, Silverado/GMC Sierra, and RAM Classic/Tapered Bed.
- Lifetime guarantee — TRUKD backs the T Series against product integrity defects.
- Made in Pittsburgh, PA — Designed, welded, and assembled in the USA.
Use cases
Double Decker owners are running RTT + awning on the upper tier with a full lower deck of Pelican cases and fuel for remote trips. The T-Slot variant lets you keep a retractable tonneau cover fully functional beneath the rack — bed security for the daily, roof platform for the weekend. The T-slot extrusion channels on every bar accept MOLLE hardware, Rotopax mounts, antenna brackets, and more without drilling.
- Upright height: 24.5" total (18" base uprights + 6" riser attachments)
- Crossbars: 4 total (2 main upper + 2 lower-deck with brackets)
- Load — driving: 300 lb/set, 150 lb per bar
- Load — parked: 1,000 lb total, 500 lb per bar
- Upright material: 10-gauge 304 stainless steel (e-coated)
- Crossbar material: Aerospace-grade aluminum extrusion (8020 T-slot profile)
- Finish: Textured black powder coat
- Max tonneau width (T-Slot): 69.75"
- Torque limit: 15 ft-lbs (bracket bolts — do not exceed)
- Estimated install time: ~3.5 hours
- Tools required: Measuring tape, Hex Driver 5/32, Hex Driver 7/32, 9/16" socket wrench, 1/2" socket wrench (SAE only — no metric, no power tools)
- Warranty: Lifetime (product integrity)
- Made in: Pittsburgh, PA, USA
- Weight: ~74–76 lb (varies by variant)
- Includes: 4 upright brackets, 4 riser brackets, 4 faceplates, 2 crossbars, 2 front-to-back extrusions, 4 front-to-back connector brackets, plus all hardware (Bags 1, 2B, 3, 4B). Mount-specific hardware (Utility Rail T-nuts, Bed Clamps, or T-Slot plates) included per variant selection.
Which tonneau covers work with the T-Slot mount?
Retractable covers only — Retrax and Roll'n'Lock are the confirmed compatible brands. The T-Slot mount slides into the cover's existing channel, so the tonneau stays fully functional under the rack. Maximum tonneau width: 69.75".
Tri-fold and hard-folding covers (BakFlip, Extang, UnderCover Flex, etc.) are not compatible with T-Slot. If you have one of those, select Utility Rails (stake-pocket mount) or Bed Clamps instead.
What's the difference between Utility Rails, T-Slot, and Bed Clamps?
Utility Rails use your truck's factory bed rail stake pockets — clean install, no drilling, and the rack sits above any existing bed liner. Available on: Toyota Tacoma, Toyota Tundra, Jeep Gladiator, Nissan Frontier, Nissan Titan.
T-Slot Tonneau Cover mounts into the T-slot channels of a retractable tonneau, keeping it operational beneath the rack. Available on all 13 fitments.
Bed Clamps clamp directly to the top of the bed walls — good if you don't have stake pockets and don't run a retractable tonneau. Available on most fitments except Toyota Tacoma.
How's highway stability with a rooftop tent — any bounce or flex?
The T Series uprights are 10-gauge welded stainless; the system doesn't flex the way thinner tube racks can. Rated 300 lb/set driving, 150 lb per bar, so a typical 100–150 lb RTT is well within spec on one bar. Dynamic flex is more commonly a function of the RTT's profile (a tall, soft-sided tent acts like a sail) than the rack itself. Don't exceed 150 lb per bar at speed and you're in spec.
How hard is the install? Can I do it myself?
Plan for about 3.5 hours. You'll need SAE hand tools only — Hex Drivers 5/32 and 7/32, a 9/16" and 1/2" socket wrench, and a tape measure. No power tools and no metric tools — the install guide is explicit on both. No drilling into the truck.
Step 7 (lifting the assembled rack onto the bed as a single unit) is doable solo but TRUKD recommends a second set of hands to avoid damage to the rack or personal injury. Plan for that. If you're running T-Slot, you'll also likely need to pull the tonneau cover off to mount the brackets, then reinstall it.
What's included in the box?
4 upright brackets, 4 riser brackets (the 6" extensions that bring total height to 24.5"), 4 faceplates, 2 crossbars, 2 front-to-back extrusions, 4 front-to-back connector brackets, bar end caps, and all hardware bags (3/8-16 bolts, 1/4-20 screws, shoulder washers, carriage bolts, lock nuts). Mount-specific hardware — Utility Rail T-nuts, Bed Clamps, or T-Slot plates — is included per your variant selection. RTT and awning sold separately. Premium bar end caps are sold separately.
What's the warranty?
TRUKD backs the T Series with a lifetime guarantee against product integrity defects.
How does the Double Decker compare to the standard T Series configurations?
The standard T Series comes in 6.5"–18.5" upright heights — single-level platforms. The Double Decker uses 24.5" uprights (18" base + 6" riser) and adds a dedicated second deck with its own crossbars and mounting brackets. If you're running one RTT and don't need substantial lower-tier storage, the 12.5" or 18.5" T Series is lighter and sits lower. If you want two fully independent loading levels — RTT up top, full gear rack below — the Double Decker is the configuration.
Does it fit my truck?
13 fitments are currently available: Toyota Tacoma, Toyota Tundra, Jeep Gladiator, Nissan Frontier, Nissan Titan, Ford F-150/250/350, Ford Maverick, Ford Ranger, Chevy Colorado/GMC Canyon, Chevy Silverado/GMC Sierra, and RAM Classic/Tapered Bed. Select your truck and mount type in the variant dropdown. Note: Toyota Tacoma does not offer the Bed Clamps option; Ford, Chevy, and RAM trucks do not offer Utility Rails.
