RinseKit Rack Shower Adapter Brackets
RinseKit Rack Shower Adapter Brackets
The RinseKit Rack Shower Adapter Brackets are the bed-rail mount for the RinseKit 5 Gallon Rack Shower. You get a matched pair of steel brackets in a black powder-coat finish, plus every fastener needed to lock the 43-inch shower to a rail instead of leaving it loose in the cargo area. Pre-cut mounting holes line up with the shower, so the build is bolt-on, not cut-and-fit.
The kit clamps to any standard T-channel or extrusion rail. Two hardware sets ship in the box: a universal T-channel nut-and-bolt set for aftermarket rails and a Toyota-specific T-channel set sized for the factory Toyota Bed Rail. Two stabilizer feet bear against the rail to kill rattle on a long mount, and two adapter plates tie the brackets to the shower body. The whole kit weighs about 4 lbs and ships flat.
Note the obvious part: this is the mount only. The RinseKit 5 Gallon Rack Shower is sold separately. There is also a separate roof-rack adapter bracket if you are mounting to crossbars instead of a bed rail — this SKU is the bed-rail / T-channel version.
No se pudo cargar la disponibilidad de retiro
Overview
A two-piece steel bracket kit that mounts the RinseKit 5 Gallon Rack Shower to a truck bed rail, van cargo rail, or any T-channel extrusion. Ships with all hardware; the shower is sold separately.
Key features

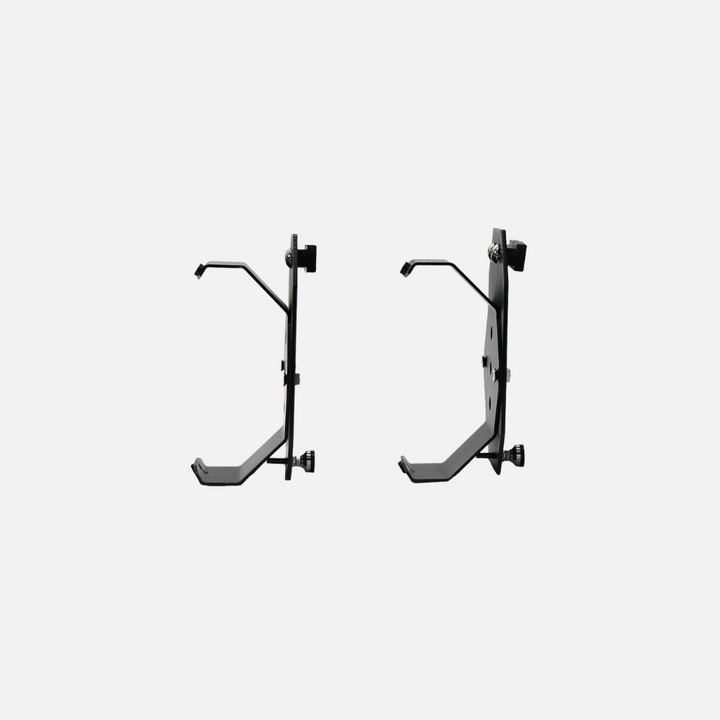

- Matched left/right bracket pair, steel with a black powder-coat finish.
- Fits any standard T-channel or extrusion rail; includes a universal T-channel nut-and-bolt set.
- Toyota Bed Rail-specific T-channel nut-and-bolt set included for the factory Toyota system.
- Two stabilizer feet bear against the rail to stop rattle on washboard.
- Two adapter plates and pre-cut mounting holes for a bolt-on install — no drilling the brackets.
Use cases

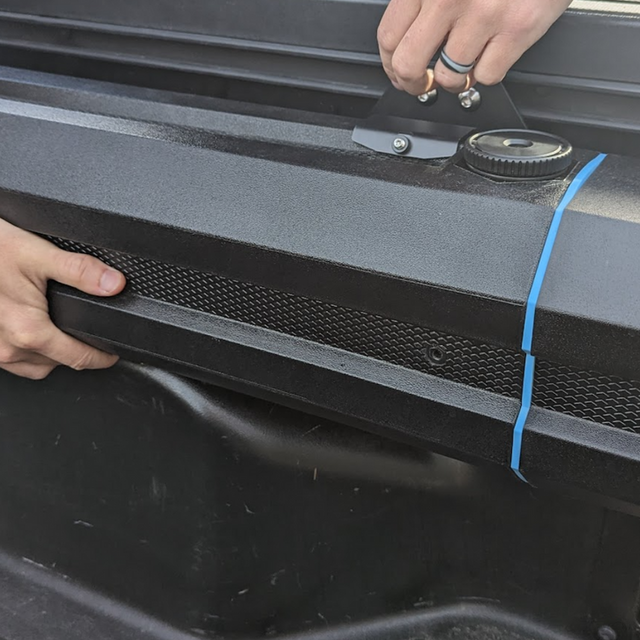

Built for fixed mounts: a truck-bed overland build that keeps the 43-inch Rack Shower off the cargo floor and at standing height, or a van cargo-wall T-channel mount that turns the shower into a permanent wash station. Anywhere you have a rail and want the shower outside the gear pile, these brackets put it there.
- Sold as: matched pair (1 left, 1 right)
- Bracket material: steel, black powder-coat finish
- Hardware material: stainless steel T-bolts and nuts
- Mounts to: any standard T-channel / extrusion rail; Toyota Bed Rail
- Fits: RinseKit 5 Gallon Rack Shower (sold separately)

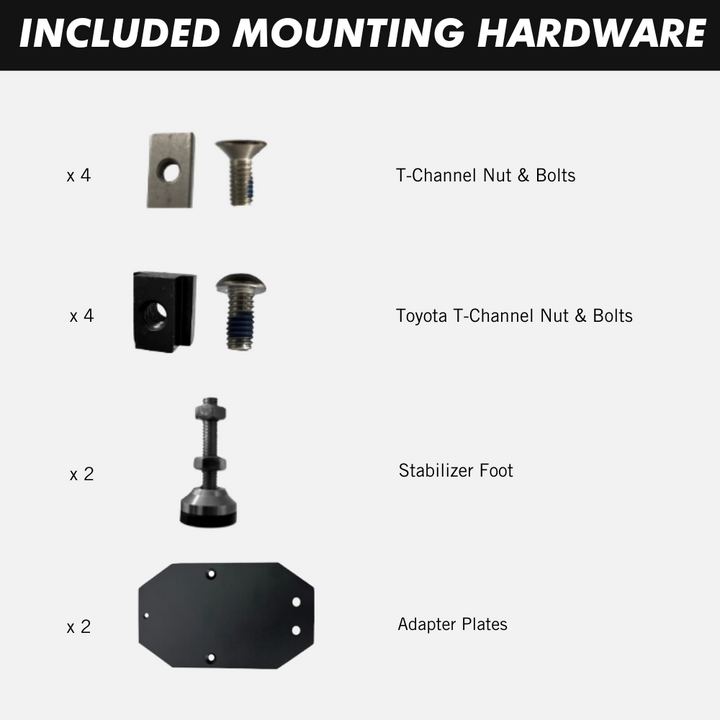

- Included: 4× T-channel nut & bolt, 4× Toyota T-channel nut & bolt, 2× stabilizer feet, 2× adapter plates
- Ship weight: 4.0 lbs (1814 g)
- Ship dimensions: 9 L × 5 W × 1 H in
- Warranty: 1-year limited

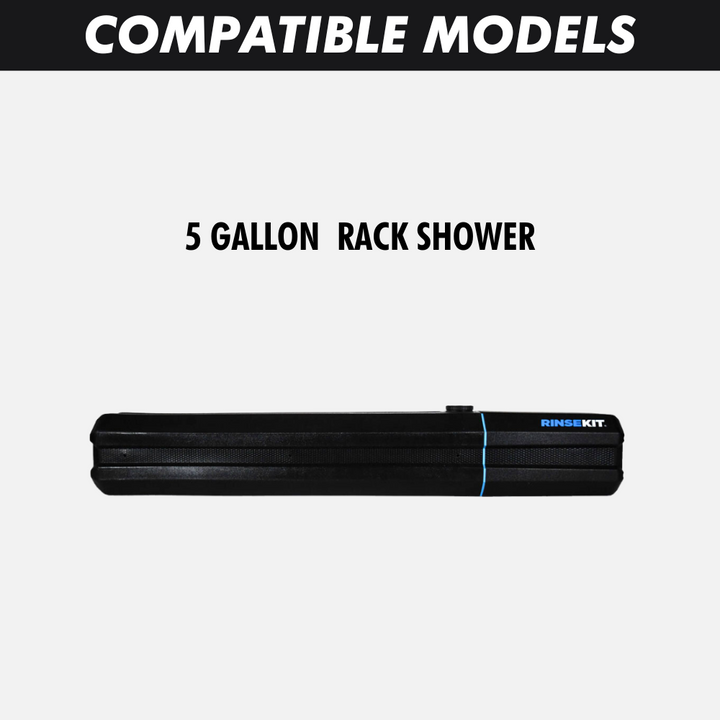

Which RinseKit shower do these brackets fit?
They are made for the RinseKit 5 Gallon Rack Shower. They are the mount, not the shower itself — the Rack Shower is sold separately.
What does this attach to on my rig?
Any standard T-channel or extrusion rail: a truck bed rail, van cargo rail, or aftermarket rail with a T-slot. A universal T-channel nut-and-bolt set is included, plus a separate Toyota Bed Rail T-bolt set for the factory Toyota system. If you are mounting to roof-rack crossbars instead, RinseKit sells a separate roof-rack adapter bracket.
Don't reuse the universal T-bolts on a Toyota Bed Rail — what gives?
The two bolt kits are not interchangeable. The Toyota Bed Rail uses a different slot, so use the Toyota-specific T-channel set that ships in the box, or the bolt will not seat. Match the bolt to the rail and the mount stays solid.
Do I need to re-torque the hardware after installing?
Yes — vibration can back T-nuts off over the first few trips. Wipe the steel brackets down and re-check the T-nut torque after your first couple of outings, then spot-check it as part of normal gear maintenance.
