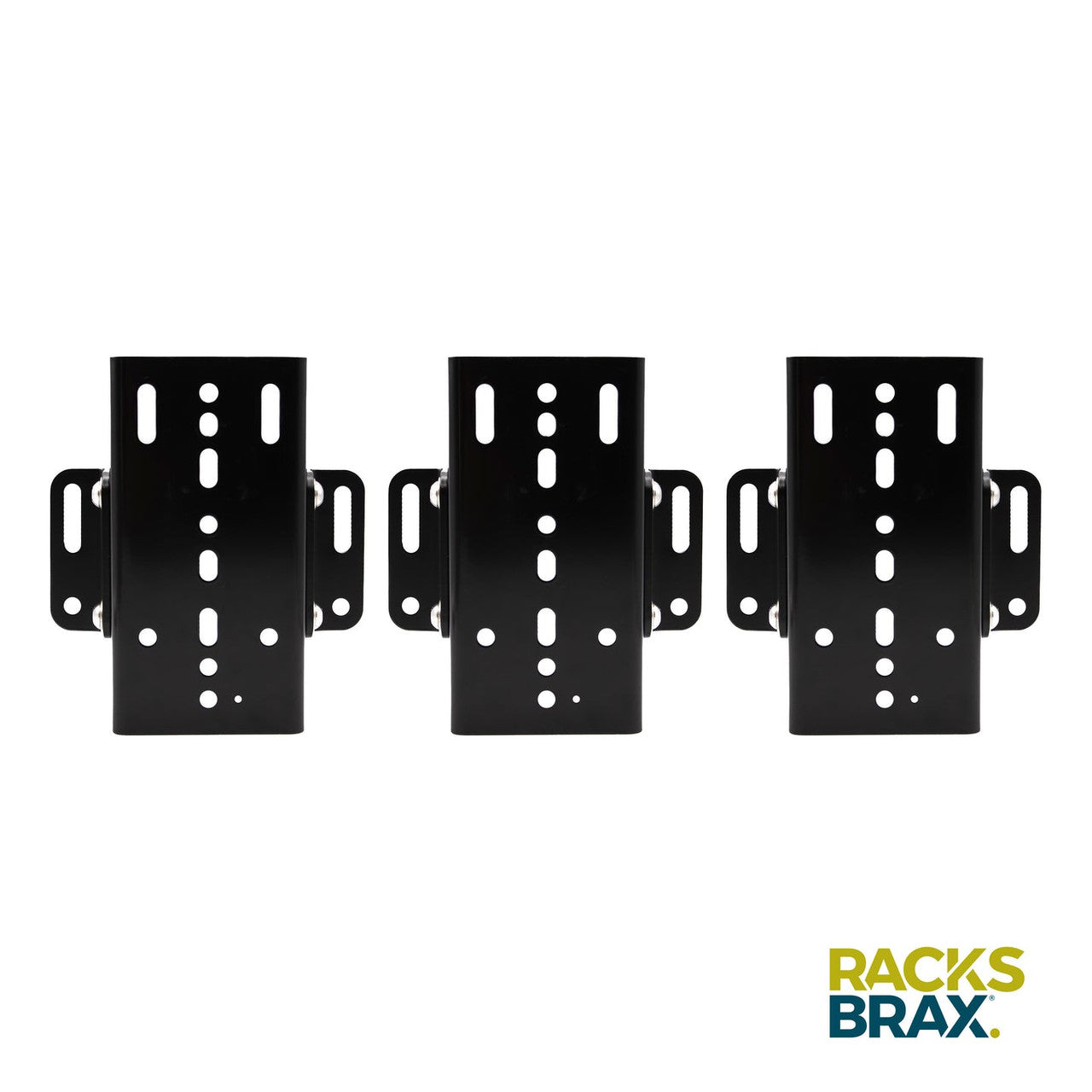

RacksBrax XD RTT Adjustable Awning Brackets, Triple
RacksBrax XD RTT Adjustable Awning Brackets, Triple
The RacksBrax XD RTT Adjustable Awning Brackets (Triple) is a three-bracket set that mounts an awning to the side channel of a rooftop tent. The brackets are stainless steel with a black powder coat finish, and each one is rated to carry 44 lb (20 kg). They fit RTT side channels spaced 33 to 60 mm (1.3 to 2.36 in) center-to-center, and each bracket is height adjustable so you can line the awning up where you want it.
A triple set exists for a reason. An awning will often bolt up on two brackets, but a heavier awning, or a tent with a conservative per-position load limit, needs a third bracket to spread the weight so no single mounting point carries too much. The bracket's 44 lb rating is the ceiling for the hardware, not for your tent. The tent manufacturer's permitted load per mounting position always governs, so check that number first.
The set ships with stainless steel fasteners for bracket assembly. The M8 fasteners that attach the brackets to your tent's channels are not included. Source those to match your RTT model. These brackets are built to pair with the RacksBrax XD Hitch (Triple) 9001, a quick-release hitch sold separately that lets you pop the awning off the tent in seconds for storage or to drop drag on a long highway leg.
No se pudo cargar la disponibilidad de retiro
Overview
A three-bracket kit for hanging an awning off the side channel of a rooftop tent. Stainless steel, black powder coat, height adjustable, 44 lb per bracket. The triple count spreads a heavier awning's load across more mounting points.
Key features
- Three brackets per set, stainless steel with black powder coat finish
- 44 lb (20 kg) rated load per bracket
- Fits RTT side channels 33-60 mm (1.3-2.36 in) center-to-center
- Height adjustable to position the awning where you want it
- Stainless assembly fasteners included
- Designed to pair with the RacksBrax XD Hitch (Triple) 9001 quick-release hitch (sold separately)
Use cases
Mount an awning alongside a rooftop tent so both share one rack footprint. The triple configuration suits heavier awnings, or tents with a lower permitted load per mounting position, where two brackets would put too much weight on any single point. Paired with the matching XD quick-release hitch, the awning lifts off in seconds for out-of-weather storage or to cut highway drag.
- Brackets in set: 3
- Material: Stainless steel
- Finish: Black powder coat
- Load rating: 44 lb (20 kg) per bracket
- Channel spacing: 33-60 mm (1.3-2.36 in) center-to-center
- Adjustment: Height adjustable
- Assembly fasteners: Stainless steel, included
- RTT-mount fasteners: M8, not included (source to match RTT)
- Compatible hitch: RacksBrax XD Hitch (Triple) 9001, sold separately
- Part number: RBUS9109
- Shipping weight: 4990 g
Does this set include the quick-release hitch?
No. You get three brackets plus the stainless steel hardware to assemble them. The matching RacksBrax XD Hitch (Triple) 9001 is the quick-release piece, and it's sold separately.
Why three brackets instead of two?
Plenty of awnings bolt up fine on two. A heavier awning, or a rooftop tent with a conservative per-position load limit, is where the third bracket earns its place. It spreads the weight so no single mounting point carries more than the tent can handle.
Will these fit my rooftop tent?
They fit RTTs with side channels spaced 33 to 60 mm (1.3 to 2.36 in) center-to-center. Measure your tent's channels before you buy. The brackets clamp to those channels, so the spacing has to land in that range.
What fasteners do I need to supply?
The assembly hardware is in the box. You supply the M8 fasteners that bolt the brackets to your tent's channels, matched to your specific RTT model, since channel hardware varies by brand.
How much weight can each bracket hold?
Each bracket is rated for 44 lb (20 kg). That's the hardware ceiling. Your tent's own per-position load limit may be lower, and that number always wins. Check the tent manufacturer's spec before loading an awning.
