RacksBrax XD RTT Adjustable Awning Brackets (Double)
RacksBrax XD RTT Adjustable Awning Brackets (Double)

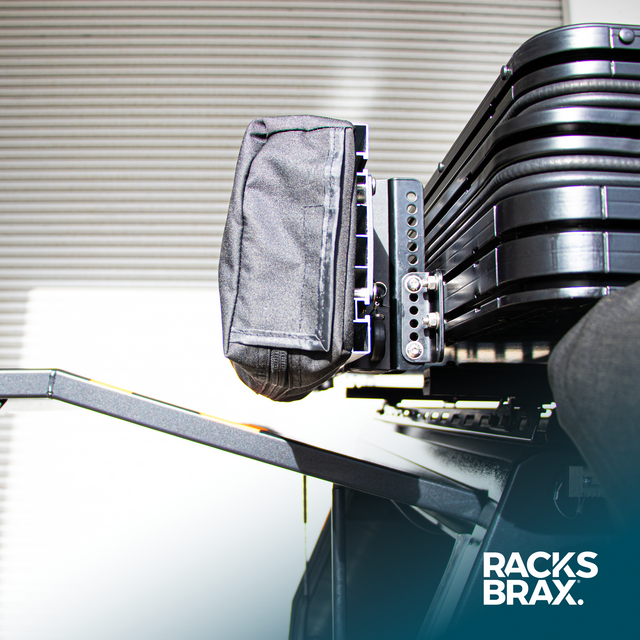

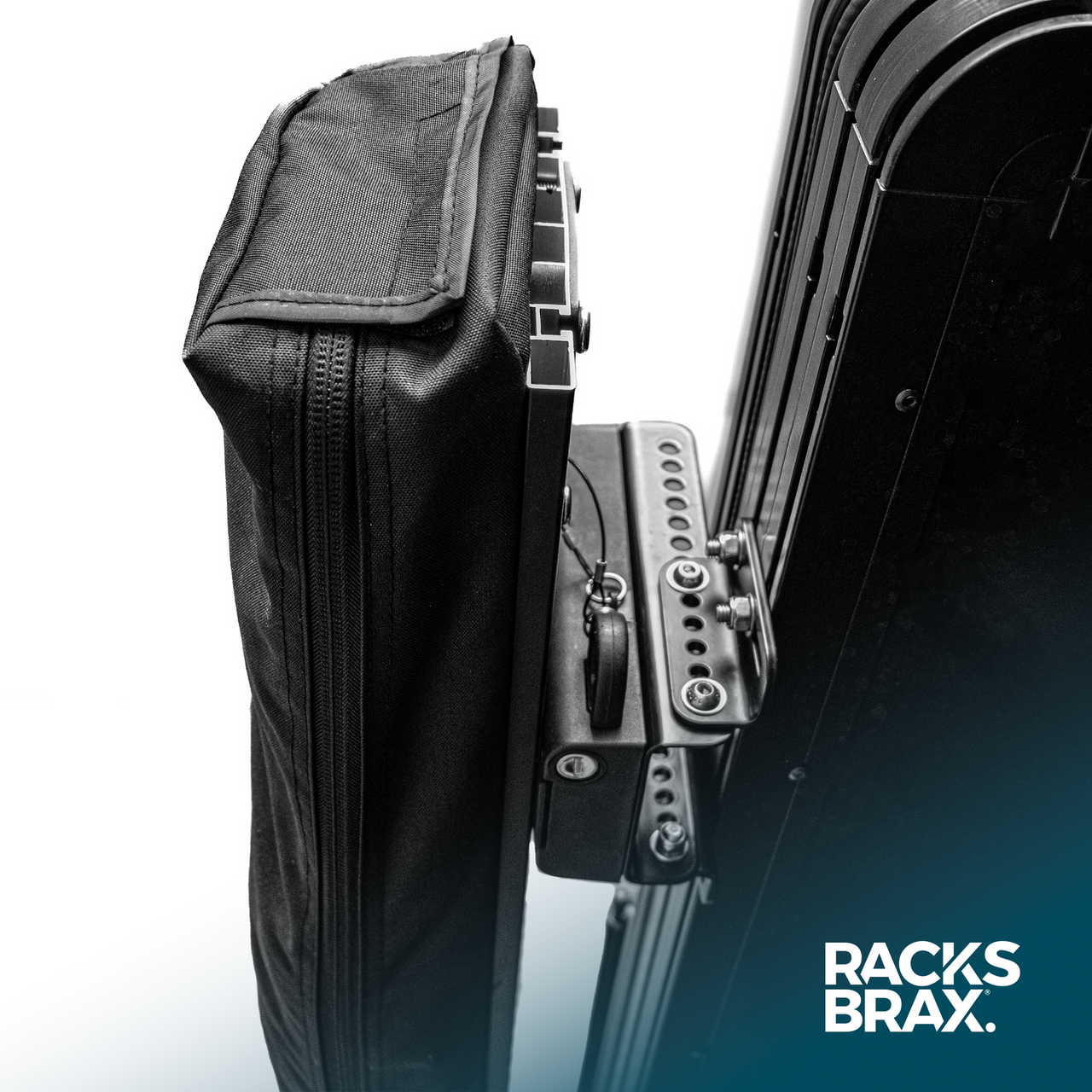

The XD RTT Adjustable Awning Brackets are a set of two stainless steel brackets that mount a side awning to the channels on a roof top tent instead of to your roof rack. Each bracket is rated for 44 lb (20 kg), so the pair carries up to 88 lb across two load points. They bolt into RTT side channels spaced 33-60 mm (1.3 to 2.36 inches) center-to-center using M8 hardware, and the uprights are height-adjustable so you can level the awning rail to your setup.
The double set is built for lighter awnings: compact 180 degree wing awnings and shorter spans where two load points are enough. Heavier 270 and 360 degree awnings, or full-size wings, generally want the triple set for a third point. Whatever you run, the awning maker's mounting spec and the tent's per-position load limit are the real ceiling, not the bracket's 44 lb rating.
These brackets pair with the RacksBrax XD Hitch (Double) 9000, the quick-release piece that lets the whole awning lift off in seconds for out-of-weather storage or to cut wind drag and fuel use when the awning is parked. Stainless assembly hardware is in the box. The M8 fasteners that thread into your RTT channels are not included; source them to match your tent, since channel hardware varies by RTT model.
No se pudo cargar la disponibilidad de retiro
Overview
A two-bracket stainless steel kit that hangs a side awning off a roof top tent's own channels, freeing up your rack. Each bracket holds 44 lb (20 kg), the uprights adjust for height, and the set is sized to pair with the RacksBrax XD Hitch (Double) 9000 quick-release.
Key features
- Set of two brackets, 44 lb (20 kg) rated per bracket, 88 lb across both points
- Stainless steel construction with a black powder coat finish
- Fits RTT side channels spaced 33-60 mm (1.3 to 2.36 inches) center-to-center
- Height-adjustable uprights to level the awning rail

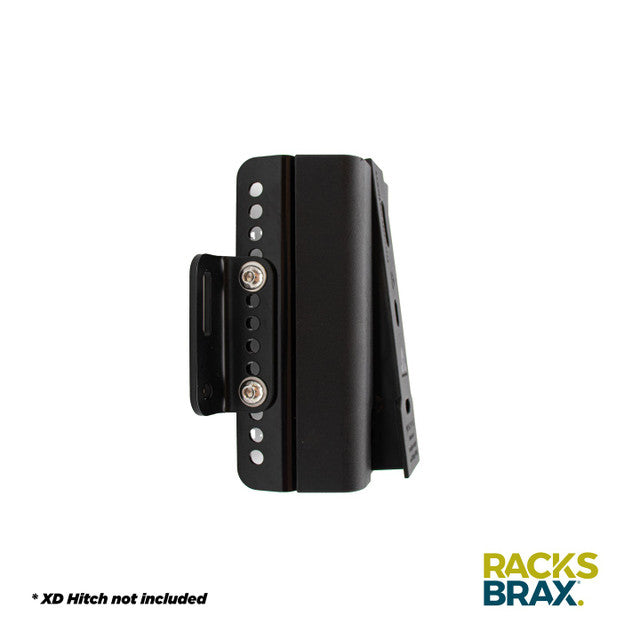

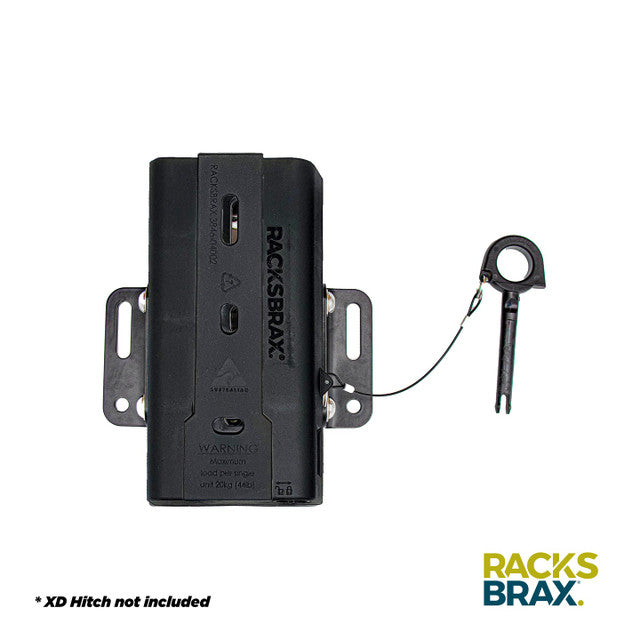

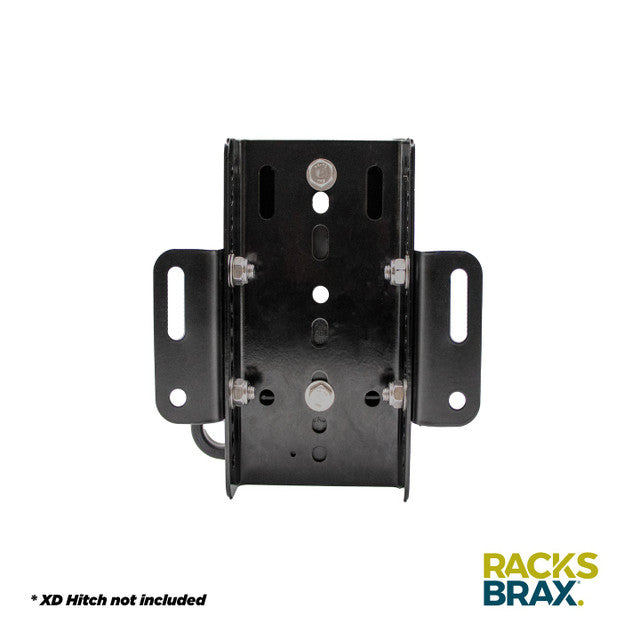

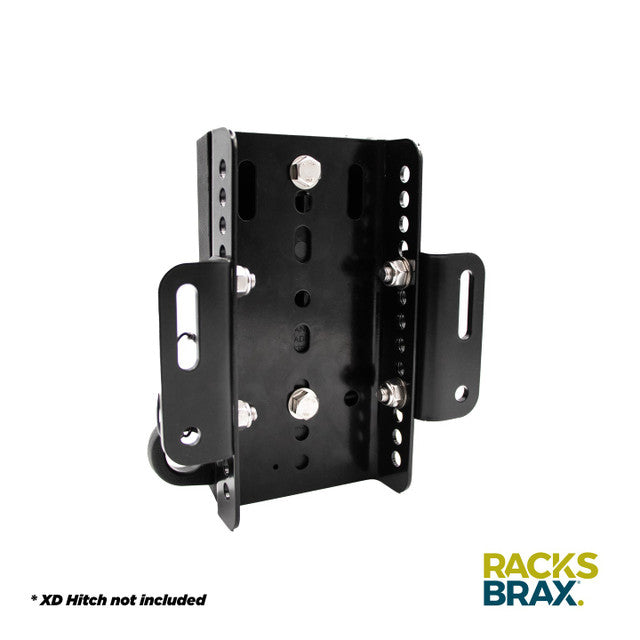

- Pairs with the RacksBrax XD Hitch (Double) 9000 for seconds-fast awning removal
- Stainless assembly hardware included; M8 RTT-channel fasteners not included
Use cases
Best for mounting a lighter side awning, like a compact 180 degree wing, to a hard- or soft-shell roof top tent without drilling into the rack. The quick-release pairing makes it easy to pull the awning for storage or to drop drag on long highway legs, then drop it back on at camp.

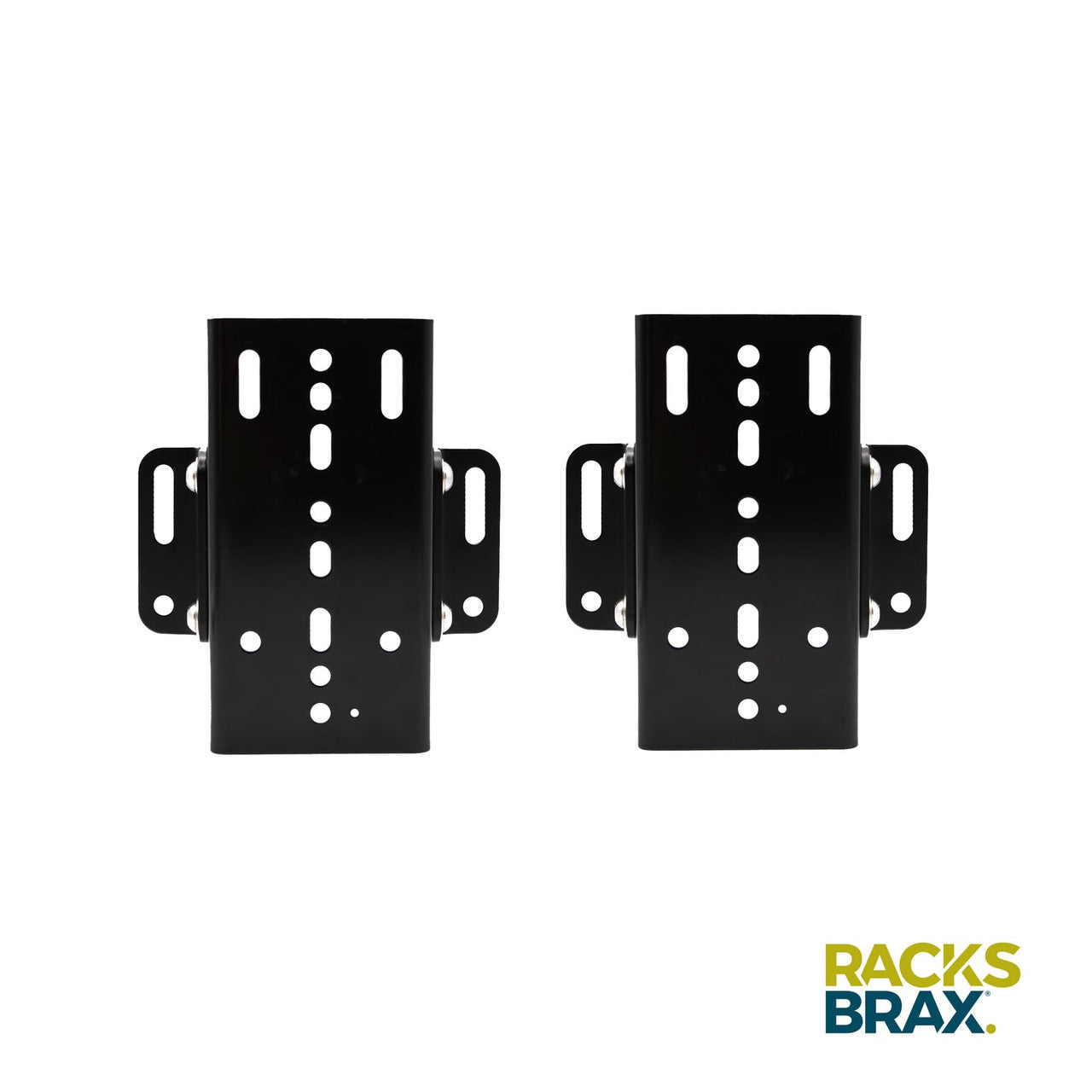

- Set contents: 2 brackets + stainless assembly hardware
- Material: Stainless steel
- Finish: Black powder coat
- Load rating: 44 lb (20 kg) per bracket; 88 lb (40 kg) total across 2 points
- Channel spacing: 33-60 mm (1.3 to 2.36 inches) center-to-center
- Adjustment: Height-adjustable uprights
- RTT-mount fasteners: M8 (not included)
- Hitch pairing: RacksBrax XD Hitch (Double) 9000
- SKU: RBUS9108
- Shipping weight: 3175 g (3.18 kg)
Do I need the double brackets or the triple?
The double set gives you two 44 lb (20 kg) load points, 88 lb total. That covers lighter awnings, like compact 180 degree wings and shorter spans. Heavier 270 and 360 degree awnings or full-size wings should step up to the triple set for a third load point. Always check the awning maker's mounting spec and your tent's per-position load limit first.
Which awnings and shower tents fit?
The brackets pair with the XD Hitch (Double) 9000 and work with most 180, 270, and 360 degree wing awnings plus some shower tents. Fit is decided by the hitch, not the bracket, so confirm your awning model is rated for the XD Hitch (Double) before buying.
Will these fit my roof top tent's channels?
They mount to RTT side channels spaced 33-60 mm (1.3 to 2.36 inches) center-to-center. Measure your tent's channel spacing before ordering. The brackets thread in with M8 hardware.
What hardware is included, and what do I need to buy?
The stainless fasteners that assemble the brackets are included. The M8 fasteners that attach the brackets into your RTT channels are not included, since channel hardware differs by tent. Source M8 hardware to match your roof top tent.
