The HD Hitch (Triple) (8182, 8183) is part of our RacksBrax HD range.
The HD Hitch (Triple) (8182) is ideal for:
- Awnings or accessories with spine track spacings between 40-52mm
- 3 mounting points (e.g. 1 vehicle + 1 awning/accessory)
- Awnings or accessories with a maximum load of 60kg (i.e. 20kg x 3 loading points)
The HD Hitch (Triple) (8182) will fit most shower tents, pull-out, and some wing awnings.
No se pudo cargar la disponibilidad de retiro
![Racksbrax HD Hitch (Triple) [R]](http://www.xgridoutfitters.com/cdn/shop/files/4_source_1681406935__36750.1710169246.png?v=1780067351&width=1445)
![Racksbrax HD Hitch (Triple) [R]](http://www.xgridoutfitters.com/cdn/shop/files/8159-retail_800x__91102.1710169246.jpg?v=1780067350&width=1445)
![Racksbrax HD Hitch (Triple) [R]](http://www.xgridoutfitters.com/cdn/shop/files/RACKSBRAX_Standard_HD_Hitch1__70141.1681406933__28929.1710169246.jpg?v=1780067350&width=1445)
![Racksbrax HD Hitch (Triple) [R]](http://www.xgridoutfitters.com/cdn/shop/files/8159_-_Exploded__front_ae45528a-97fa-4449-a566-f298181b7720_800x__33033.1710169246.jpg?v=1780067350&width=1445)
![Racksbrax HD Hitch (Triple) [R]](http://www.xgridoutfitters.com/cdn/shop/files/8159_-_Exploded__bottom_up_a42c2344-cee2-42eb-9335-5fe4a9763449_800x__96065.1710169246.jpg?v=1780067350&width=1445)
![Racksbrax HD Hitch (Triple) [R]](http://www.xgridoutfitters.com/cdn/shop/files/8159_-_Exploded__top_down_f188acd0-43b9-44a5-9359-43065fdc318b_800x__26090.1710169246.jpg?v=1780067350&width=1445)
![Racksbrax HD Hitch (Triple) [R]](http://www.xgridoutfitters.com/cdn/shop/files/RACKSBRAX_Standard_HD_Hitch2_800x__57258.1710169246.jpg?v=1780067350&width=1445)
![Racksbrax HD Hitch (Triple) [R]](http://www.xgridoutfitters.com/cdn/shop/files/RACKSBRAX_Standard_HD_Hitch1_800x__39548.1710169246.jpg?v=1780067350&width=1445)
Overview
The RacksBrax HD Hitch (Triple) mounts an awning or rack accessory at three points for quick on/off removal. It suits HD-class awnings with 40-52mm spine-track spacing and carries up to 60kg total.
Key features

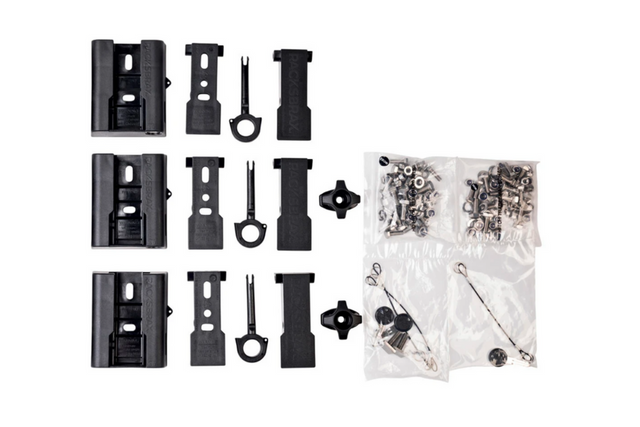

- Three UV-stabilised, glass-reinforced nylon hitches per kit
- Three mounting points; 60kg total load (20kg per point)
- Fits spine-track spacing of 40-52mm (HD class)
- Stainless steel fasteners included
- Quick-release: awning off and back on in seconds once installed
Use cases
Built for long or heavy pull-out awnings, ensuite/shower tents, and conduit tubes that need a third support point the Standard Double can't give. The third hitch keeps long awnings from sagging or twisting and holds steady on rough, corrugated tracks.
- Mounting points: 3
- Hitches per kit: 3
- Max load (total): 60kg
- Max load (per point): 20kg
- Spine-track spacing: 40-52mm (HD class)
- Hitch material: UV-stabilised, glass-reinforced nylon
- Fasteners: stainless steel, included
- Fits: pull-out awnings, shower/ensuite tents, conduit tubes, some wing awnings
- Quick-release: yes
- SKU: RBUS8182
- Ship weight: 1814 g
How is the Triple different from the HD Standard (Double)?
The Triple has three hitches and three mounting points with a 60kg total load. The Standard Double has two points and a 40kg ceiling. Both fit the same 40-52mm track. Step up to the Triple for long or heavy awnings that need a third support point.
Will it fit my awning?
It fits awnings and accessories with a spine-track spacing of 40 to 52mm — most pull-out awnings, shower tents, and some wing-style awnings. Measure your track centres first. Wider 100-120mm tracks need the XD range instead.
What is the load limit?
60kg total across all three points, which works out to 20kg per point. Don't put more than 20kg on any single point, even if the total stays under 60kg.
How many kits do I need?
One Triple kit mounts one awning at three points. If you're mounting two awnings, you need two kits.

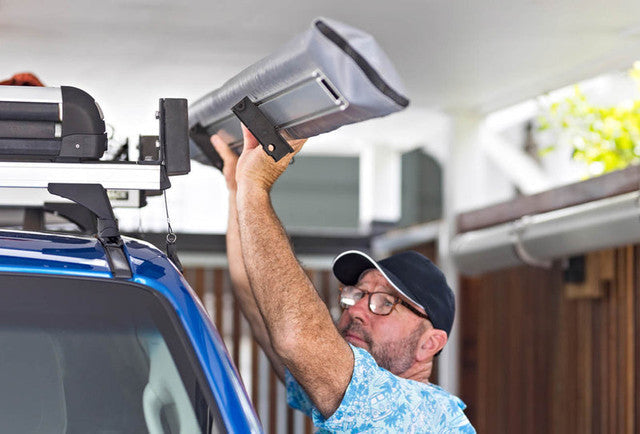

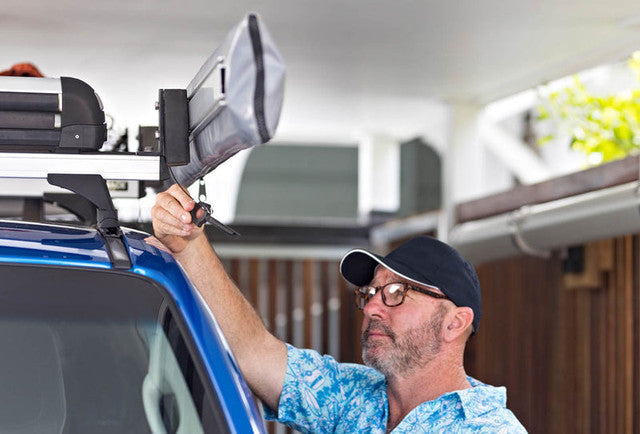

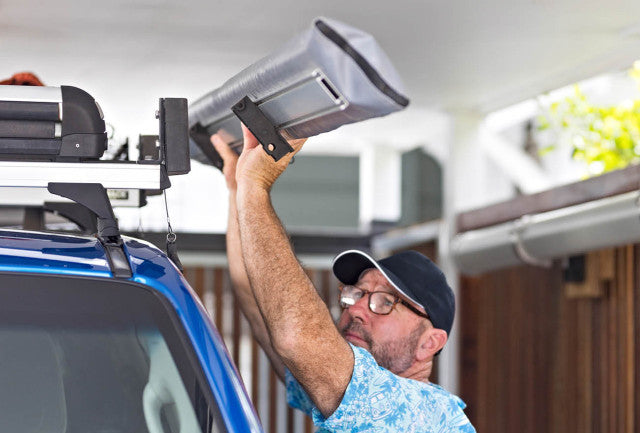

How fast can I take the awning off?
Once the hitches are bolted to your bars and to the awning, removal is quick-release — the awning lifts off and snaps back on in seconds, no tools.
What is it made of and does it need maintenance?
UV-stabilised, glass-reinforced nylon hitches with stainless steel fasteners. The nylon holds up to sun exposure and the stainless hardware resists rust, so there's no special upkeep.
