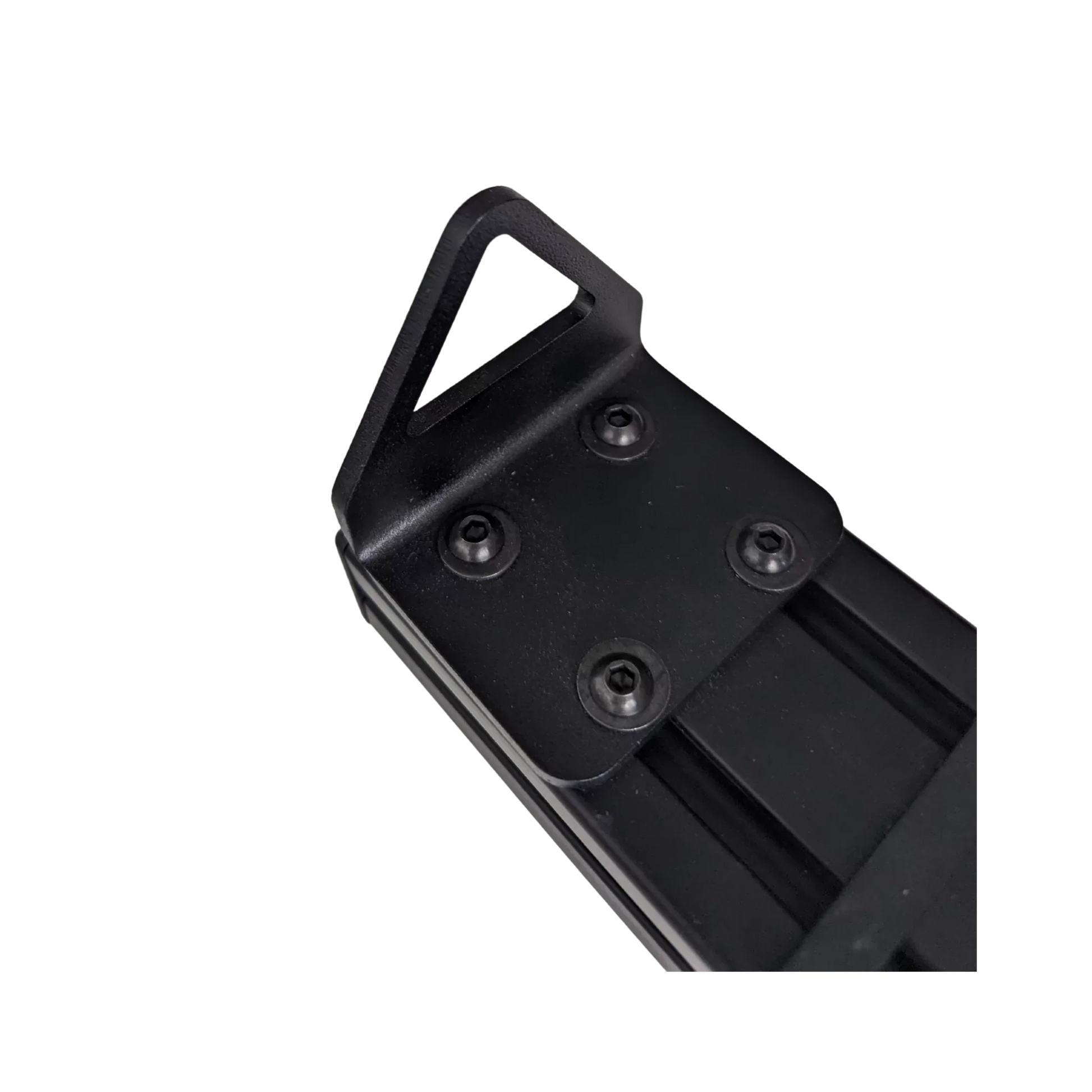

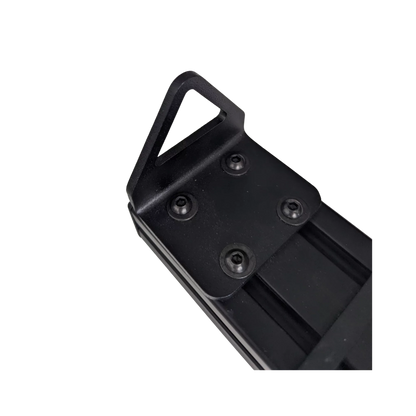

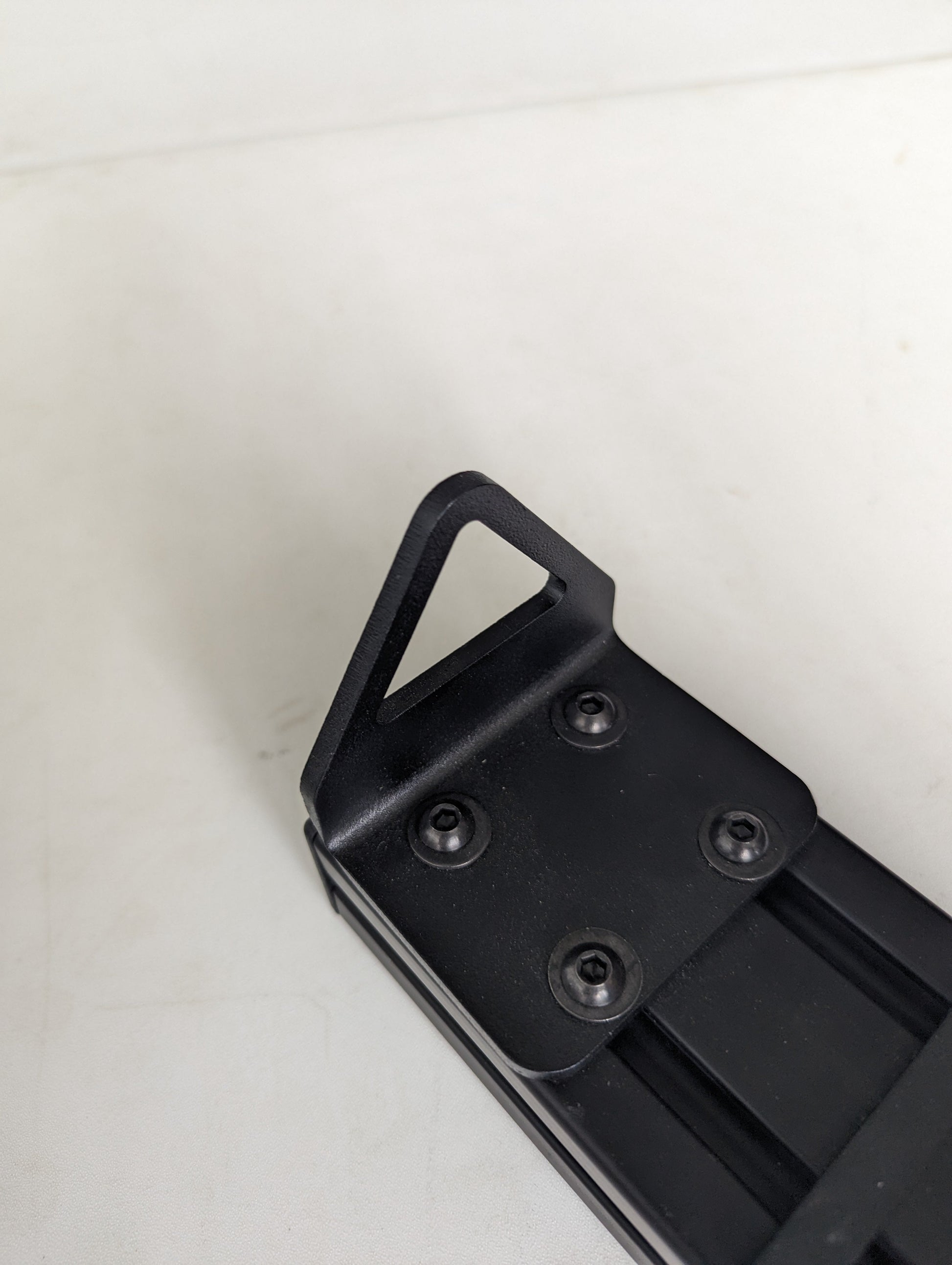

The TRUKD Rack Mounted Tiedown Point is a pair of 3/16" aluminum anchor brackets that bolt to any T-slot position on a TRUKD T Series crossbar — or any rack using 1530-series extrusion or a single T-slot profile. Two brackets per pack with mounting hardware. Lifetime warranty. Made in Pittsburgh, PA.
Each bracket is a fixed anchor point: position them at whatever spacing your load requires, then run any hooked strap or the TRUKD Rack Mounted Ratchet Strap between them. One pack handles a single tie-down lane — one forward anchor, one aft. Two packs give you four independent points for left-right coverage across the full rack. Non-TRUKD rack users need to source T-nuts sized for their extrusion profile.
Pairs with the Rack Mounted Ratchet Strap and Ladder Tiedown Rabbit Ears. Includes: 2× 3/16" aluminum anchor brackets, TRUKD mounting hardware.
No se pudo cargar la disponibilidad de retiro
Overview
A pair of 3/16" aluminum anchor points that mount anywhere on a TRUKD T Series crossbar or 1530-extrusion rack. Anchor spacing is fully adjustable — slide to fit the load, tighten in place.
Key features
- Two brackets per pack — one forward and one aft anchor for a single strap run
- Mounts anywhere along the crossbar T-slot; no fixed position
- Fits TRUKD T Series crossbars and any 1530-series extrusion or single-T-slot rack
- Pairs with the Ratchet Strap for a complete $118 cargo management setup
- Lifetime warranty, Made in USA
Use cases
Single-lane cargo runs: space the two brackets at the load width and run a ratchet strap between them. For full-rack coverage, two packs (four points) create independent left-side and right-side tie-down lanes. Also used as secondary lateral anchors when the Rabbit Ears hold a ladder or round object — the Tiedown Points add a backup catch if the load shifts side-to-side.
- Bracket material: 3/16" aluminum
- Finish: Textured black powder coat
- Quantity: 2 brackets per pack
- Mount type: T-slot bolt-on, any position on crossbar
- Compatible racks: TRUKD T Series; any 1530-series extrusion or single-T-slot rack
- Note (non-TRUKD racks): Buyer must source T-nuts sized for their extrusion profile
- Warranty: Lifetime
- Manufactured: Pittsburgh, PA, USA
- Included: 2× anchor brackets, TRUKD mounting hardware
Does a strap come with this?
No — these are anchor points only. Any hooked ratchet strap, cam buckle, or bungee cord with a flat hook will attach. TRUKD's Rack Mounted Ratchet Strap ($71) is the intended pairing — it stays permanently mounted on the rack and pulls out when needed.
Why only 2 brackets for one tie-down lane — shouldn't there be 4?
Two brackets is the minimum for a single strap run: one anchor forward, one aft. For full-rack coverage (independent left and right lanes), buy two packs. Most buyers start with one pack for a specific load they're running regularly, then add a second pack as the rack build grows.
What racks does this fit beyond TRUKD?
Any rack using 1530-series aluminum extrusion (15mm × 30mm) or a single T-slot. That covers a wide range of aftermarket bed and roof racks. If your rack uses a different slot width or profile, you'll need to source your own T-nuts — TRUKD's included hardware is spec'd for 1530.
What's the load rating?
TRUKD does not publish a bracket load rating. These are static anchor points — not rated for recovery use or dynamic shock loads. For typical cargo tie-down (coolers, gear bags, recovery equipment), they're suitable; for recovery anchors, use purpose-built recovery gear.
Do these work with the Ratchet Strap and Rabbit Ears as a system?
Yes. TRUKD designs all three as an ecosystem: Rabbit Ears capture an RTT ladder laterally, Tiedown Points add secondary hooks, and the Ratchet Strap provides the tensioning cinch over the top. Each product works independently but the trio is the full system for an RTT ladder setup.
