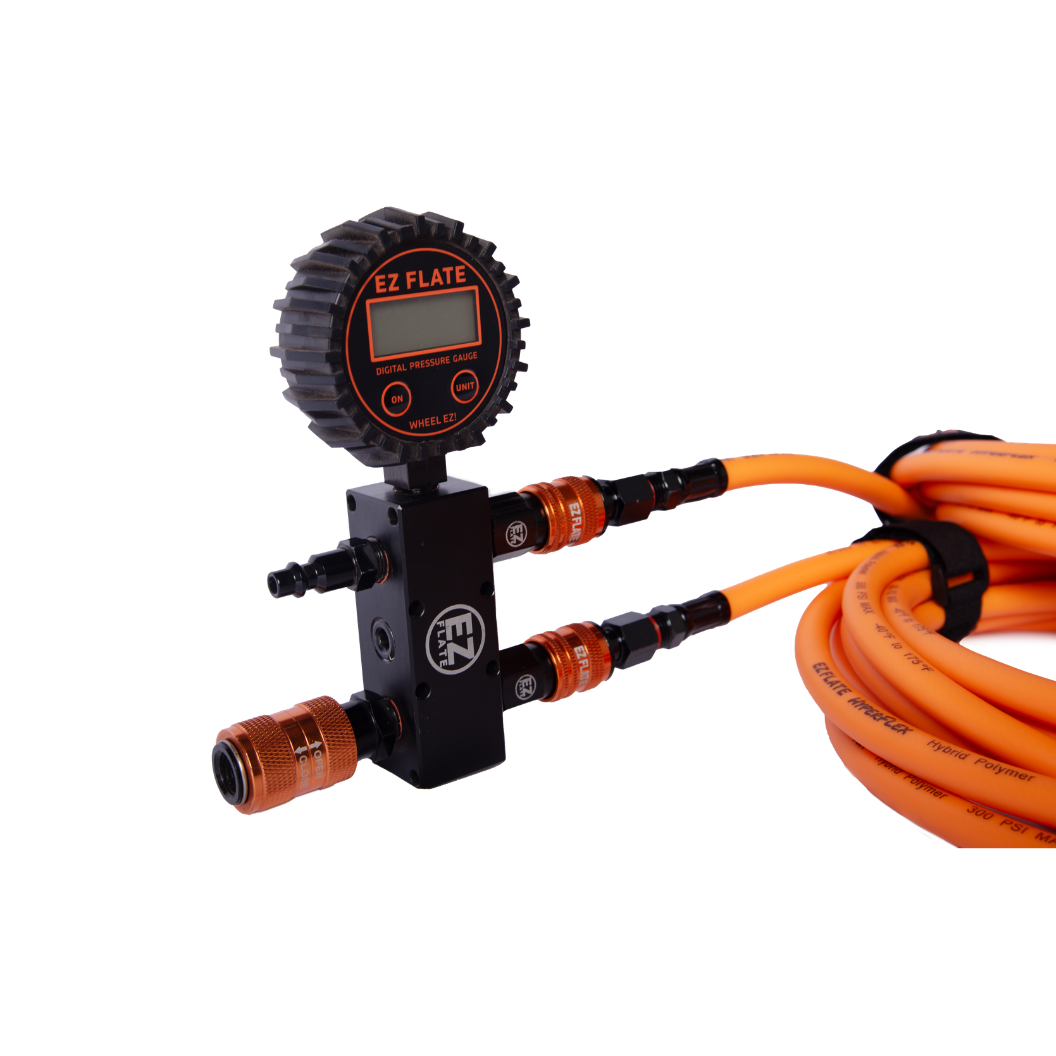

The EZ FLATE Modular Manifold is the air-distribution block for an on-board compressor setup. It bolts to the EZ FLATE Lock & Load Mount and gives one feed line two switchable outlets, so a single dual-cylinder compressor can run a tire hose and an air-tool line off the same plumbing. The kit ships ready to install: 1 slide valve, 2 push-to-connect universal couplers, 1 digital pressure gauge, 1 male I/M fitting, 3 hole plugs with teflon tape, and the hardware to fasten it to the mount.
Multiple mounting holes let you set it horizontal, vertical, or angled to whatever space the rig has behind the seat, under the bed, or in the trunk. This is a permanent-but-serviceable build: cap the ports you aren't using with the included plugs and teflon, then open one later when you add a quick-connect at the bumper or a second air line. It is a distribution and mounting block, not a standalone air source — you bring the compressor.
Built around EZ FLATE's compressor ecosystem (M.O.A.B. and M.O.A.B. Auto Air) and most dual-cylinder compressors that share a similar base plate, such as the Thor's Lightning Bolt and MAXI TRAC. Backed by a 3-year limited warranty against mechanical defects under normal use.
No se pudo cargar la disponibilidad de retiro
Overview

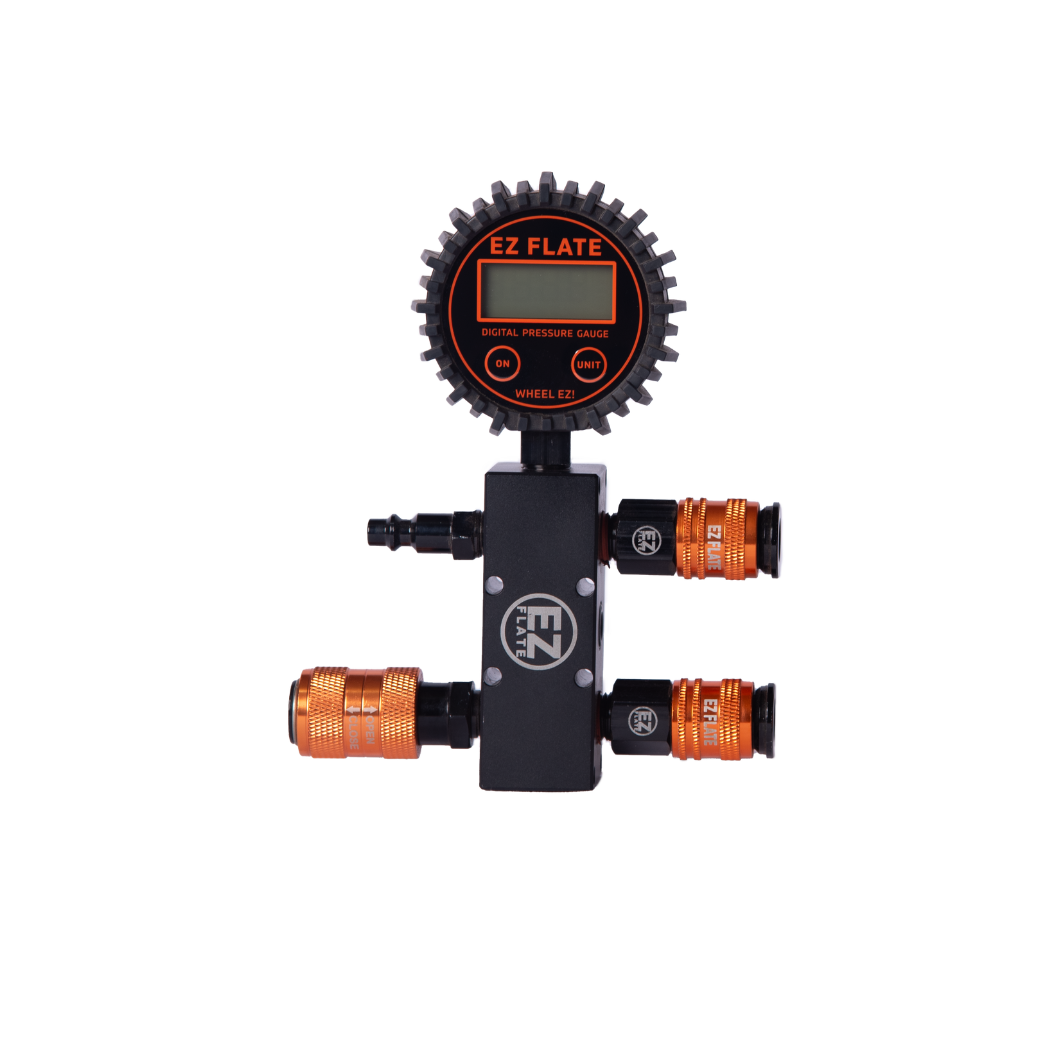

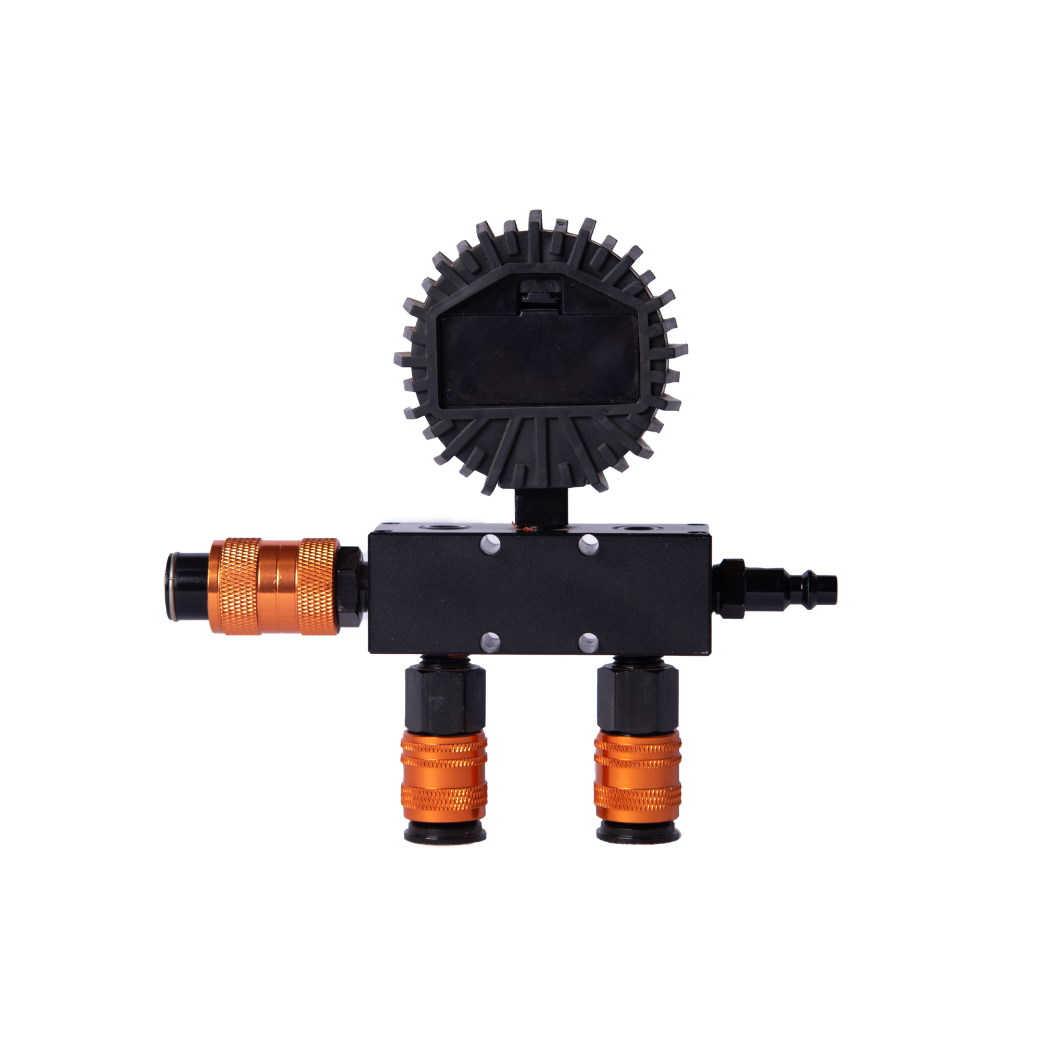

The EZ FLATE Modular Manifold is a compressor air-distribution block that bolts to the EZ FLATE Lock & Load Mount and splits one feed into two push-to-connect outlets. It turns a mounted dual-cylinder compressor into a clean, fixed air station for tires and tools.
Key features
- Two push-to-connect universal couplers off one feed — run a tire hose and an air-tool line at the same time.
- Mounts horizontal, vertical, or angled via multiple bolt-hole positions on the Lock & Load Mount.
- Ships complete: slide valve, digital pressure gauge, male I/M fitting, 3 hole plugs, teflon tape, and Lock & Load mounting hardware.
- Permanent-but-serviceable: plug unused ports now, open them later as the air system grows.
- Compatible with EZ FLATE M.O.A.B. compressors and most dual-cylinder units on a similar base plate (Thor's Lightning Bolt, MAXI TRAC).
Use cases

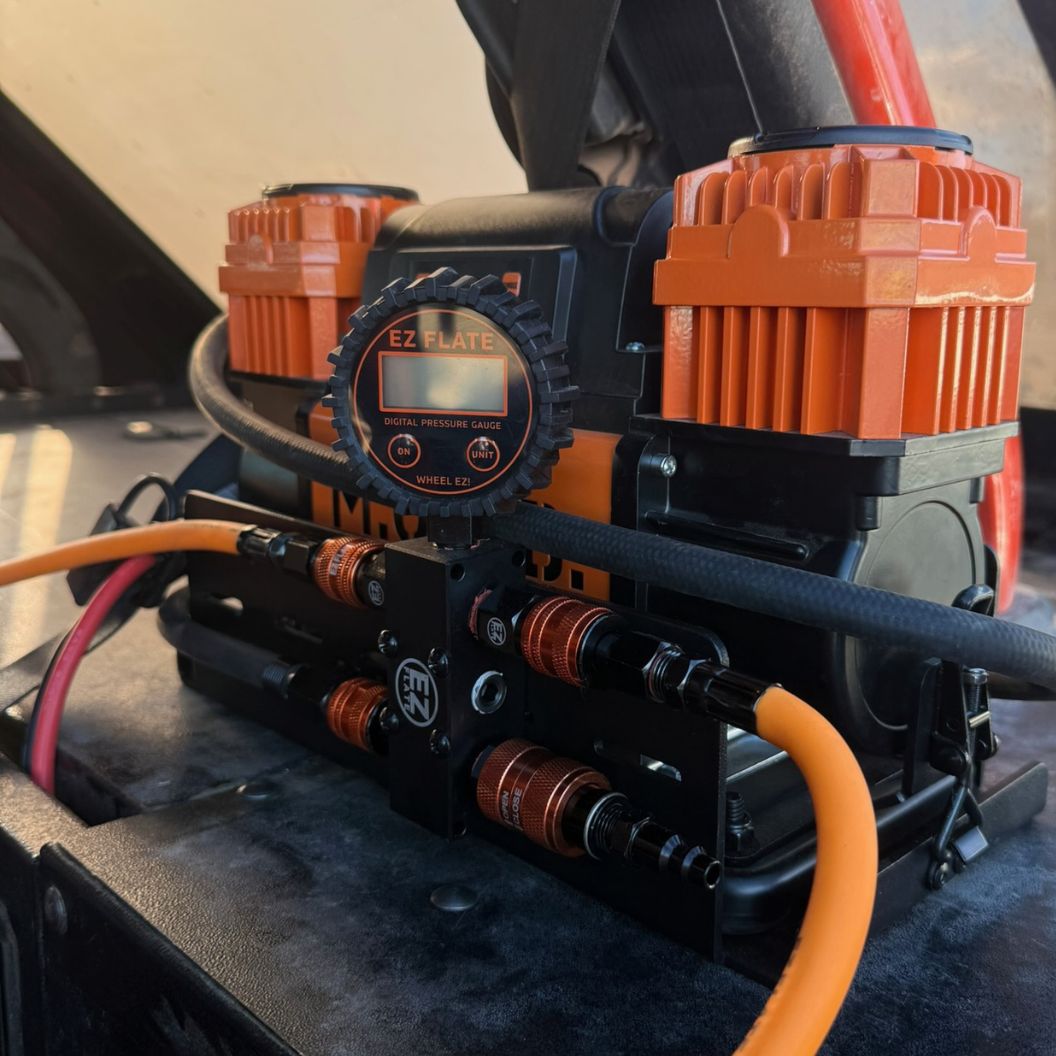

Most buyers run it as the fixed air block for an on-board compressor — one slide valve and gauge at the source, two couplers feeding a tire hose and an air tool. Because the ports cap off cleanly, it also suits a staged build: start with one outlet for airing up tires, then add a bumper quick-connect or a second line down the road without re-plumbing.
- Type: Compressor air-distribution manifold (mounting block)
- Mounts to: EZ FLATE Lock & Load Mount (horizontal, vertical, or angled)
- Outlets: 2 push-to-connect universal couplers

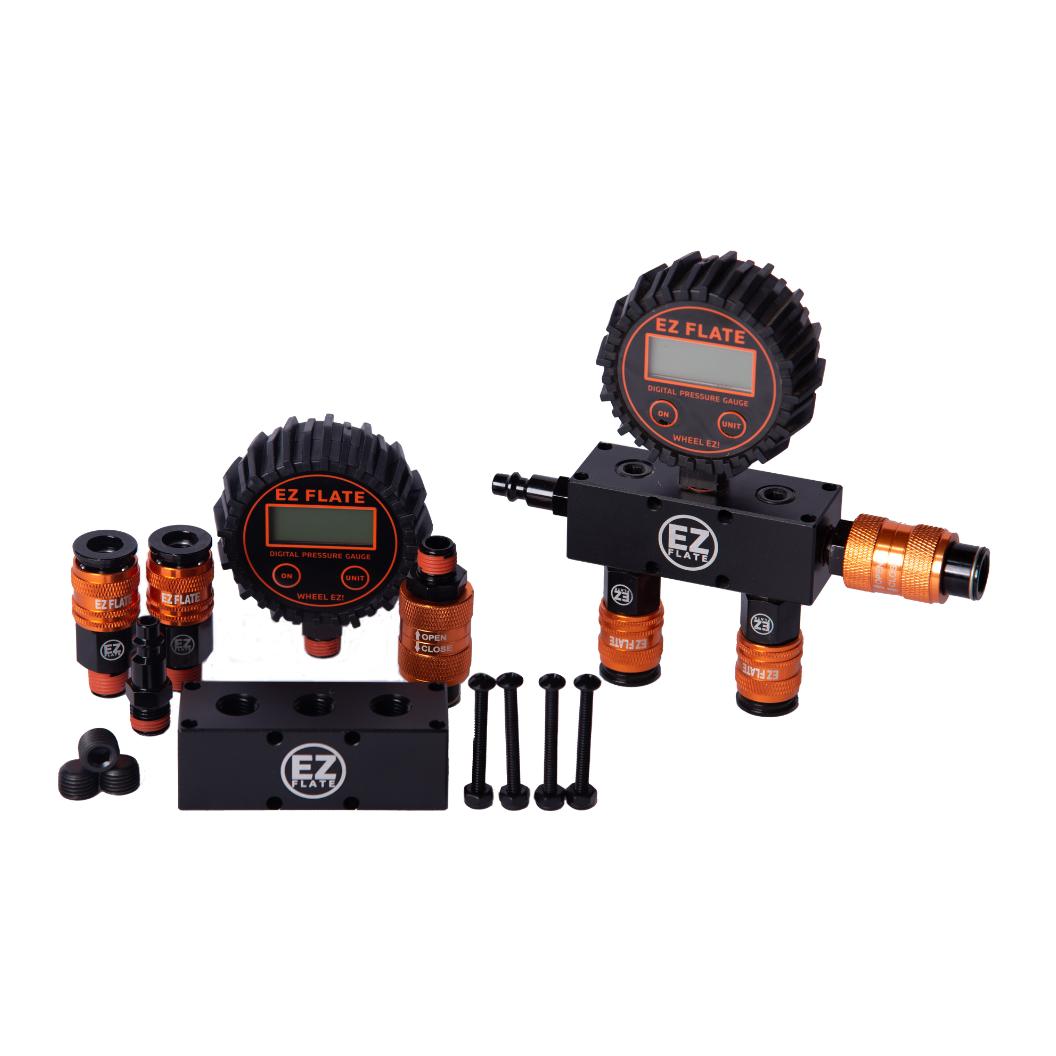

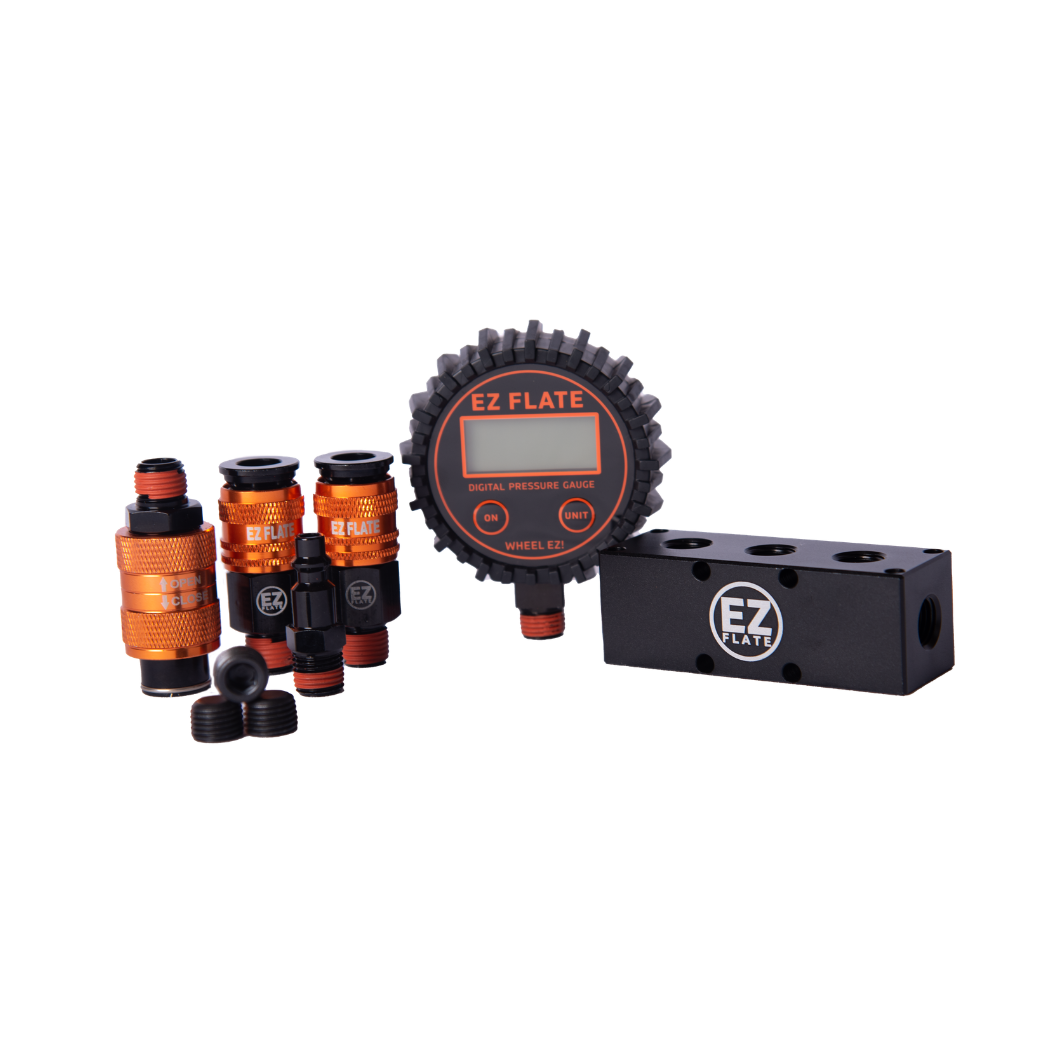

- In the box: 1 slide valve, 2 push-to-connect couplers, 1 digital pressure gauge, 1 male I/M fitting, 3 hole plugs, teflon tape, Lock & Load mounting hardware
- Compressor compatibility: EZ FLATE M.O.A.B. / M.O.A.B. Auto Air; most dual-cylinder compressors on a similar base plate (Thor's Lightning Bolt, MAXI TRAC)
- Install type: Permanent yet serviceable
- Warranty: 3-year limited (mechanical defects, normal use)
What comes in the kit?
One slide valve, two push-to-connect universal couplers, one digital pressure gauge, one male I/M fitting, three hole plugs with teflon tape, and the hardware to bolt the manifold to a Lock & Load Mount.
Do I need the Lock & Load Mount to use it?
Yes. The included hardware is cut for the EZ FLATE Lock & Load Mount, and the manifold is designed to fasten to it. If you don't already run the mount, plan to add it.
Is this a compressor or an air source on its own?
No. It's a distribution and mounting block. You supply the compressor; the manifold splits its output into two usable outlets with a gauge and slide valve at the source.
Which compressors does it fit?
It's built around EZ FLATE's M.O.A.B. and M.O.A.B. Auto Air compressors and works with most dual-cylinder compressors that share a similar base plate, including the Thor's Lightning Bolt and MAXI TRAC.
Can I mount it vertically?

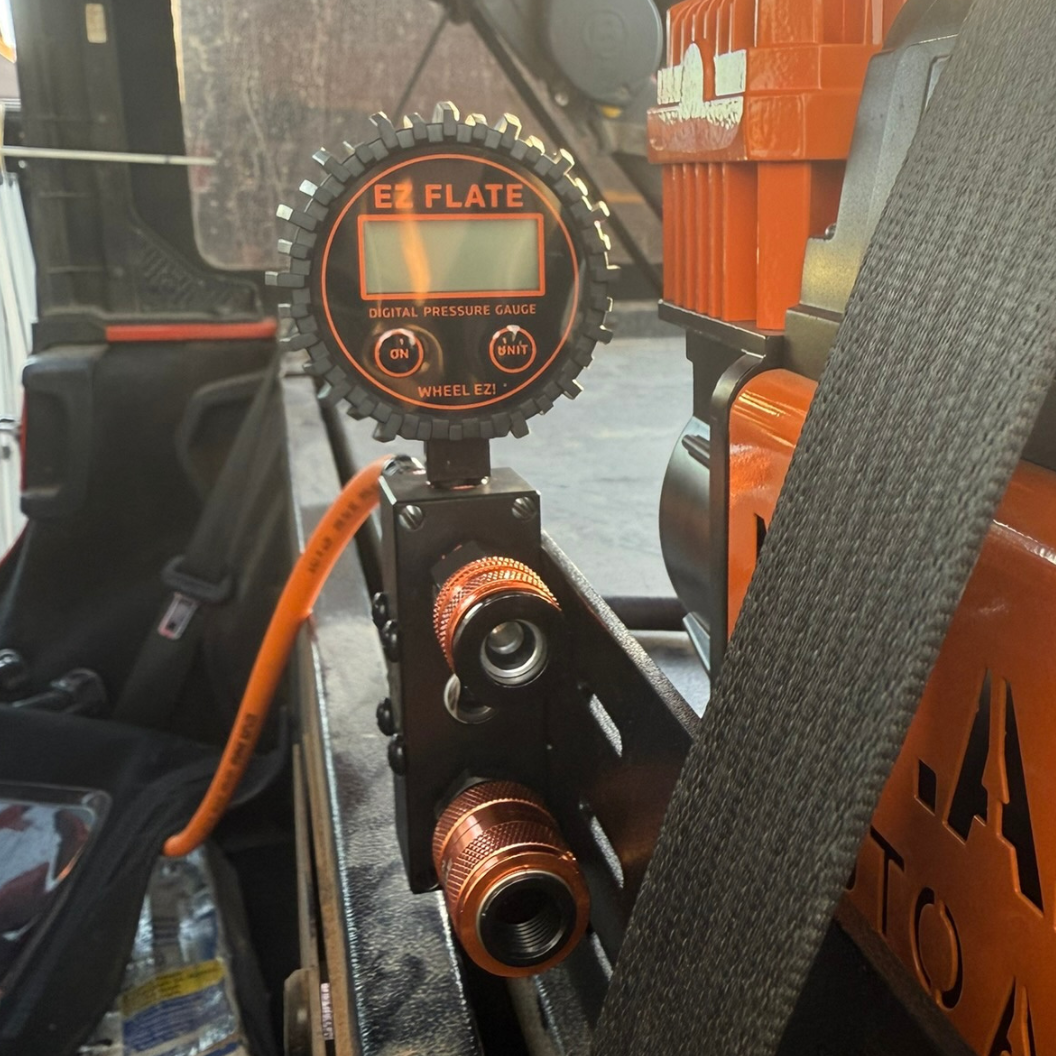

Yes. Multiple bolt-hole positions let you run it horizontal, vertical, or angled to fit the space in your rig.
What do I do with the ports I'm not using?
Cap them with the three included hole plugs and wrap the threads with the supplied teflon tape so they seal. Open a port later when you add a second line or a quick-connect. Wrapping the plugs is the step most leaks trace back to, so don't skip it.
