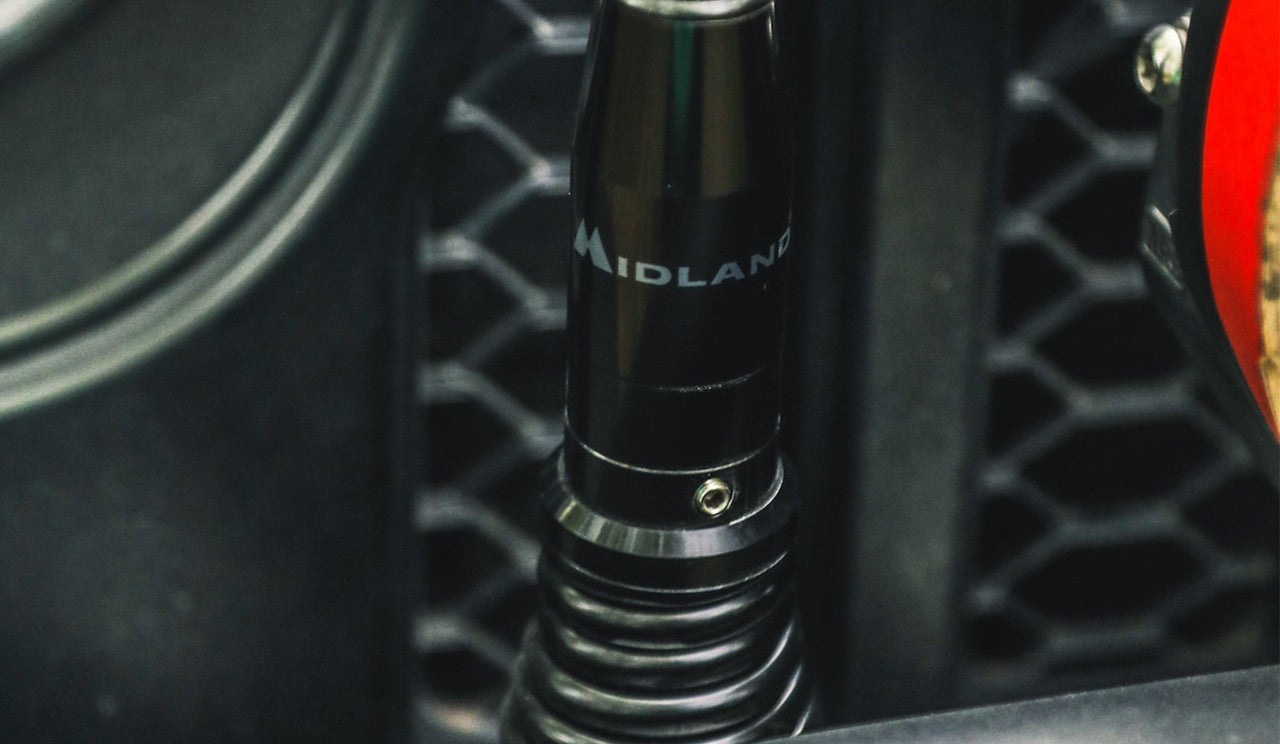

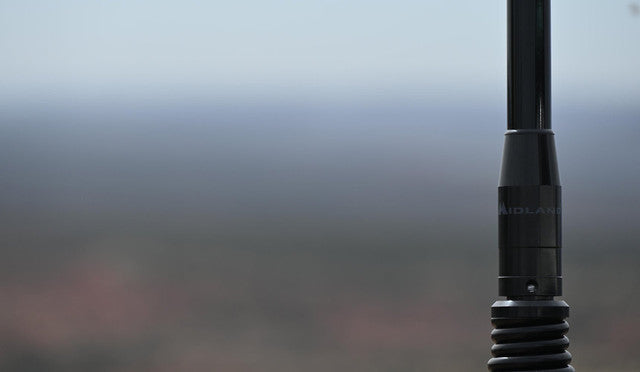

Midland 6.6 dB Heavy Duty Bullbar Antenna [B]

Overview

The MXAT04 is Midland's 6.6 dB heavy-duty fiberglass bullbar antenna for GMRS, standing 47.5 inches tall and tuned for the 462-468 MHz band. Antenna only — no spring base or coax included.

Key features

• 6.6 dB gain — more open-ground reach than a 3 dB stubby, shorter than a full long-range whip
• 47.5-inch heavy-duty fiberglass whip built for trail abuse
• GMRS frequency range, 462-468 MHz
• Mounts through a standard 1/2-inch hole
• Water resistant for full-time outdoor mounting
• Interchangeable with the heavy-duty spring base (sold separately)

Use cases

Built for overland and off-road GMRS comms where the terrain opens up: trail convoys on fire roads, open desert, and wide two-tracks with light obstructions. It is the common upgrade from a short 3 dB antenna when a crew needs more range over open ground.

• Model: Midland MXAT04 (Highland Tall)
• Type: GMRS bullbar antenna, antenna only
• Gain: 6.6 dB
• Height: 47.5 in
• Frequency: 462-468 MHz (GMRS)
• Material: Heavy-duty fiberglass
• Color: Black
• Mounting: 1/2-inch hole
• Water resistance: Water resistant
• Ground plane: Required, ~12 in steel/aluminum across
• Included: Antenna only (spring base and coax sold separately)
• Warranty: 1 year

Does this come with the spring base and coax cable?

No. This is the antenna only. The heavy-duty spring base and the 19.5-foot coax come in the separate value-pack SKU. The antenna is interchangeable with that base if you add it later.

Do I need a license to use it?

The antenna itself needs no license. The GMRS radio you connect it to does require an FCC GMRS license. There is no test, and one license covers your household.

Does it need a ground plane?

Yes. Like all mobile GMRS antennas, it needs a ground plane to perform as designed: roughly 12 inches of steel or aluminum across for GMRS frequencies. The surface does not have to be continuous, so a hood, fender, or bullbar tab can work.

How much more range than a 3 dB antenna?

The 6.6 dB gain concentrates more of the signal toward the horizon than a 3 dB stubby, so you reach farther over open ground. It does this without the full height of a long-range whip.

What frequencies does it cover?

It is tuned for the GMRS band, 462-468 MHz.

Will it hold up on the trail?

It is a heavy-duty fiberglass whip and is water resistant for full-time outdoor mounting, backed by a 1-year warranty. Pair it with the spring base if you run tight, brushy trails where the whip takes regular hits.
