Midland 3 dB Heavy Duty Bullbar Antenna [B]

Overview

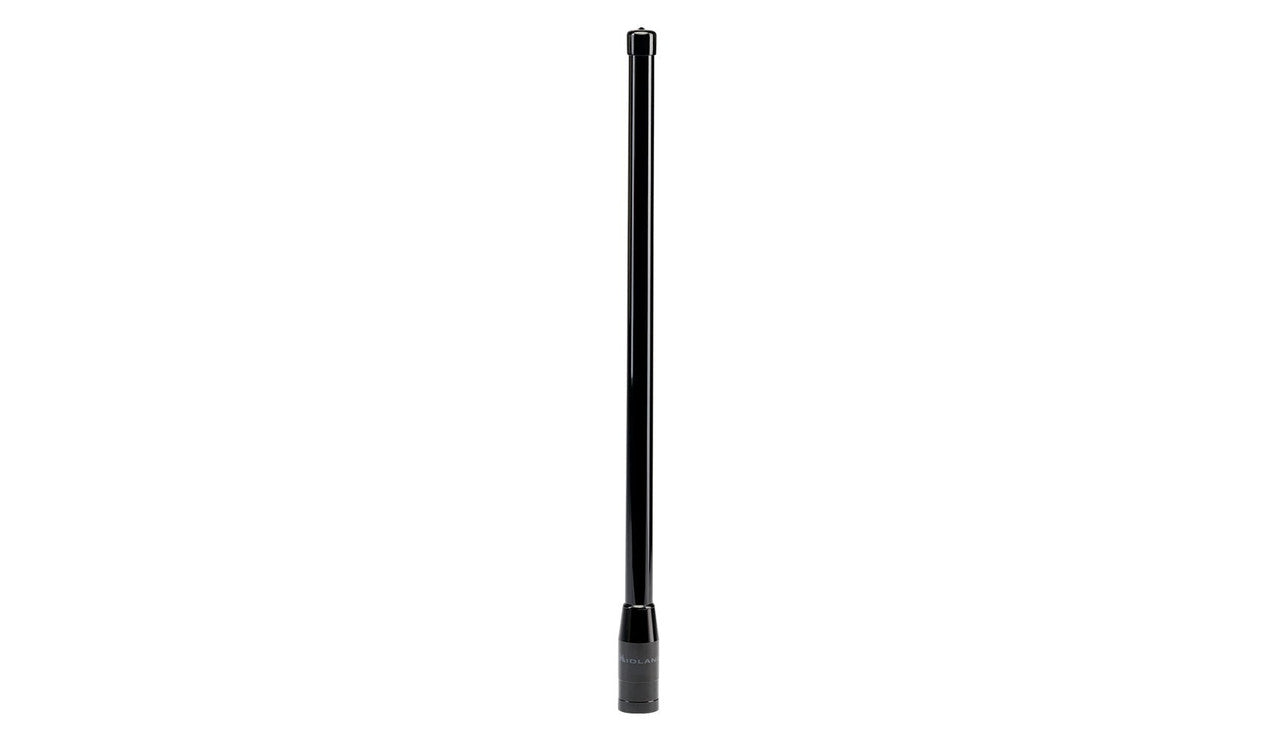

The Midland MXAT05 is the 3 dB gain version of the Highland heavy-duty bullbar GMRS antenna. It is the antenna element by itself, built for Midland MicroMobile radios and tuned for terrain with hills and heavy tree cover.

Key features

• 3 dB gain with a rounder, more vertical radiation pattern for hilly and

wooded terrain

• 28.5 in overall height in heavy-duty fiberglass that flexes off branch

strikes

• GMRS band, 462-468 MHz, matched to Midland MicroMobile (MXT series) radios

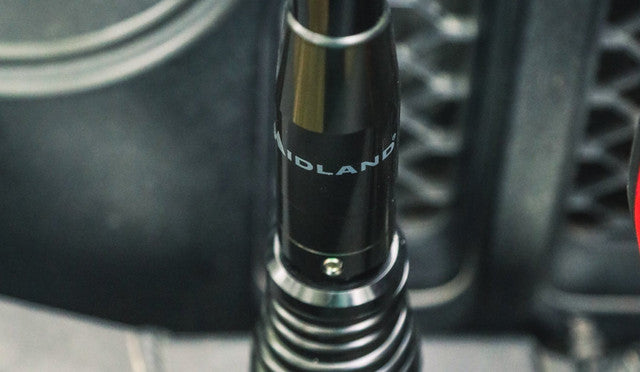

• Mounts to a standard 1/2 in hole; interchangeable with the Highland

heavy-duty spring base

• UHF-Male (PL-259) connector

Use cases

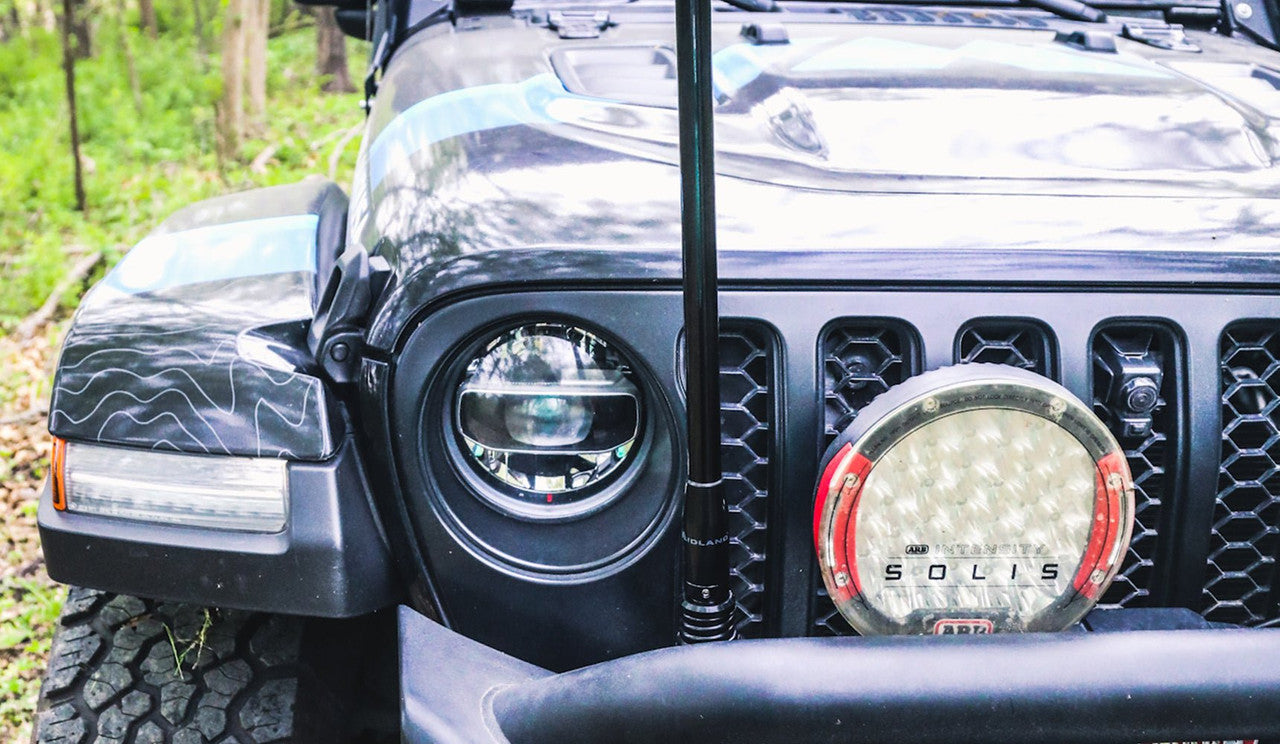

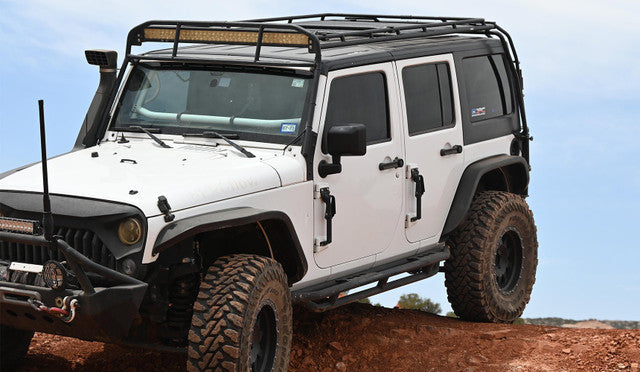

Bull-bar and brush-guard mounting on overland rigs that spend their miles in canyons, mountains, and dense forest, where the lower 3 dB gain keeps the signal reaching trucks tucked down in the dips.

• Gain: 3 dB
• Overall height: 28.5 in
• Construction: heavy-duty fiberglass
• Color: black
• Band: GMRS
• Frequency range: 462-468 MHz
• Connector: UHF-Male (PL-259)
• Mount: 1/2 in hole (spring base not included)
• Radio compatibility: Midland MicroMobile (MXT series) GMRS radios
• In the box: antenna only (no spring base, no coax)

Does this come with a mount and cable?

No. This is the antenna element only. It mounts to a 1/2 in hole and needs a spring base plus coax to finish the install. It is interchangeable with the heavy-duty spring base from Midland's Highland value pack, so you can run that base and matching coax with it.

Which radios does it work with?

It is built for Midland MicroMobile GMRS radios (the MXT series) and is tuned to the GMRS band at 462-468 MHz.

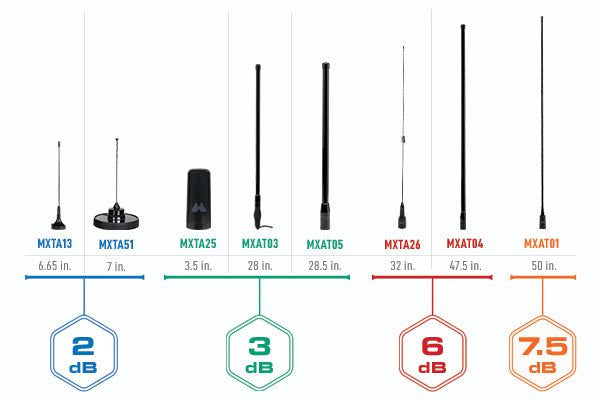

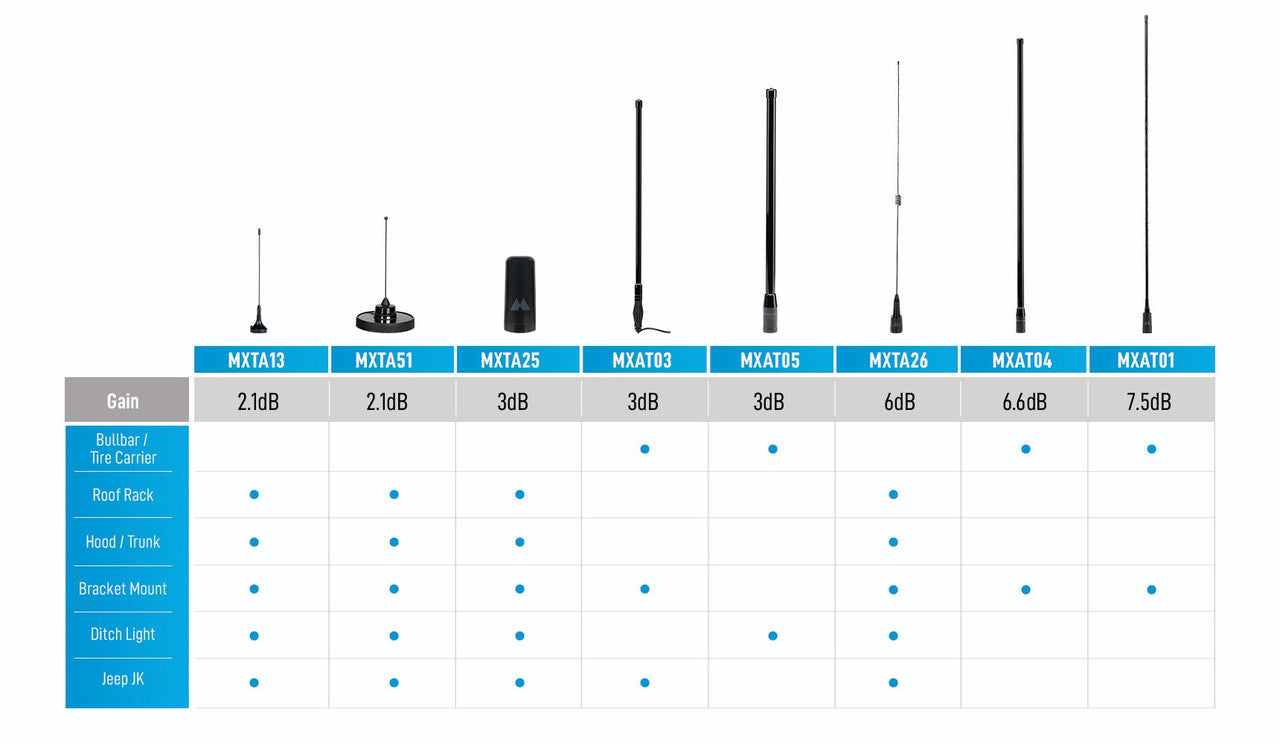

Should I run 3 dB or 6 dB gain?

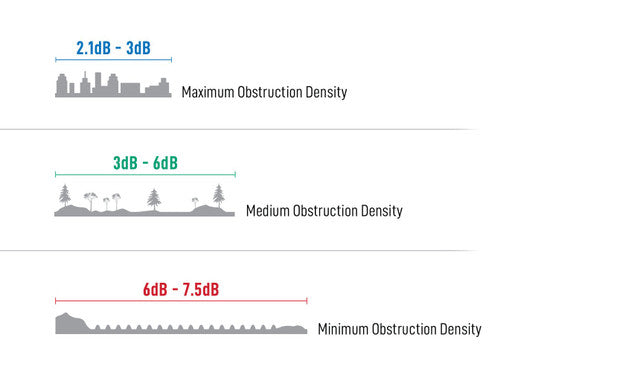

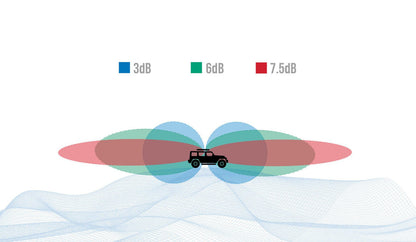

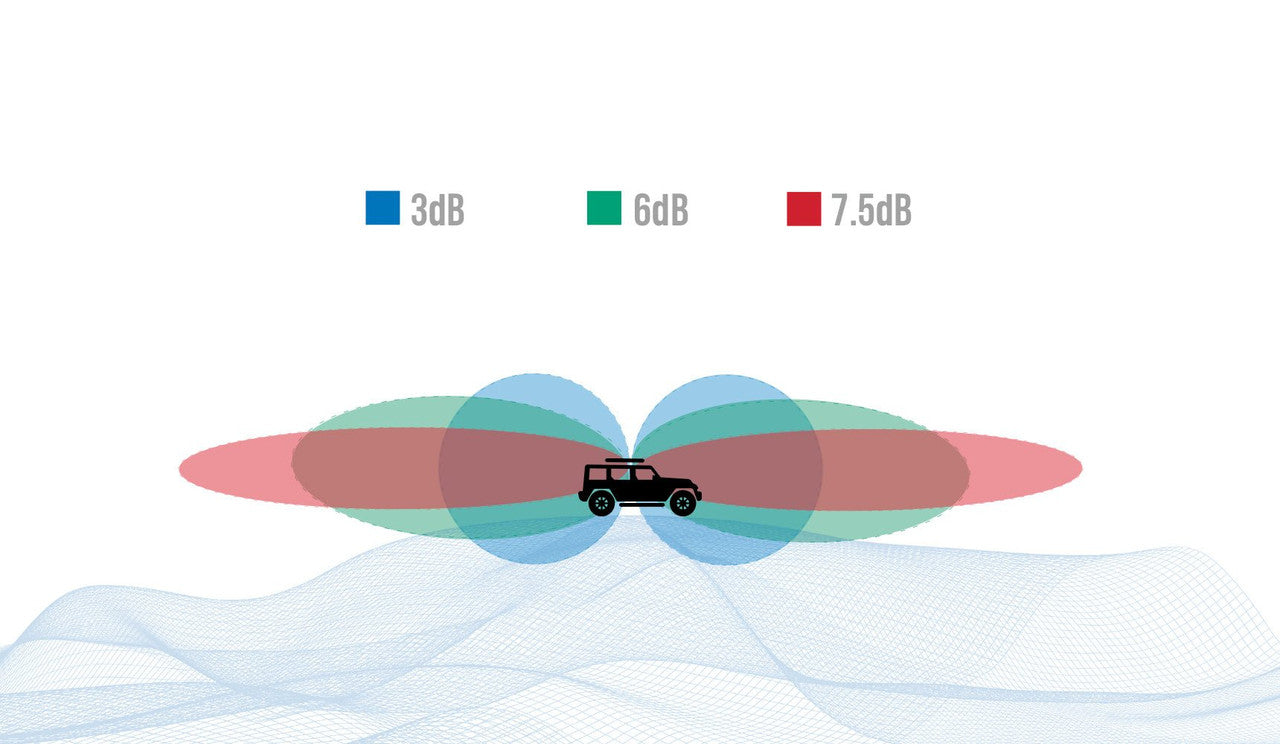

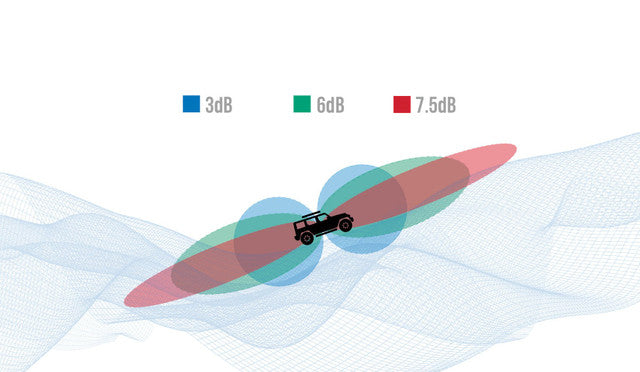

Pick by terrain. 3 dB radiates a rounder, more vertical pattern that holds a signal in hills, canyons, and timber where the trail rises and dips. 6 dB flattens the pattern for more reach on open, flat ground but can shoot over a rig sitting down in a valley.

How tall is it, and will it survive the trail?

It stands 28.5 in. The heavy-duty fiberglass whip flexes when it catches a branch and springs back, instead of snapping the way a stiff steel whip can.

What connector does it use?

A UHF-Male (PL-259), the standard connector on Midland MicroMobile coax. Hand-tighten it, then snug a quarter turn; if the joint is exposed, weather-seal it to keep moisture out.
