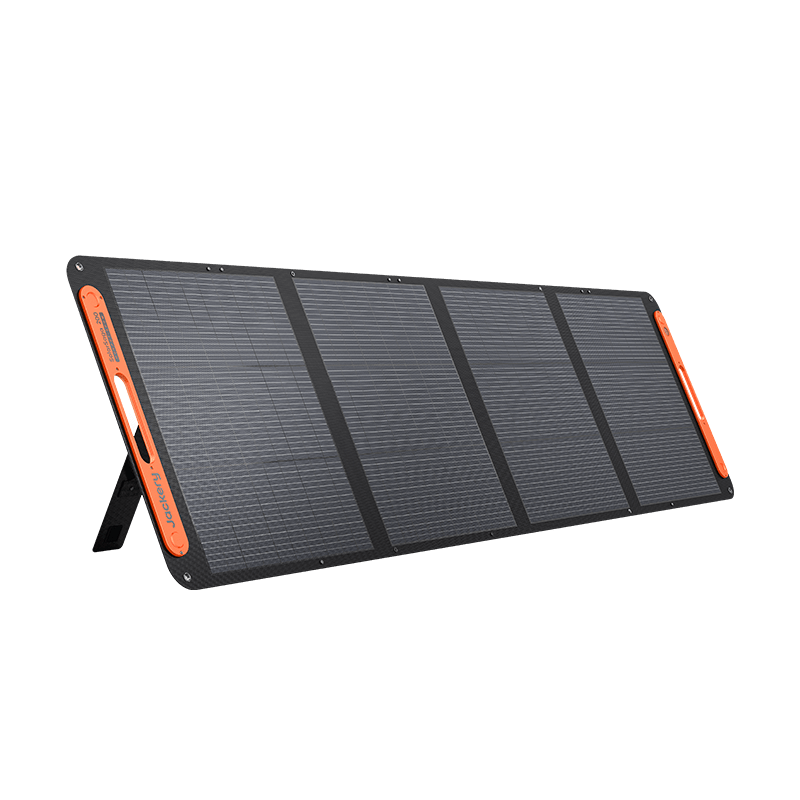

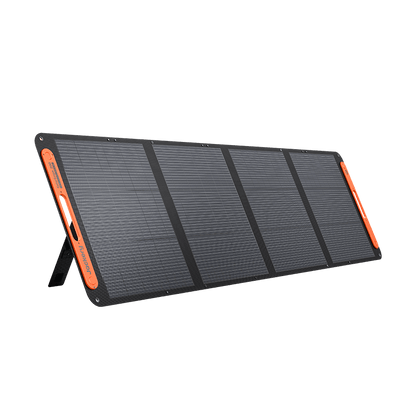

Jackery SolarSaga 200W Foldable Solar Panel
Jackery SolarSaga 200W Foldable Solar Panel
The Jackery SolarSaga 200W is a foldable 200W solar panel built to keep a large power station topped up off-grid. It runs bifacial monocrystalline IBC cells rated up to 24.3% conversion, so the front face does the heavy lifting and the back side grabs reflected light off bright ground for a little extra. In a real camp setup, tilted into midday sun, plan on about 175 to 195 watts; heavy overcast pulls it down to roughly 30 to 50 watts.
This is the panel you reach for when a 100W can't keep up. One panel refills a 1 kWh-class station in about 7 to 8 hours of good sun, and a 2 kWh-class station in roughly 12 to 14 hours. Run two of them for double the input and you cut that time close to half. The panel folds flat for transport and pops open on adjustable kickstands; Jackery's SolarTarget guide helps you aim it square at the sun. IP68 rated, so dust, rain, snow, and sand are no problem.
It uses Jackery's DC8020 connector and ships with a 3-meter multi-functional cable, a DC8020-to-DC7909 adapter, and the manual. Built-in USB-A and USB-C ports let you charge phones and small electronics straight off the panel while it feeds the station.
No se pudo cargar la disponibilidad de retiro
Overview
The SolarSaga 200W is a 200-watt foldable solar panel with bifacial monocrystalline IBC cells rated up to 24.3% conversion. It's the high-wattage option for fast off-grid recharge of larger Jackery power stations.
Key features
- 200W peak output; bifacial cells add reflected-light gain off bright ground
- Up to 24.3% conversion efficiency from monocrystalline IBC cells
- IP68 dust-tight and submersion-rated for rain, snow, dust, and sand
- Folds flat with adjustable kickstands and a SolarTarget sun-angle guide
- Built-in USB-A and USB-C ports for charging small electronics direct
- DC8020 connector, 3 m cable, and DC8020-to-DC7909 adapter included
Use cases
Best for base camps and longer off-grid stays where a single 100W panel can't keep pace with a 1-to-2 kWh station. Tilt one into the sun to hold a big battery near full, or pair two for roughly 400W of input and a much faster turnaround between sunny windows.
- Peak power: 200W
- Power voltage: 18V
- Power current: 11.12A
- Cell type: monocrystalline IBC, bifacial
- Conversion efficiency: up to 24.3%
- Real-world output: ~175–195W in good sun; ~30–50W heavy overcast
- IP rating: IP68 (dust-tight, submersion-rated)
- Operating temperature: -10 to 65 °C (14 to 149 °F)
- Folded dimensions: ~24.6 x 21.3 x 1.7 in
- Unfolded dimensions: ~91.3 x 21.2 x 1 in
- Connector: DC8020 (Jackery)
- Ports: USB-A, USB-C
- Shipping weight: 8300 g (~18.3 lb)
- In the box: panel, 3 m multi-functional cable, DC8020-to-DC7909 adapter, manual
What wattage does it really put out?
Tilted into direct midday sun in a typical camp setup, plan on about 175 to 195 watts. The bifacial back side can push it past 200 watts on bright reflective ground. Heavy overcast drops output to roughly 30 to 50 watts.
How long to recharge a big power station with one panel?
One panel refills a 1 kWh-class station in about 7 to 8 hours of good sun, and a 2 kWh-class station in roughly 12 to 14 hours. Run two panels for around 400W of input and you cut that time close to half.
Will it work with non-Jackery power stations?
It uses Jackery's DC8020 connector and is built for Jackery Explorer stations, which match the panel's MPPT tuning. Third-party adapters exist but can void the warranty and skip that matched charging, so we don't recommend them.
Can I leave it out in the weather?
The panel is IP68 rated, so dust, rain, snow, and sand won't hurt it. Keep the DC8020 connector and USB ports clear of standing water, and seat the cable away from the hinge when you fold it up so the connector doesn't pinch.
Is it heavier than the 100W panel?
Yes. It ships at about 18 pounds, noticeably more than a 100W, which is the trade for nearly double the output in one panel. If you'd rather split the load, two smaller panels give you positioning flexibility at a similar total wattage.
