Heretic 6-Series Quattro LED Pod Light - Spot Beam, Clear Lens, Black Bezel
Heretic 6-Series Quattro LED Pod Light - Spot Beam, Clear Lens, Black Bezel

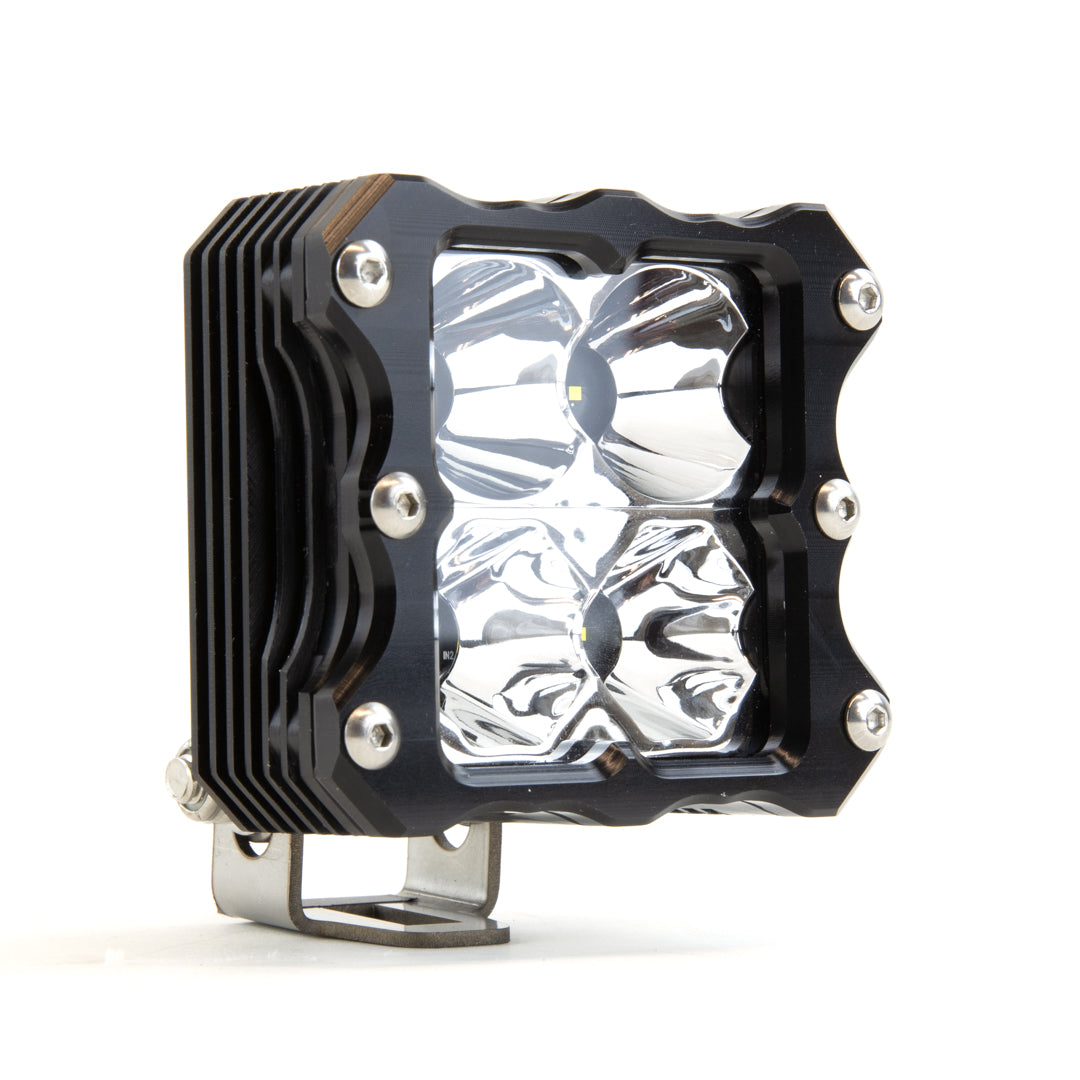

The Heretic 6-Series Quattro is a single LED pod set up with the spot reflector, a clear lens, and a black bezel. Four 6-watt CREE LEDs put out 2904 raw lumens and 82,500 candela, throwing a tight beam roughly 574 meters down the trail. It pulls 2A at 13.8V (24W) and runs on anything from 9V to 36V, so it drops onto both 12V and 24V rigs.
The spot pattern is the long-range option. It punches a narrow column of light way out front instead of spreading wide and close, which makes it the right call for ditch lights, A-pillar mounts, and bumper spots where you want to see distance at speed. The housing is CNC-machined 6061 aircraft-grade aluminum with an IP68 seal, so mud, dust, and water crossings are a non-issue. It ships as one pod on a stainless bracket.

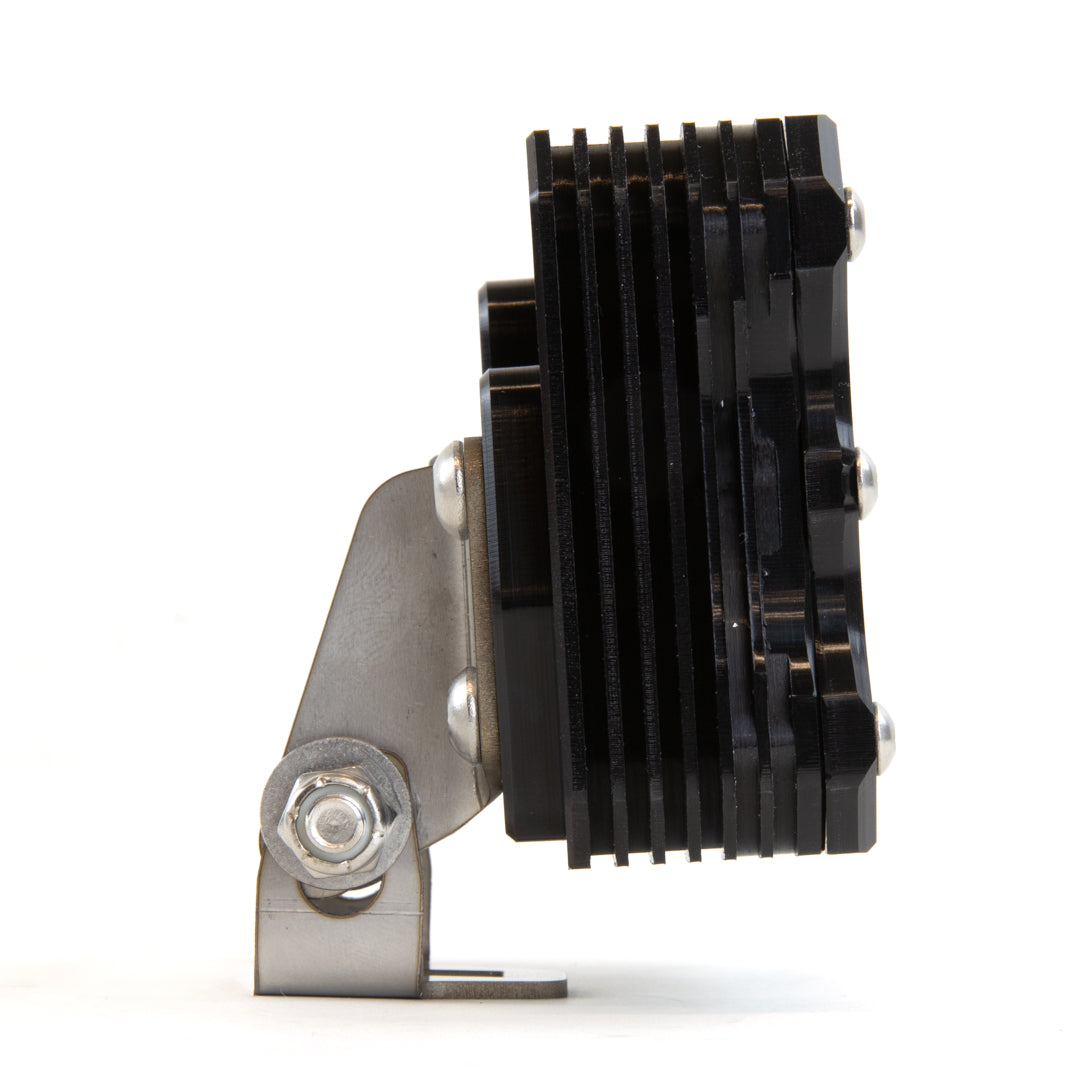

Light only measures 3 x 1.5 x 3 in; with the bracket it's 3.2 x 2.5 x 3.4 in. The stainless bracket bolts to most aftermarket bumper, ditch, chase, and roof rack mounts.
No se pudo cargar la disponibilidad de retiro

Overview
Single Heretic 6-Series Quattro LED pod with the spot reflector, clear lens, and black bezel. Built for long-range aux lighting on trucks, Jeeps, SUVs, and UTVs.
Key features
- Four 6-watt CREE LEDs, 24W total, 2904 raw lumens
- Spot beam: 825 lx at 10m, 82,500 cd, roughly 574m throw
- 9V-36V input, 2A draw at 13.8V
- IP68-sealed CNC 6061 aircraft-grade aluminum housing
- Stainless bracket fits most aftermarket bumper, ditch, chase, and roof mounts
Use cases

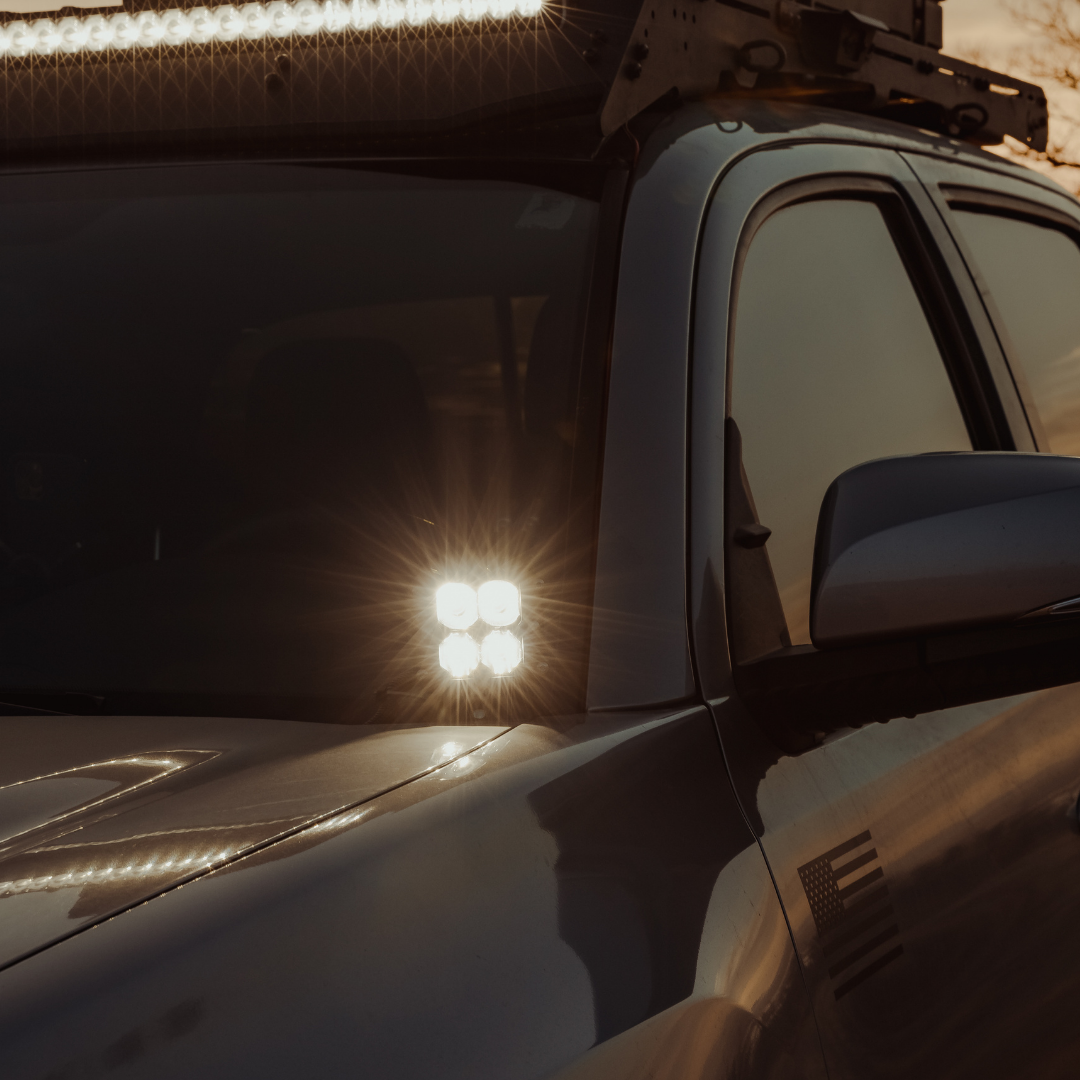

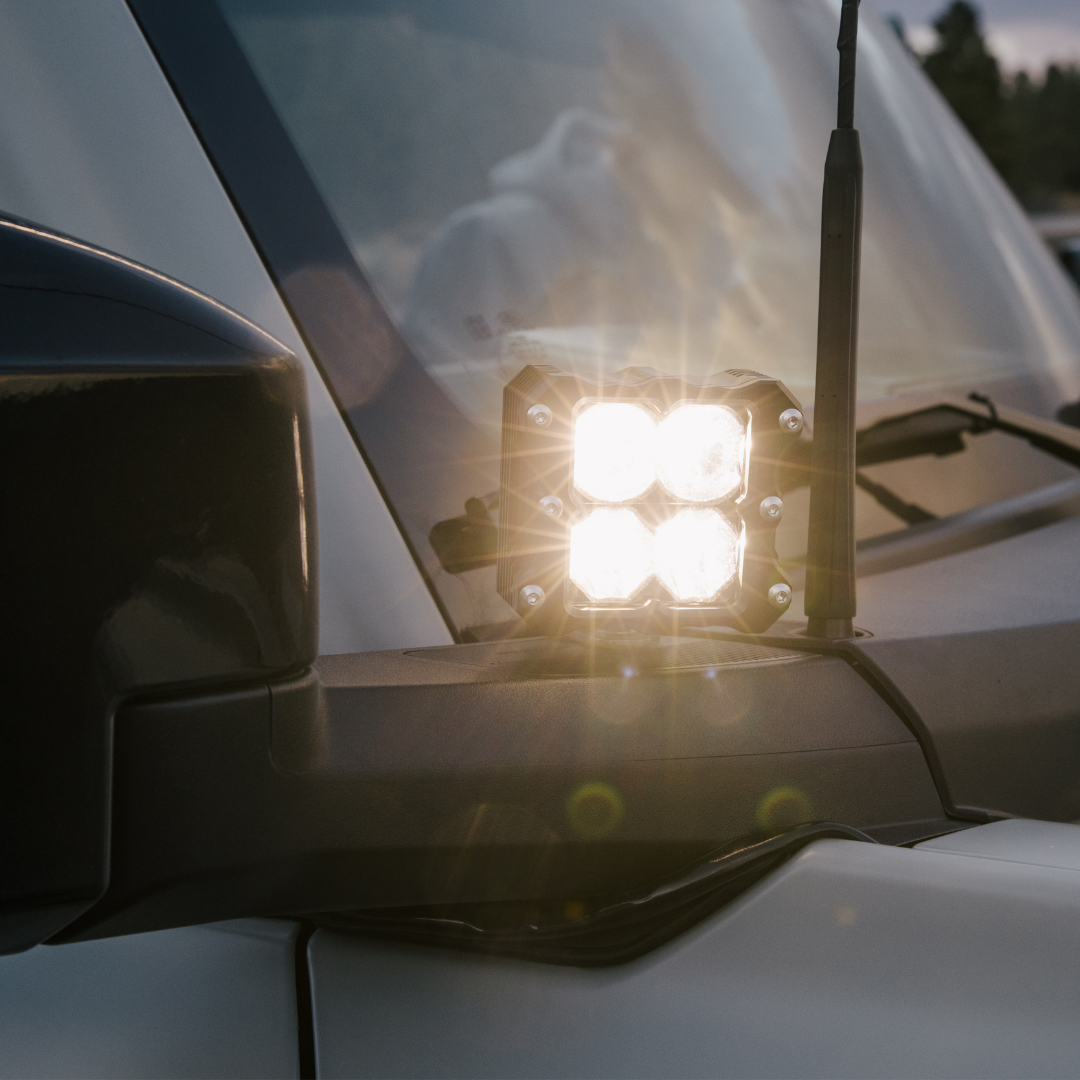

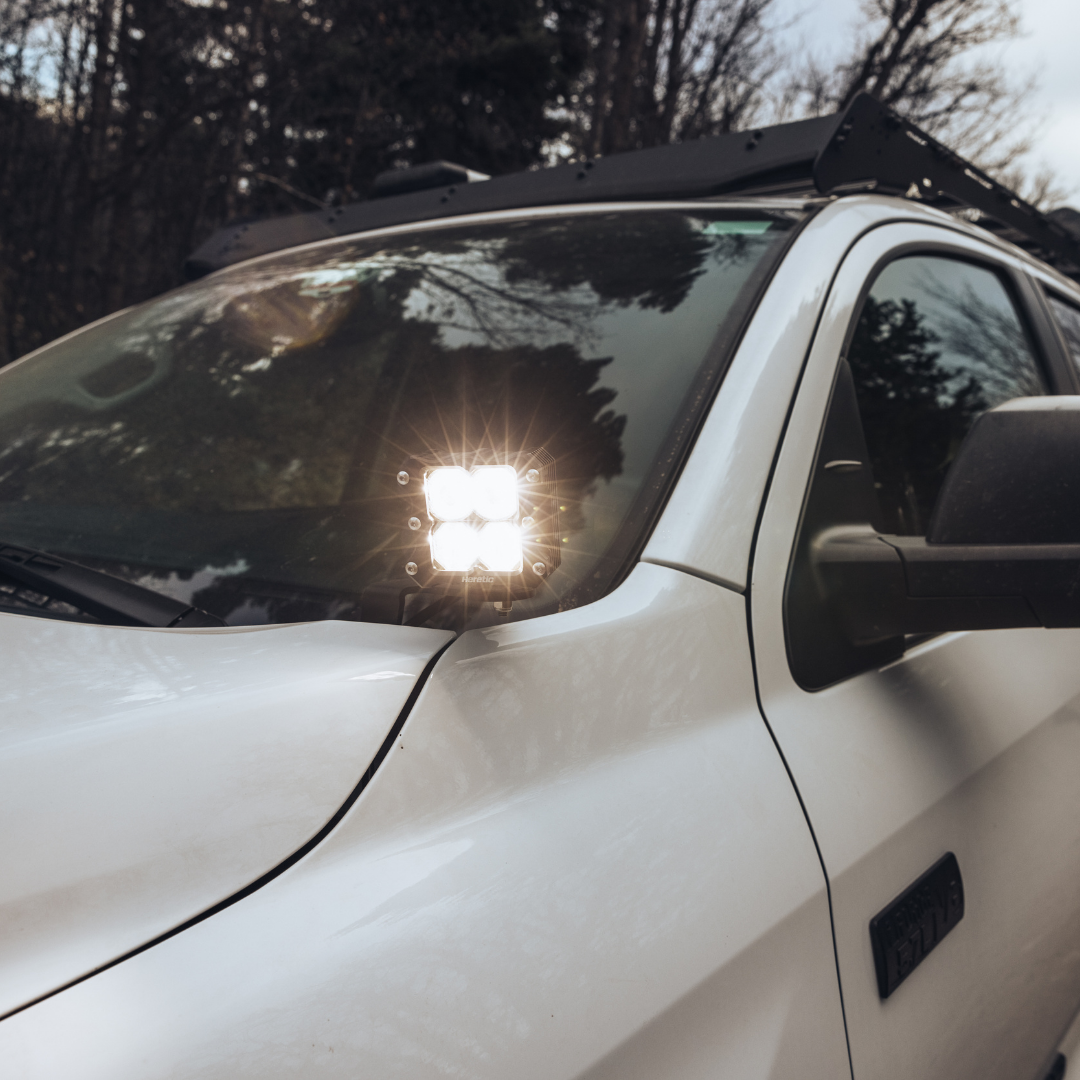

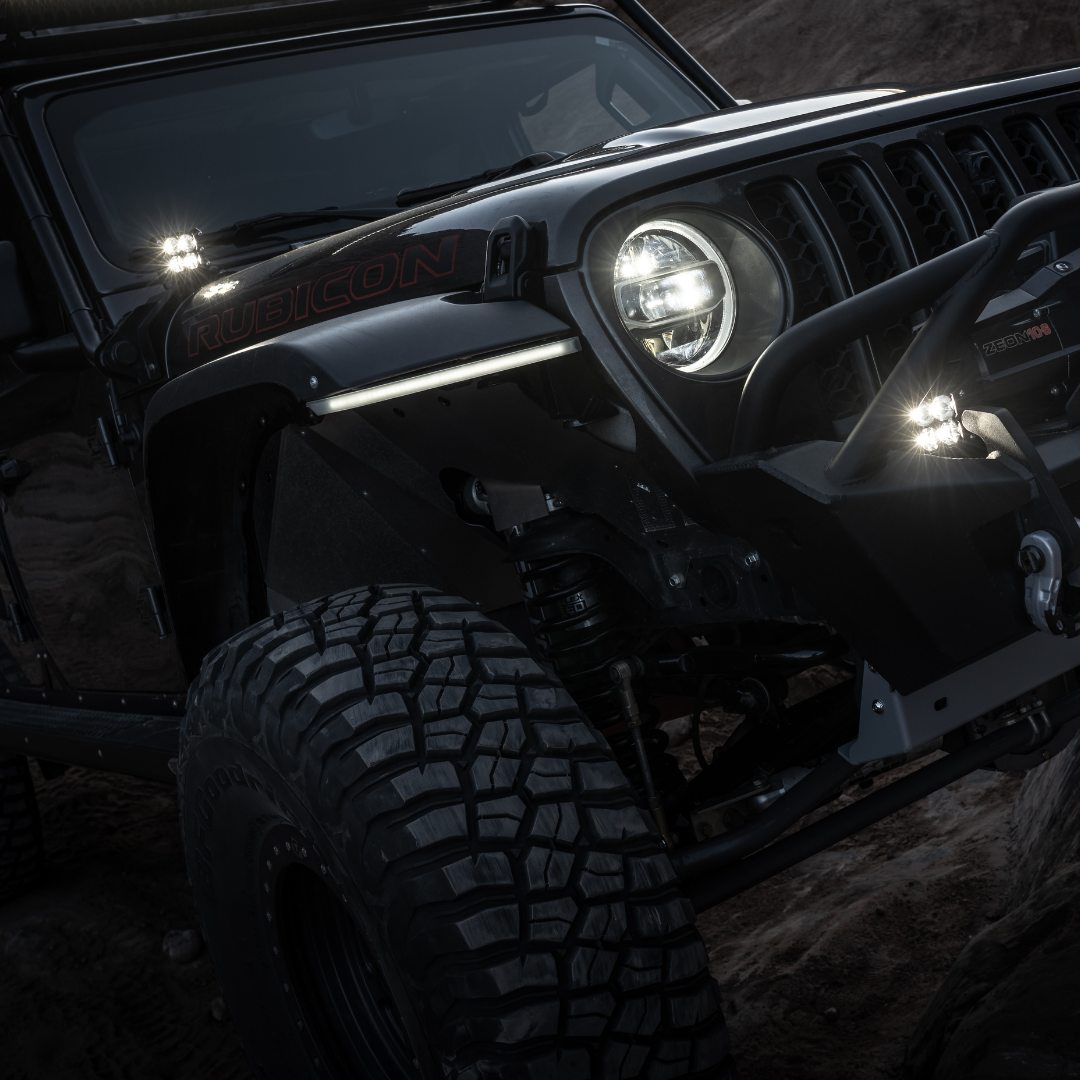

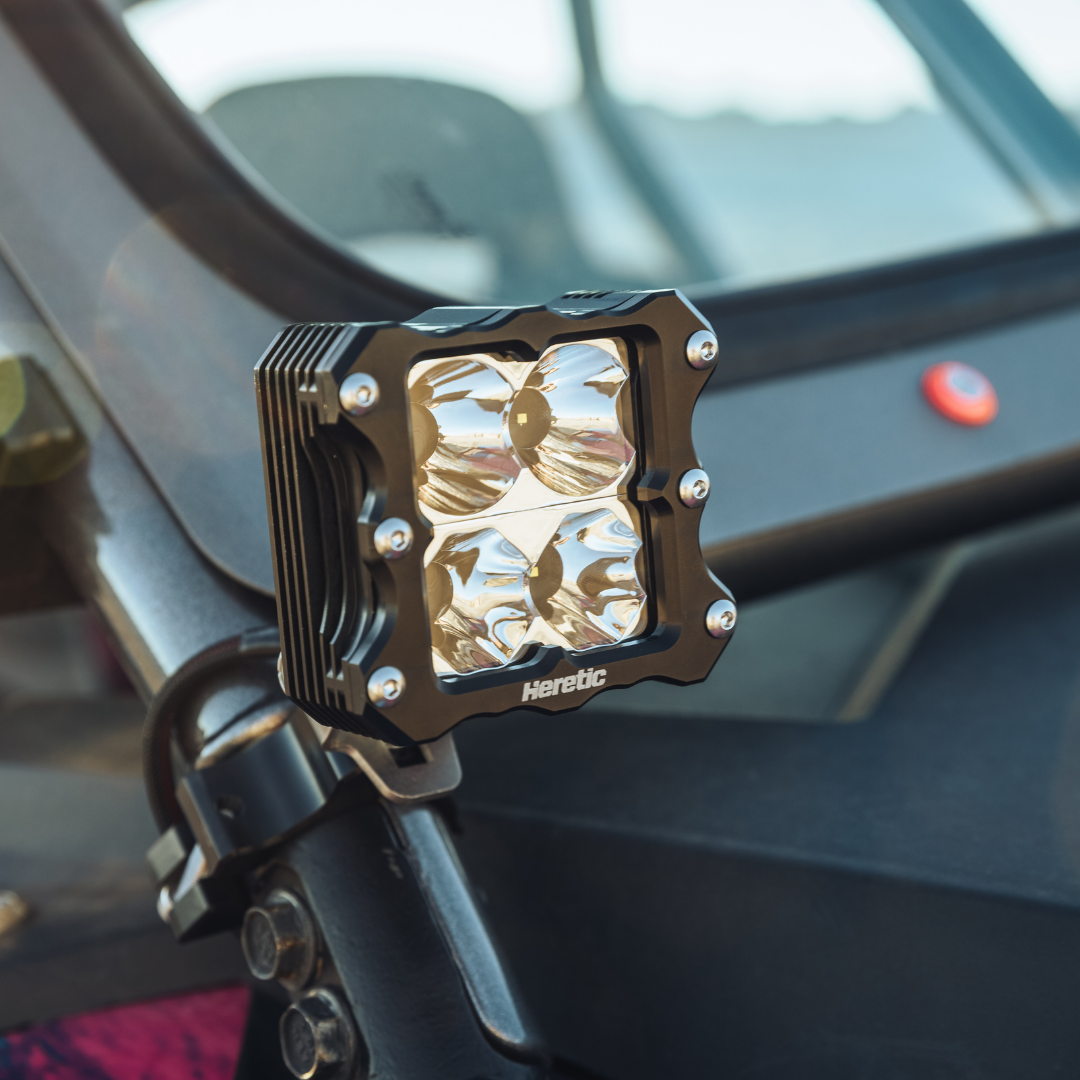

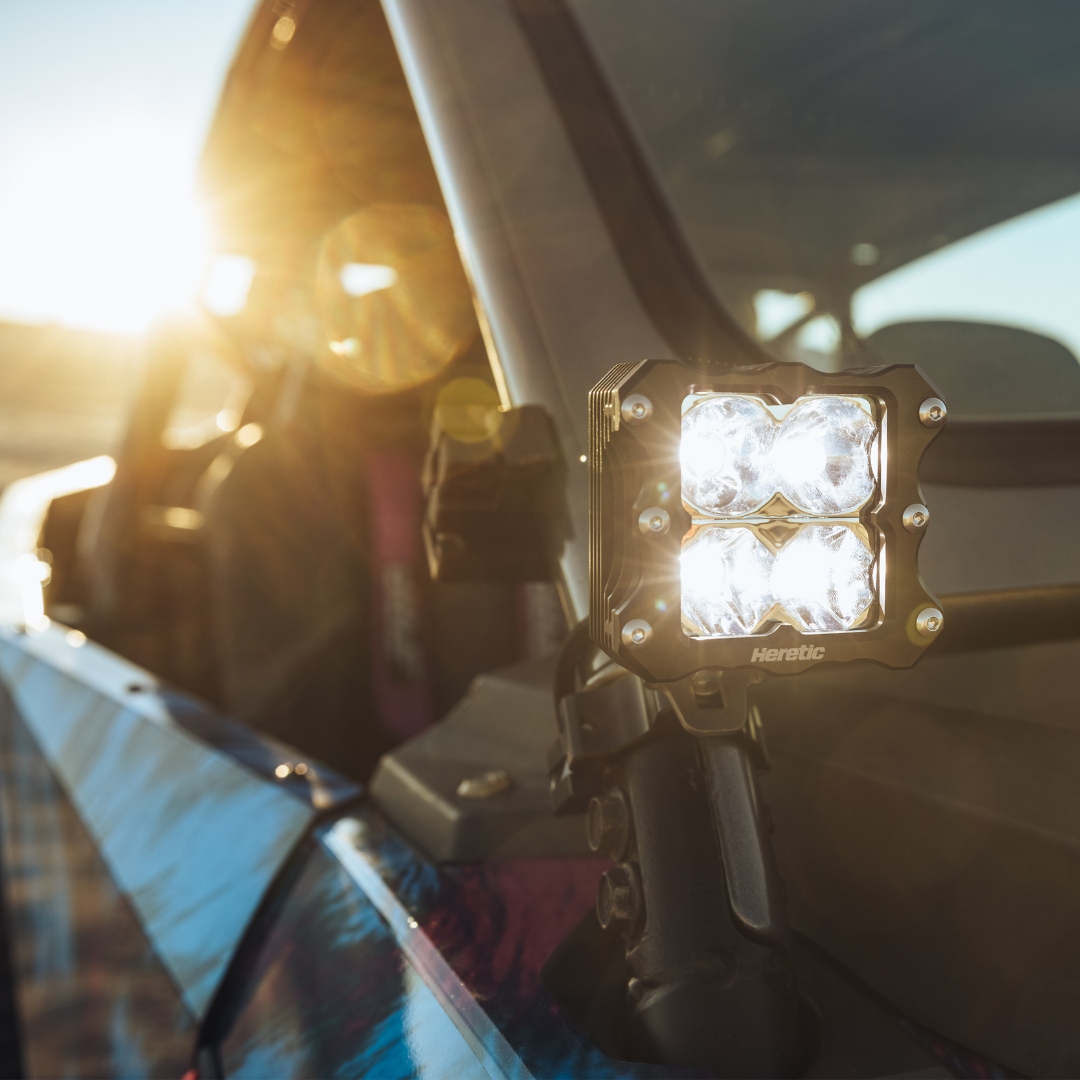

Mount it as a ditch light, A-pillar light, or bumper spot for high-speed trail and overland night driving. The spot pattern is best where long sightlines matter; pair it with a flood or combo pod elsewhere on the rig for close fill.
- LEDs: 4 x 6W CREE (24W total)
- Raw lumens: 2904 lm
- Beam pattern: Spot
- Lux at 10m: 825 lx
- Candela: 82,500 cd
- Beam throw: ~574 m
- Voltage: 9V-36V
- Current draw: 2A at 13.8V
- IP rating: IP68
- Housing: CNC 6061 aircraft-grade aluminum
- Lens: Clear
- Bezel: Black
- Dimensions (light only): 3 x 1.5 x 3 in
- Dimensions (with bracket): 3.2 x 2.5 x 3.4 in
- Mount: Stainless steel bracket
- Quantity: 1 pod
What's the difference between spot, flood, and combo?
This pod is the spot reflector. Spot throws a tight, far beam (825 lx at 10m, about 574m reach) for distance. Flood spreads wide and close; combo splits the difference. Pick spot when you want to see far at speed.
Is this one light or a pair?
One pod. If you want a matched pair, order two.
What vehicles and voltage does it support?
It runs on 9V to 36V, covering both 12V and 24V systems. Trucks, Jeeps, SUVs, and UTVs all work.
How much power does it draw?
2A at 13.8V, which is 24W. That's a light load on a wiring harness.
Is it waterproof?
Yes. It carries an IP68 rating, so it's sealed against dust and water, including submersion-grade exposure during water crossings.
Where does it mount?

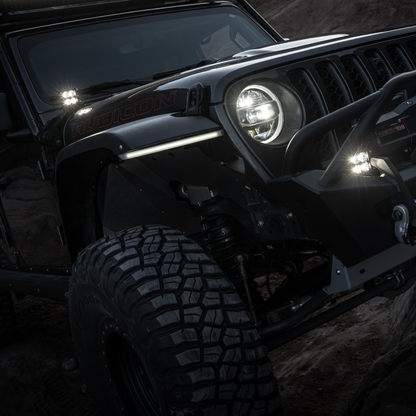

The stainless bracket fits most aftermarket bumper, ditch, chase, and roof rack mounts. Common spots are ditch-light brackets, A-pillars, and bumpers.
