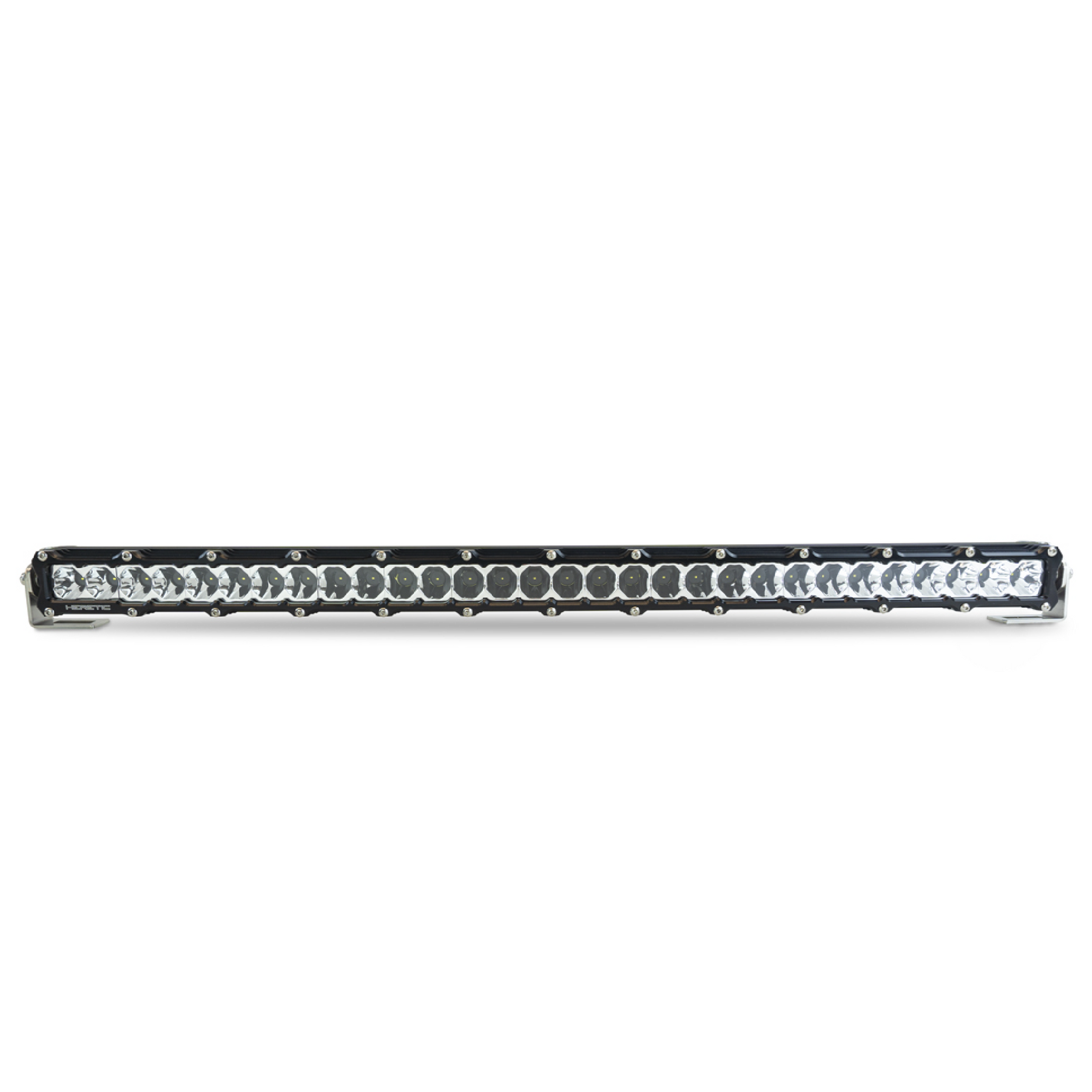

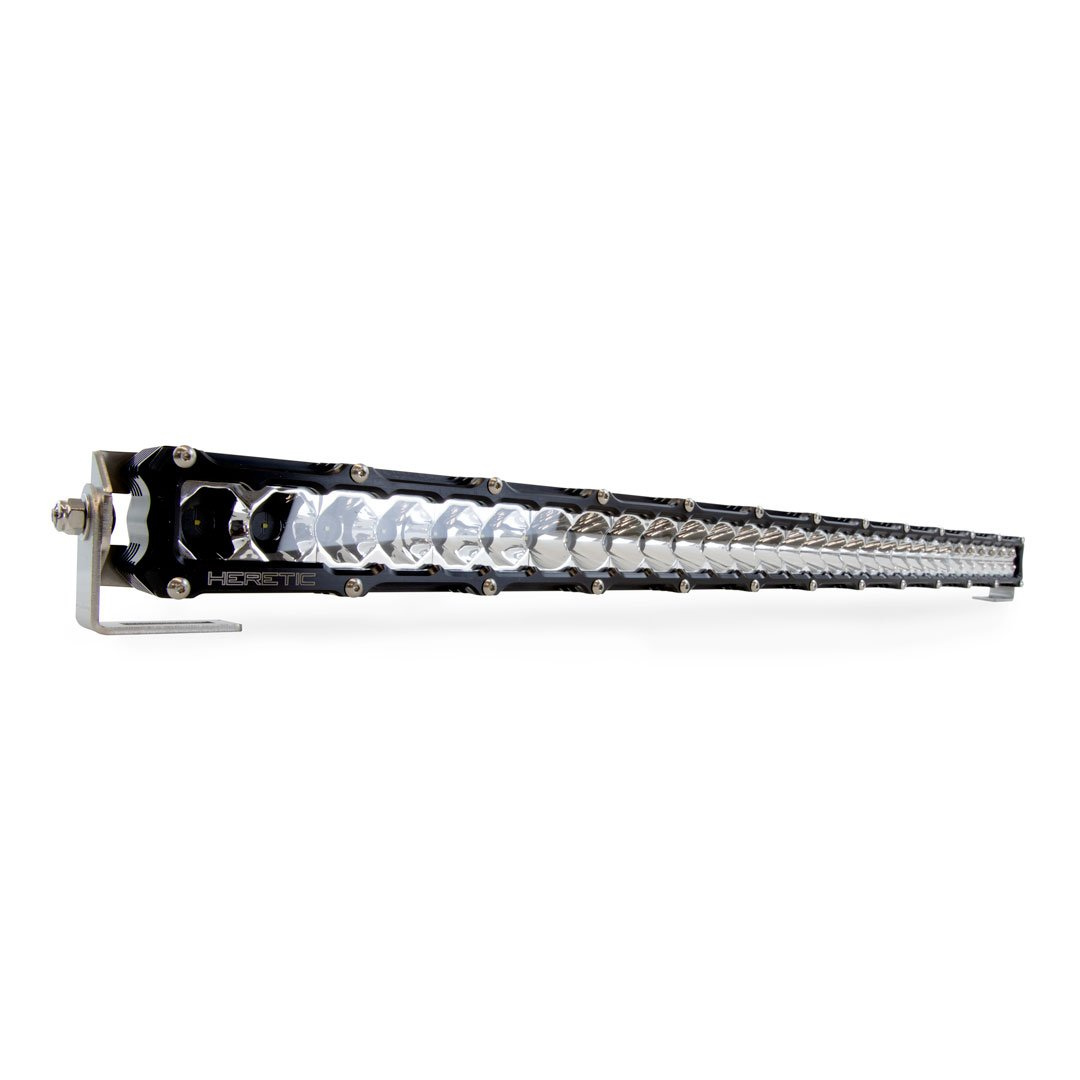

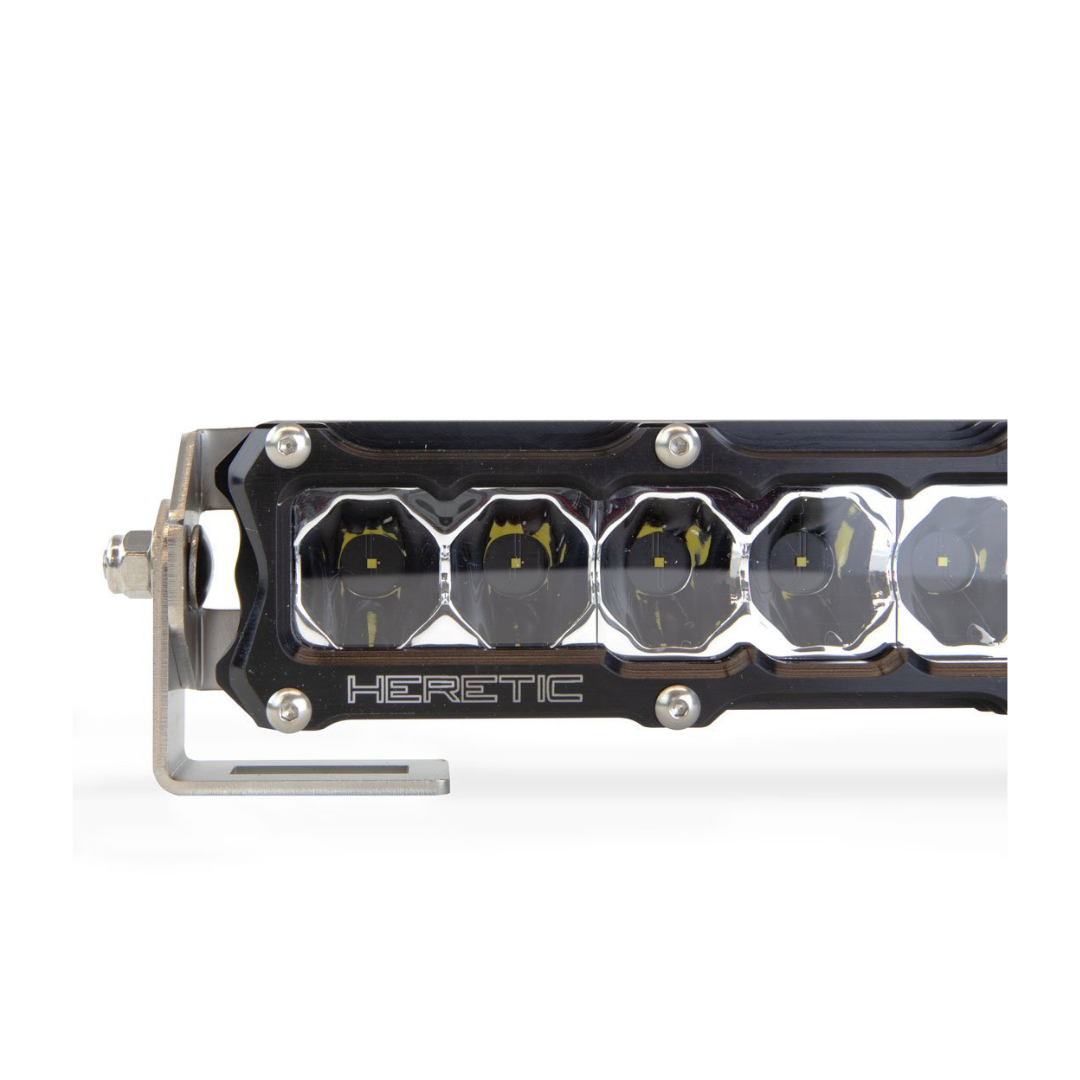

Heretic 6 Series Light Bar - 30 Inch: Black Bezel | Stainless Bolts | Combo Reflector | Clear Lens

Overview

The Heretic 6 Series 30-inch combo light bar is a forward-facing distance light with 21,780 raw lumens and a clear lens. The combo beam pairs a long-throw spot center with wide flood edges for both reach and side coverage.

Key features

• (30) 6-watt CREE LEDs, 21,780 raw lumens, 180W draw
• Combo beam: 423,900 cd, 4,239 lux at 10m, 1,302 m throw
• 9V–36V input (12V and 24V compatible), 17.9A at 13.8V
• IP68-sealed CNC 6061 billet aluminum housing, clear lens
• 31 x 1.5 x 2 in light body (32 in with bracket), ~5 lbs, stainless mounts included

Use cases

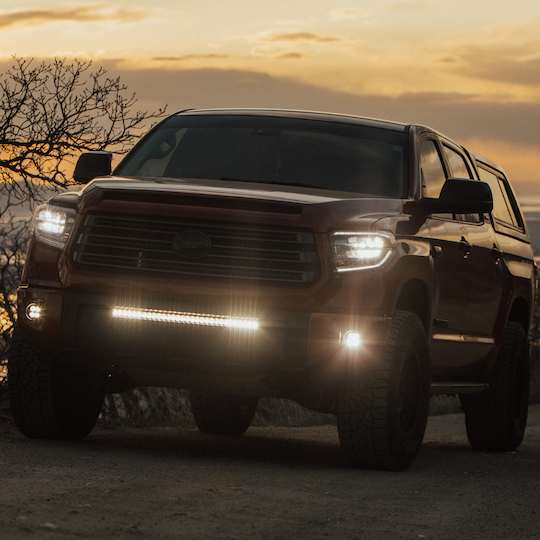

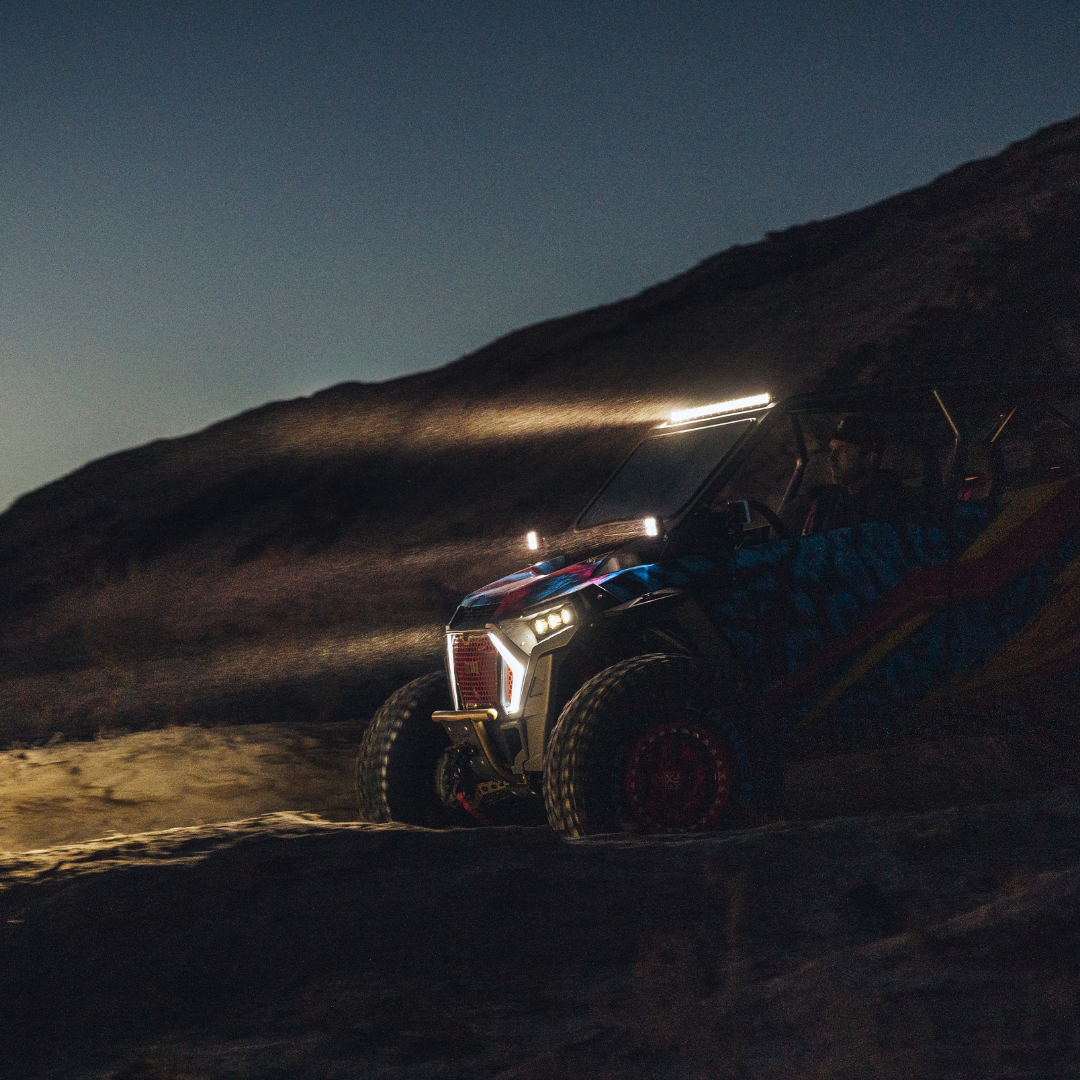

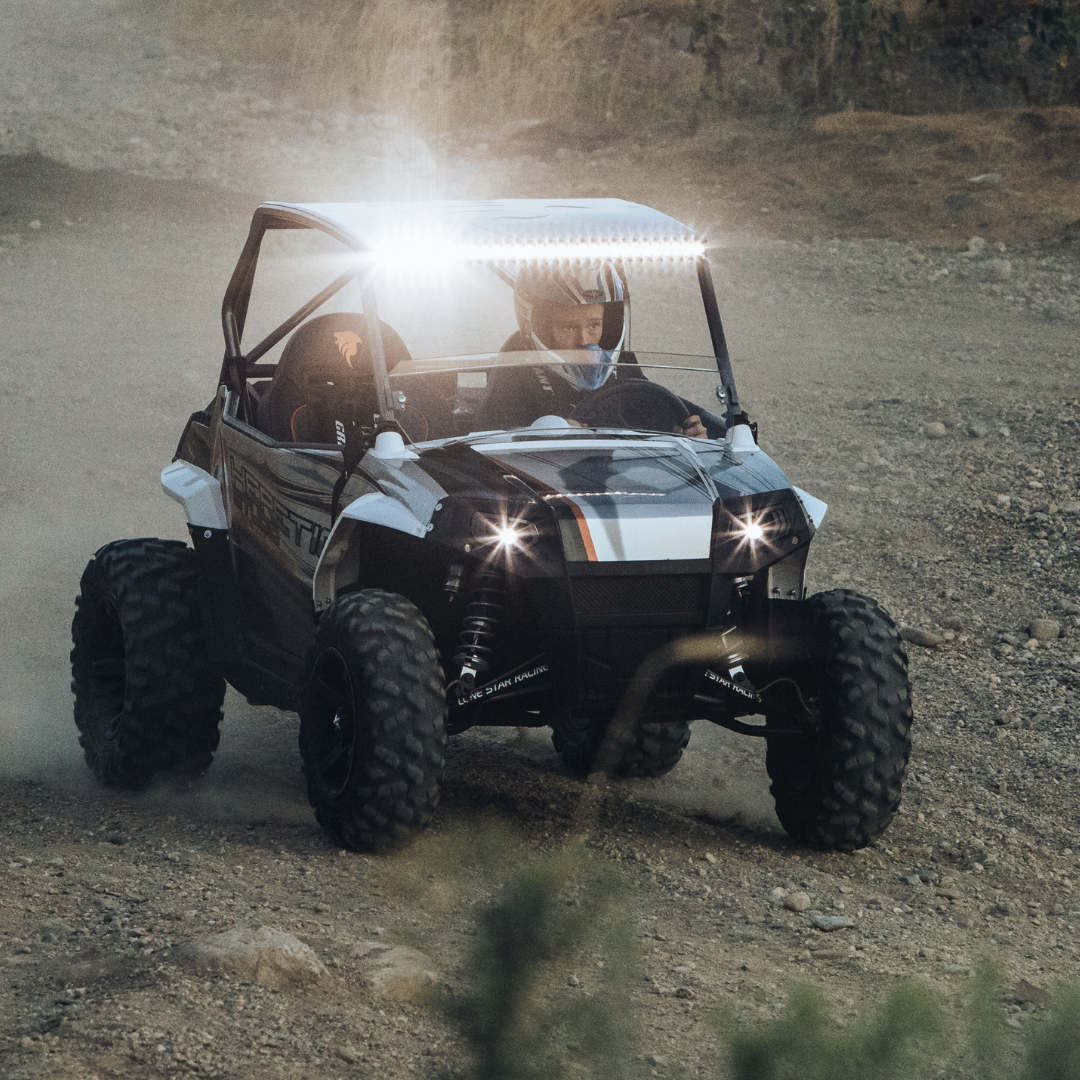

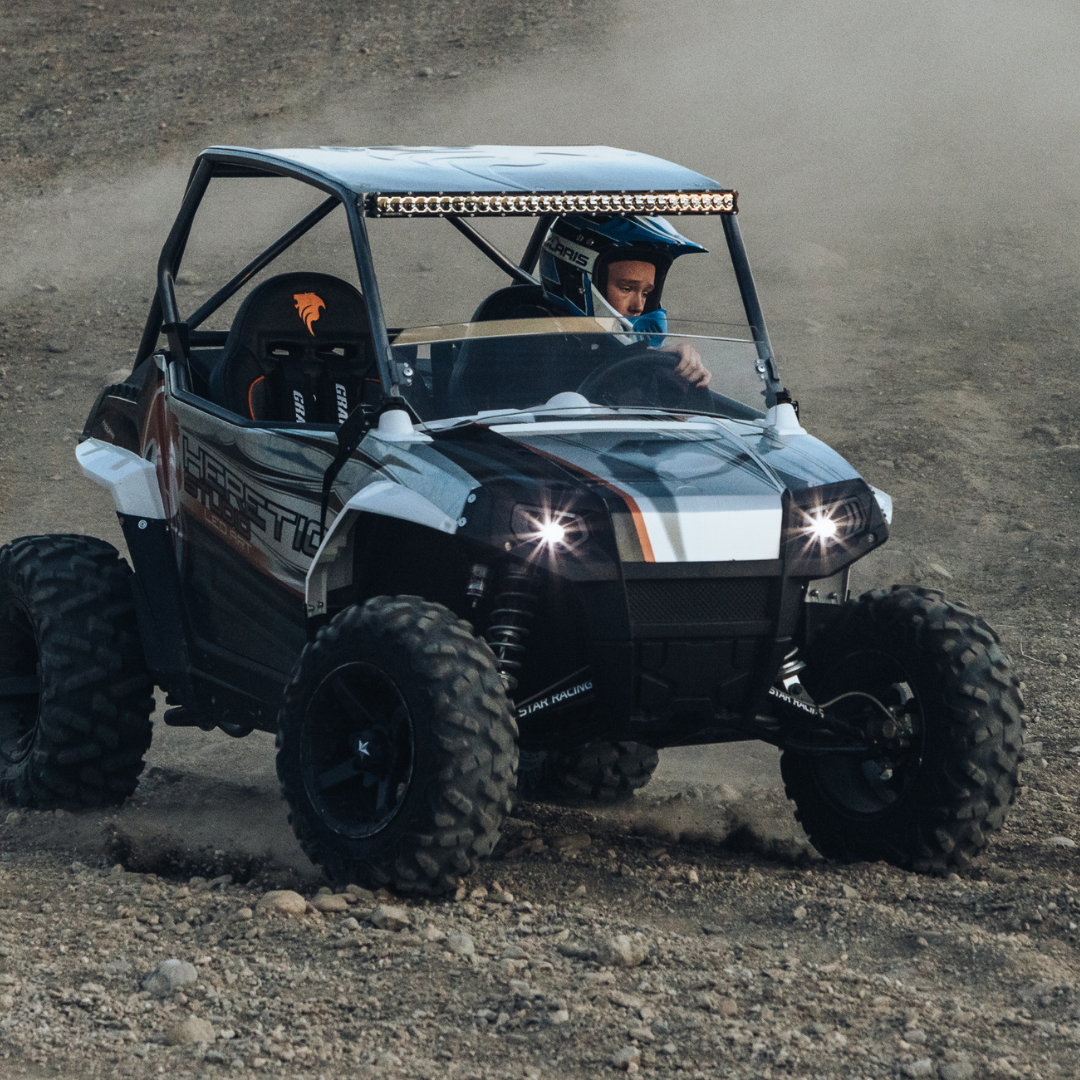

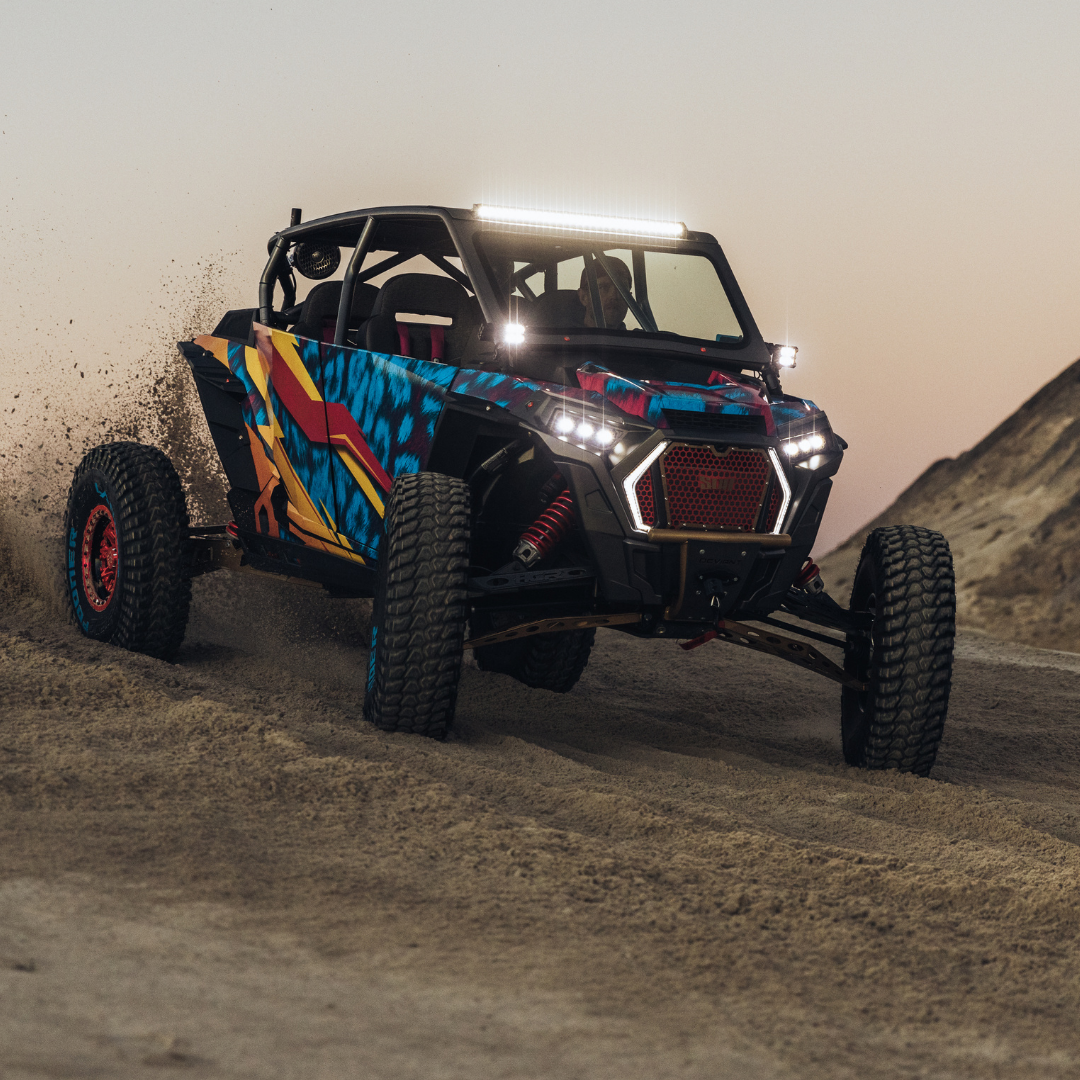

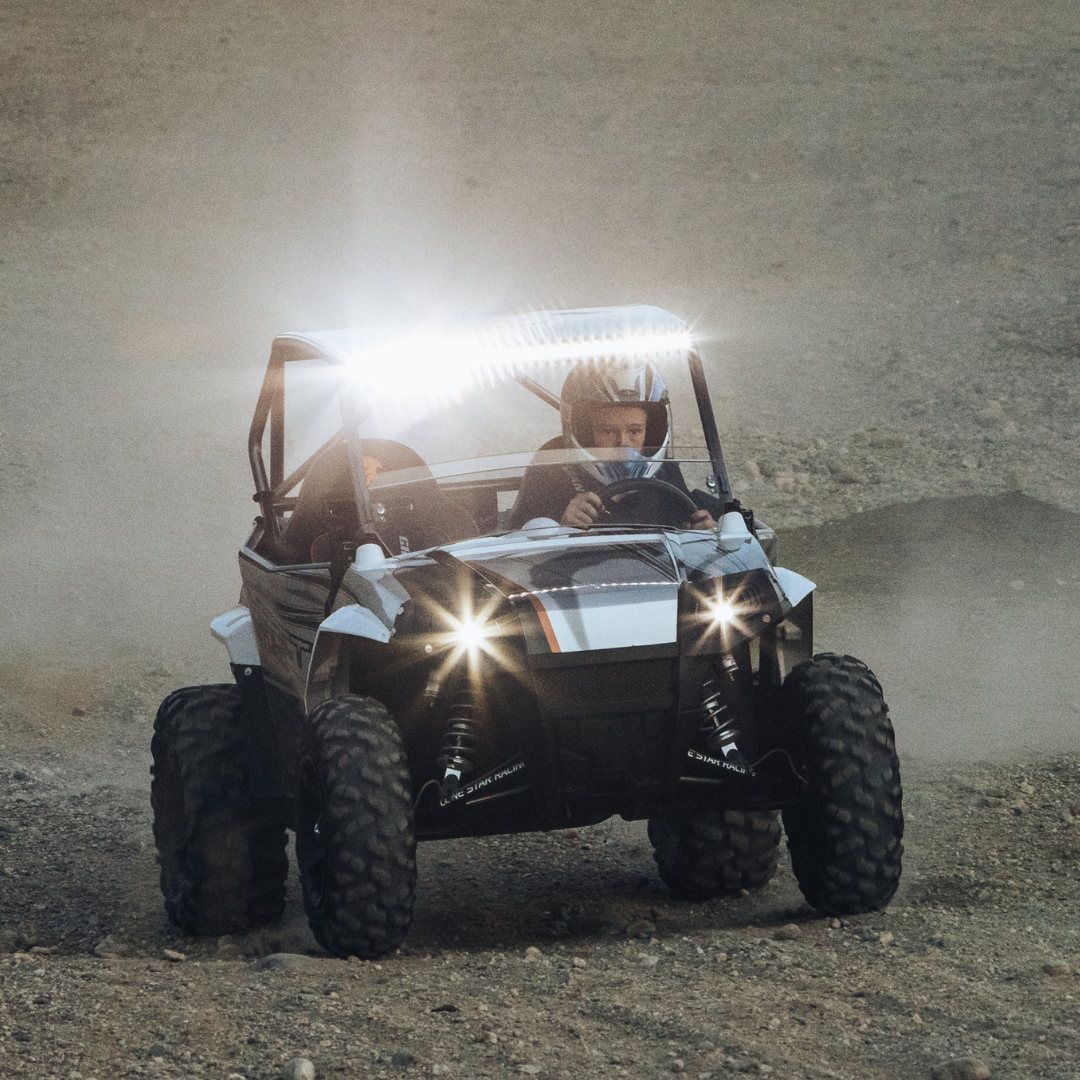

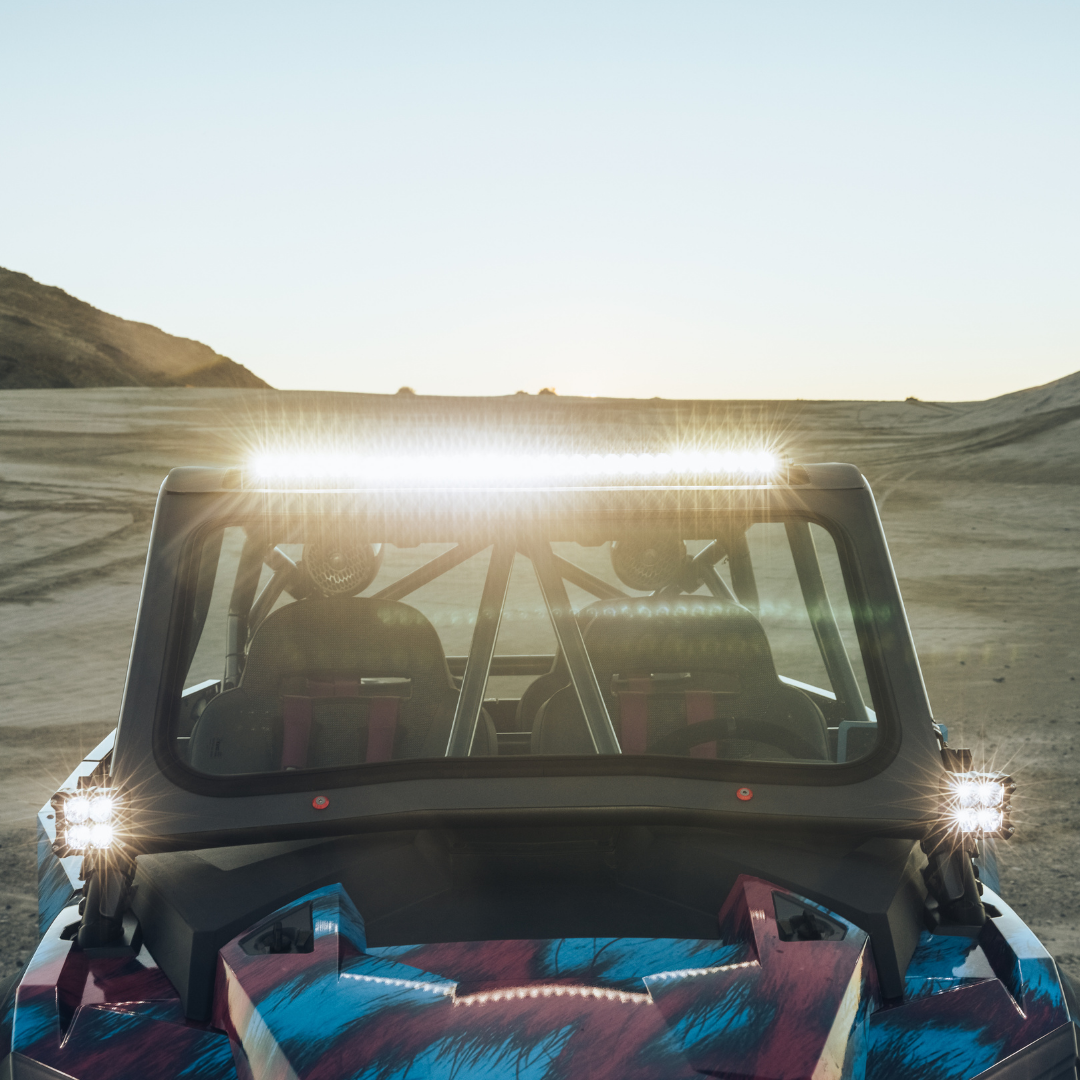

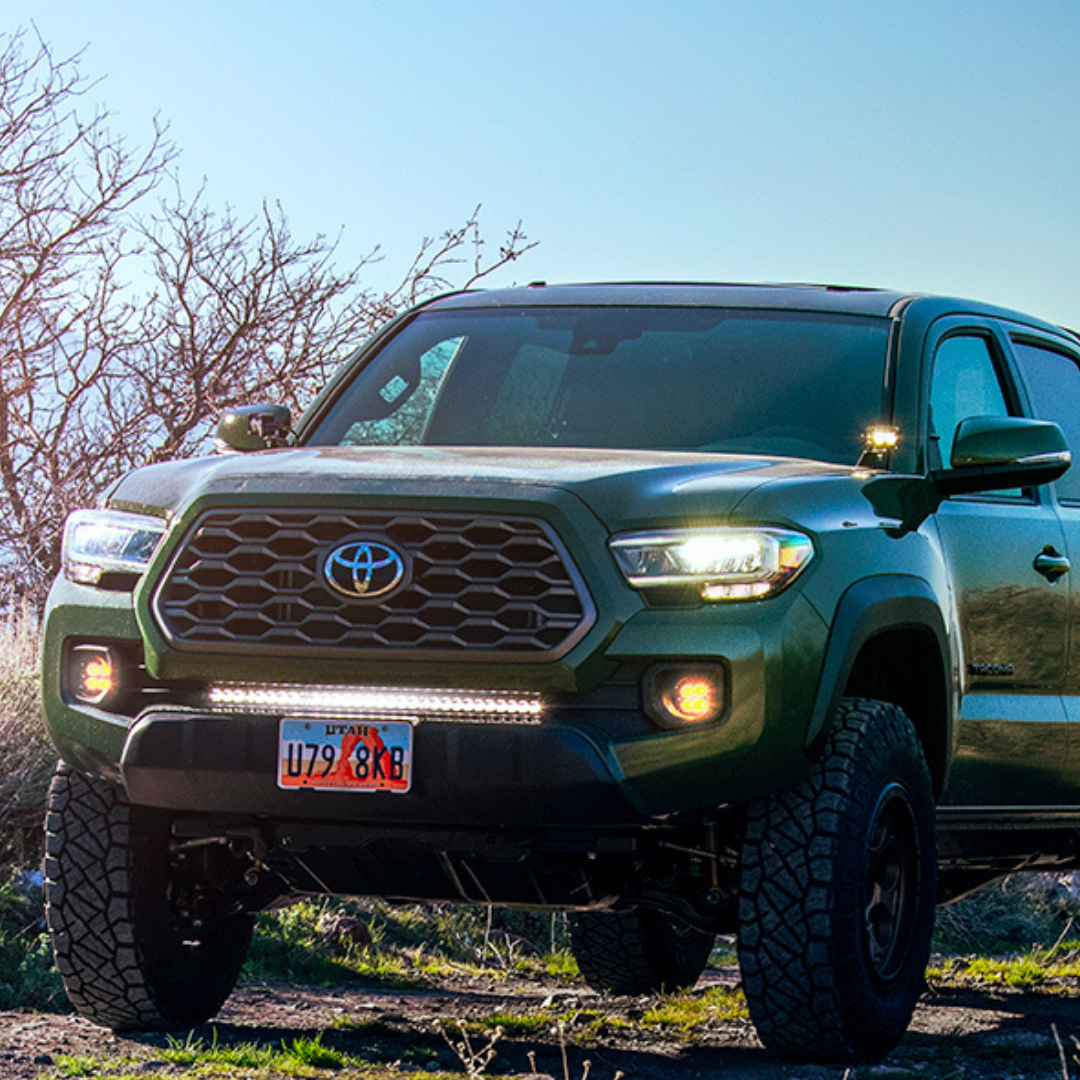

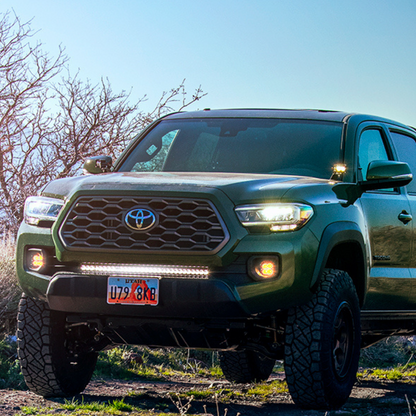

Built for forward-facing mounts: aftermarket roof racks, UTV roll cages, and behind-the-grille on trucks and SUVs. The combo beam is the all-rounder when you want one bar that reaches down a straightaway and still fills the edges through tight turns.

• Beam pattern: Combo
• Lens: Clear
• Bezel: Black
• LEDs: (30) 6-watt CREE
• Raw lumens: 21,780 lm
• Candela (combo): 423,900 cd
• Lux at 10m (combo): 4,239 lx
• Beam distance (combo): 1,302 m
• Wattage: 180W
• Amp draw at 13.8V: 17.9A
• Voltage range: 9V–36V
• IP rating: IP68
• Housing: CNC-cut 6061 billet aluminum

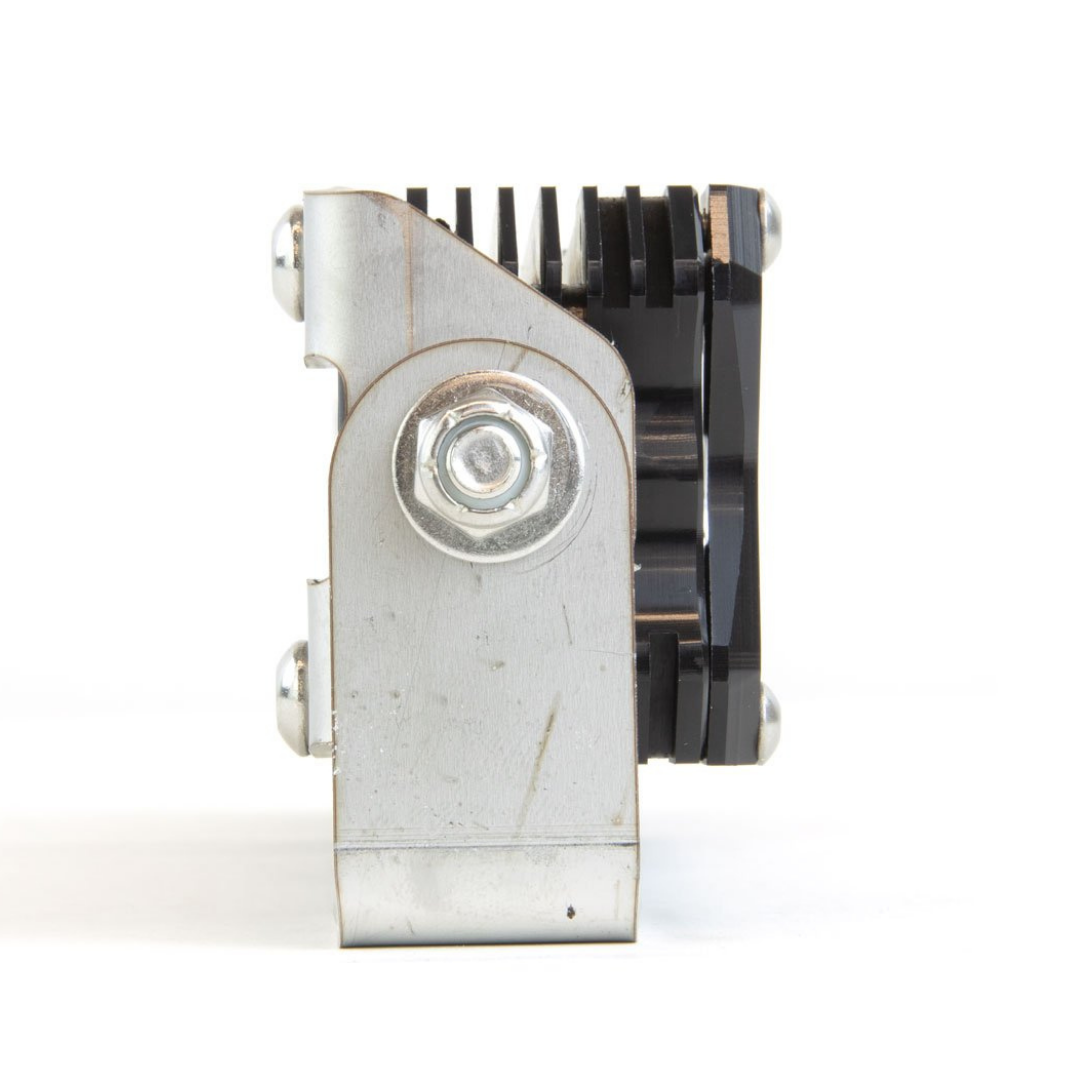

• Mounts: Stainless steel (included)
• Dimensions (light only): 31 x 1.5 x 2 in
• Dimensions (with bracket): 32 x 1.5 x 2.4 in
• Weight (light only): ~5 lbs

Combo, spot, or flood — what's the difference?

Combo blends a tight spot center for distance with wide flood edges for spread. This bar's combo beam throws 1,302 meters. The spot version reaches farther (1,573 m) but lights a narrower lane, and the flood version lights wide and close (726 m). Combo is the all-rounder.

How much power does it draw?

It pulls 180W, which is 17.9A at 13.8V, across a 9V to 36V range. That works on both 12V and 24V systems. Wire it through a relay and fuse rather than straight to a switch.

Is the clear lens right for me?

Clear lens is tuned for clear-night driving and maximum distance. If you spend most of your time in dust or fog, the amber lens version cuts through those conditions better. This is the clear-lens model.

Does it come with a mount?

It ships with stainless steel mounts. Many trucks and UTVs still need a vehicle-specific bracket to fit it behind the grille or on a roof rack, so check your application before ordering.

Is it waterproof?

Yes. It carries an IP68 rating, which means it is fully sealed against dust and rated for submersion. Rinse mud off and you're done — no special care needed.
