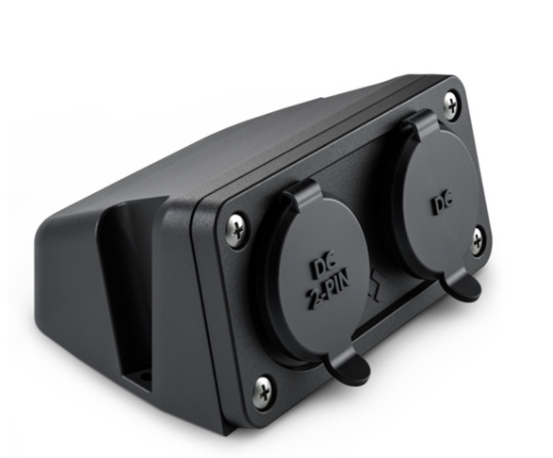

Dometic Hardwiring Kit - DC
Dometic Hardwiring Kit - DC
Supply power from your starter or an auxiliary battery to anywhere in your vehicle. Includes two output socket types: a standard DC socket and a 2-pin threaded socket. Mounts universally to a desired surface or panel. Supplied with a heavy-duty, 20 feet (6 meter) long 10 AWG cable with eyelets and a 15 amp blade fuse.
Consists of:- 1 x Standard DC outlet
- 1 x 2-pin threaded DC outlet
- 10 AWG wiring
- 89 mm (3.5 inch) D
- 114 mm (4.5 inch) W
- 56 mm (2.2 inch) H
- 1.2 kilograms (2.62 pounds)
No se pudo cargar la disponibilidad de retiro
Overview
A 12V DC hardwiring kit that runs battery power to a fixed two-outlet panel. Includes a 20 ft (6 m) 10 AWG cable, eyelet terminals, and an in-line 15 A blade fuse.
Key features
- 20 ft (6 m) of 10 AWG cable with eyelet terminals for a starter or auxiliary battery
- In-line 15 A blade fuse included (~180 W at 12V)
- Two outlets: standard 12V DC socket plus a 2-pin threaded DC socket
- Outlet housing mounts to any flat surface or panel: 4.5 in W x 3.5 in D x 2.2 in H
- 2.62 lb (1.2 kg) complete kit, terminals and fuse in the box
Use cases
Wire a portable 12V fridge or freezer to a starter or auxiliary battery, or add a fixed 12V outlet panel to a drawer, cargo area, or cabinet in an overland or off-road build. The dual-outlet panel lets one battery feed power both a plug-style cord and a hardwired threaded connection.
- Cable length: 20 ft (6 m)
- Cable gauge: 10 AWG
- Cable termination: eyelet (ring) terminals
- Fuse: 15 A blade fuse (in-line, included)
- Outlets: 1 standard 12V DC socket + 1 2-pin threaded DC socket
- Outlet housing (W x D x H): 4.5 in x 3.5 in x 2.2 in (114 x 89 x 56 mm)
- Mounting: universal, any flat surface or panel
- Power source: starter or auxiliary battery (12V)
- Approx. capacity: ~180 W at 12V (15 A)
- Weight: 2.62 lb (1.2 kg)
Can I connect this to my starter battery or do I need a second battery?
Either works. The 10 AWG cable ends in eyelet terminals that bolt to a starter or auxiliary 12V battery, then runs power to the outlet panel.
How long is the cable and what gauge?
20 ft (6 m) of 10 AWG cable, fused in line at 15 A.
Will the 15 A fuse handle a portable fridge?
15 A on a 12V feed is about 180 W, which covers most portable DC fridges and coolers. Check your appliance's rated draw, and avoid stacking high-draw loads on both outlets at the same time.
What can I plug into the two outlets?
One outlet is a standard 12V DC socket for plug-style cords; the other is a 2-pin threaded DC socket for a locked-in, vibration-resistant connection.
Does it come with the fuse and terminals?
Yes. The 15 A blade fuse and the eyelet (ring) terminals are included on the cable.
