Digital Single Tire Inflator
Digital Single Tire Inflator

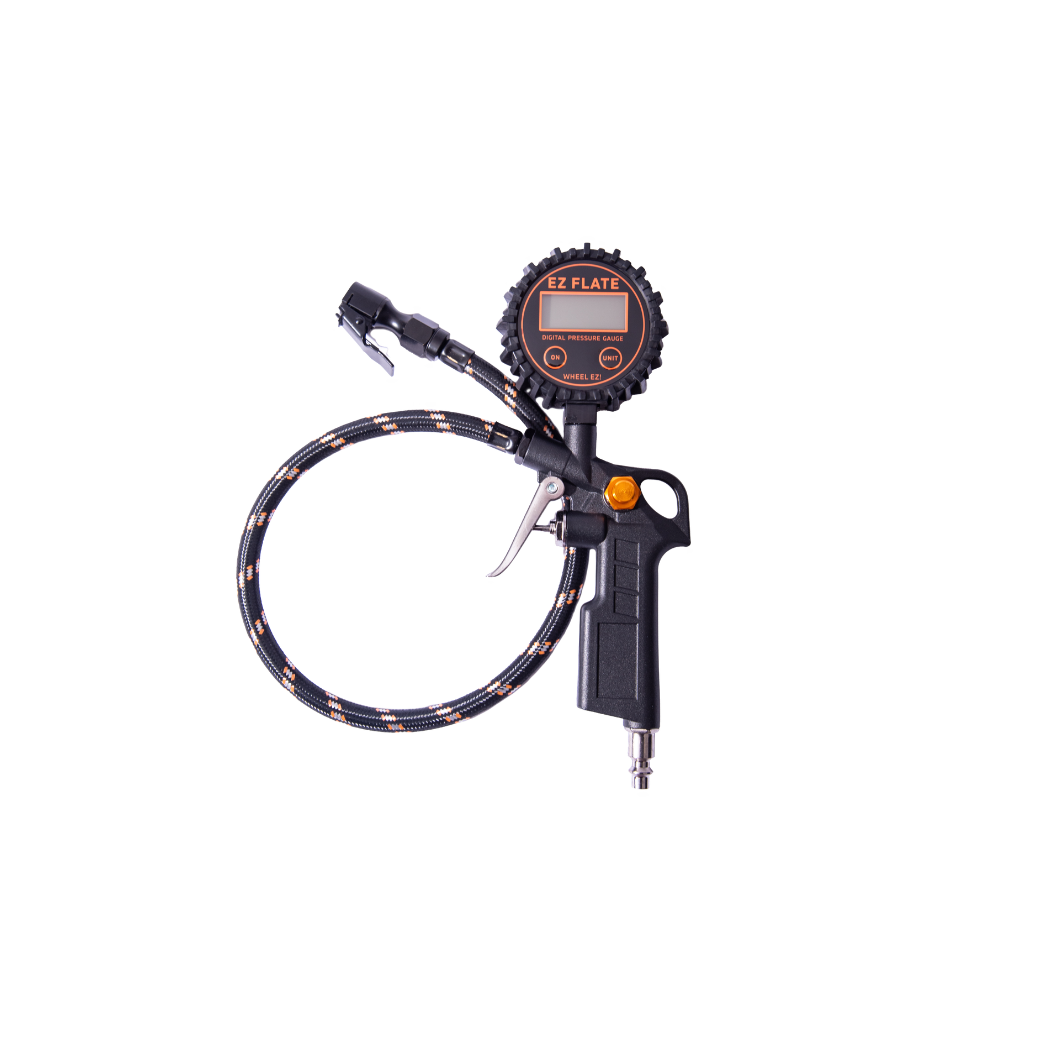

The EZ FLATE Digital Single Tire Inflator is the handheld business end of a tire air-up: a trigger gun with a braided hose, a clip-on air chuck, and a digital gauge that reads within 0.5% in 0.1 PSI steps across a 5 to 120 PSI range. Squeeze the trigger to add air, press the bleed valve to let it out, and watch the number land on the gauge instead of guessing.
The gauge head switches between PSI, BAR, Kar, and Kgf/cm2, runs on two AAA batteries (included), and shuts itself off about a minute after you let go of the pressure so the cells last. The clip-on chuck locks onto most valve stems hands-free, so you can set one tire and walk to the next without holding anything. It works one tire at a time, which is the point: deliberate, accurate air management at each corner.
The inflator threads onto any standard compressor air line and is built around the EZ FLATE M.O.A.B and C.A.S.E compressors for the cleanest fit. Backed by a one-year hassle-free warranty.
No se pudo cargar la disponibilidad de retiro
Overview
A handheld trigger inflator with a 0.5%-accurate digital gauge, braided hose, and clip-on chuck. Adds or releases air one tire at a time and reads pressure to 0.1 PSI.
Key features
- Digital gauge accurate to within 0.5%, displayed in 0.1 PSI increments over a 5 to 120 PSI range
- Push-to-inflate trigger with a bleed valve for fine pressure drops
- Clip-on air chuck that locks hands-free onto most valve stems
- Braided hose for abrasion resistance on the trail
- Four-unit readout (PSI, BAR, Kar, Kgf/cm2) on a 2x AAA gauge head with 1-minute auto shut-off
- Threads onto any standard compressor line; tuned for EZ FLATE M.O.A.B and C.A.S.E compressors
Use cases
Built for airing down before a trail run and airing back up after, one corner at a time. The clip-on chuck and bleed valve make it a two-direction tool, so the same gun that fills a tire to highway pressure also drops it for sand or rock without swapping hardware.
- Gauge accuracy: within 0.5%
- Gauge resolution: 0.1 PSI
- Pressure range: 5–120 PSI
- Units: PSI / BAR / Kar / Kgf/cm2
- Gauge power: 2x AAA (included)
- Auto shut-off: ~1 minute after pressure release
- Hose: braided
- Air chuck: clip-on, fits most valve stems
- Trigger: push-to-inflate with bleed valve
- Compatibility: any standard compressor line; best with EZ FLATE M.O.A.B / C.A.S.E
- Ship weight: 907 g
- Warranty: one-year hassle-free
Can it deflate tires, or only inflate?
Both. Clip the chuck on and press the bleed valve to drop pressure for sand or rock, then squeeze the trigger to air back up after. It is the same gun in both directions.
How accurate is the digital gauge?
It reads within 0.5% in 0.1 PSI steps across a 5 to 120 PSI range. Plenty precise for setting trail and highway pressures, though like any handheld gauge it is worth a quick spot-check against your TPMS now and then.
Will it work with a compressor that is not EZ FLATE?
Yes. It threads onto any standard compressor air line. It is engineered around the EZ FLATE M.O.A.B and C.A.S.E compressors for the cleanest fit, but it is not locked to them.
Does the clip-on chuck leak while I read the gauge?
Not if you clip it on square to the valve stem. A crooked clip is what causes the usual hiss on any clip-on chuck, so seat it straight and it holds.
Does it come with batteries?
Yes. The digital head ships with two AAA batteries installed and shuts off on its own about a minute after you release pressure, so they last. Keep a spare pair in the kit.
