Crosswing Vertical Bracket
Crosswing Vertical Bracket
Go Direct with T-slots or Bolts

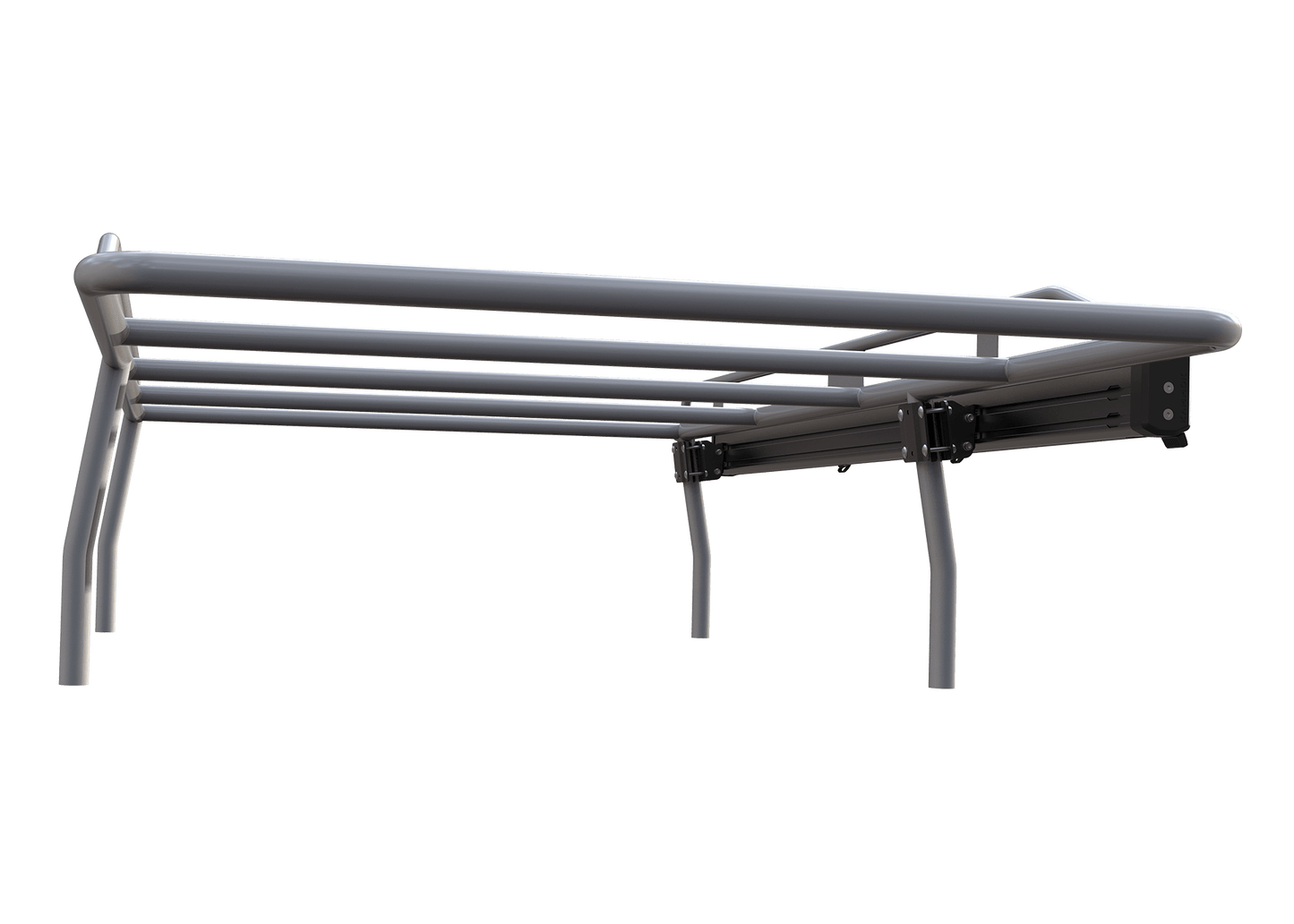

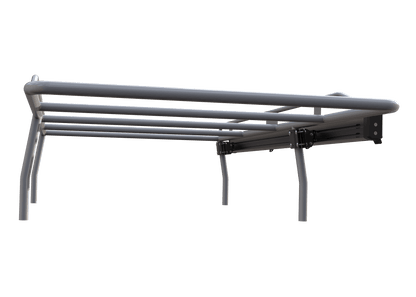

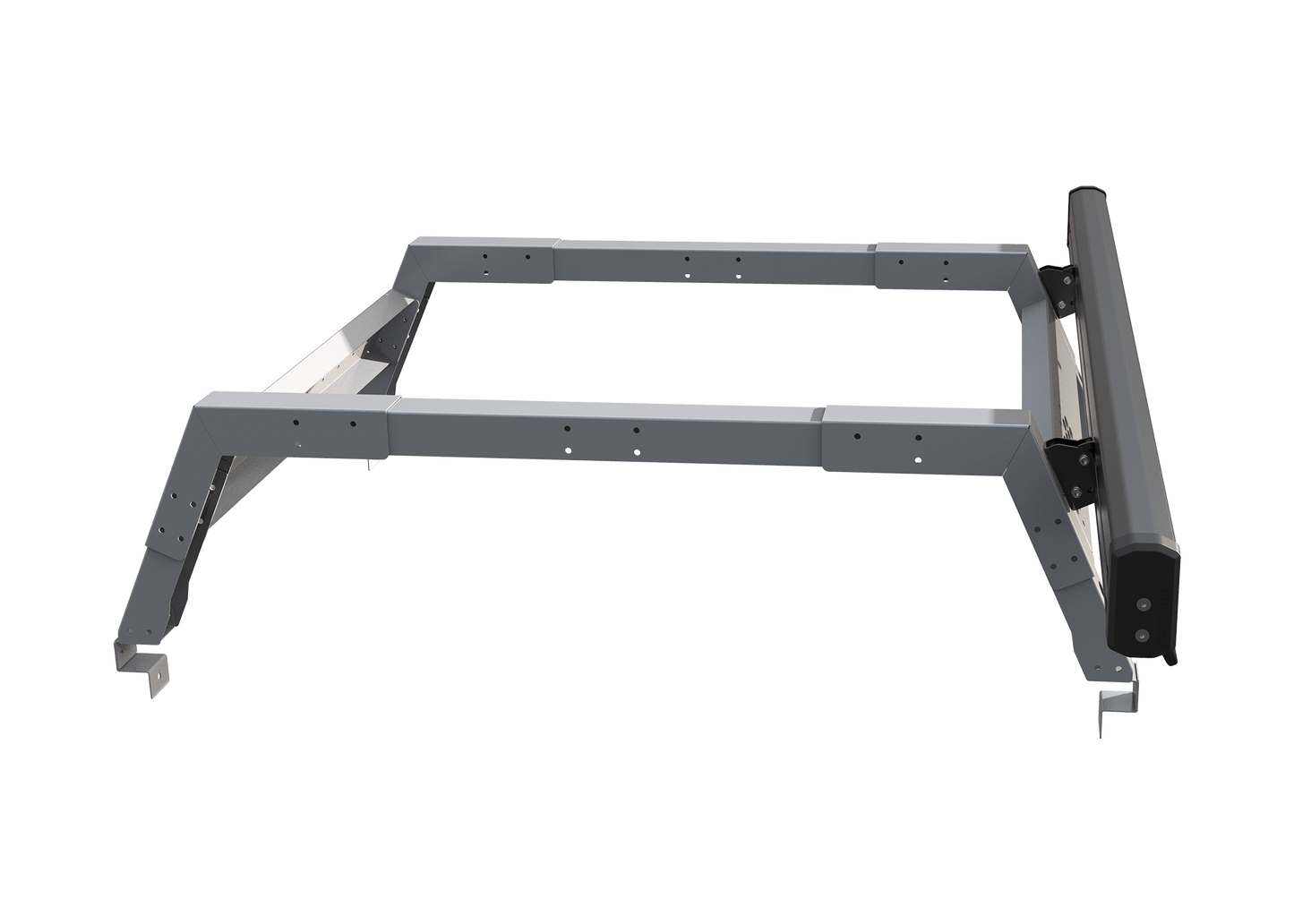

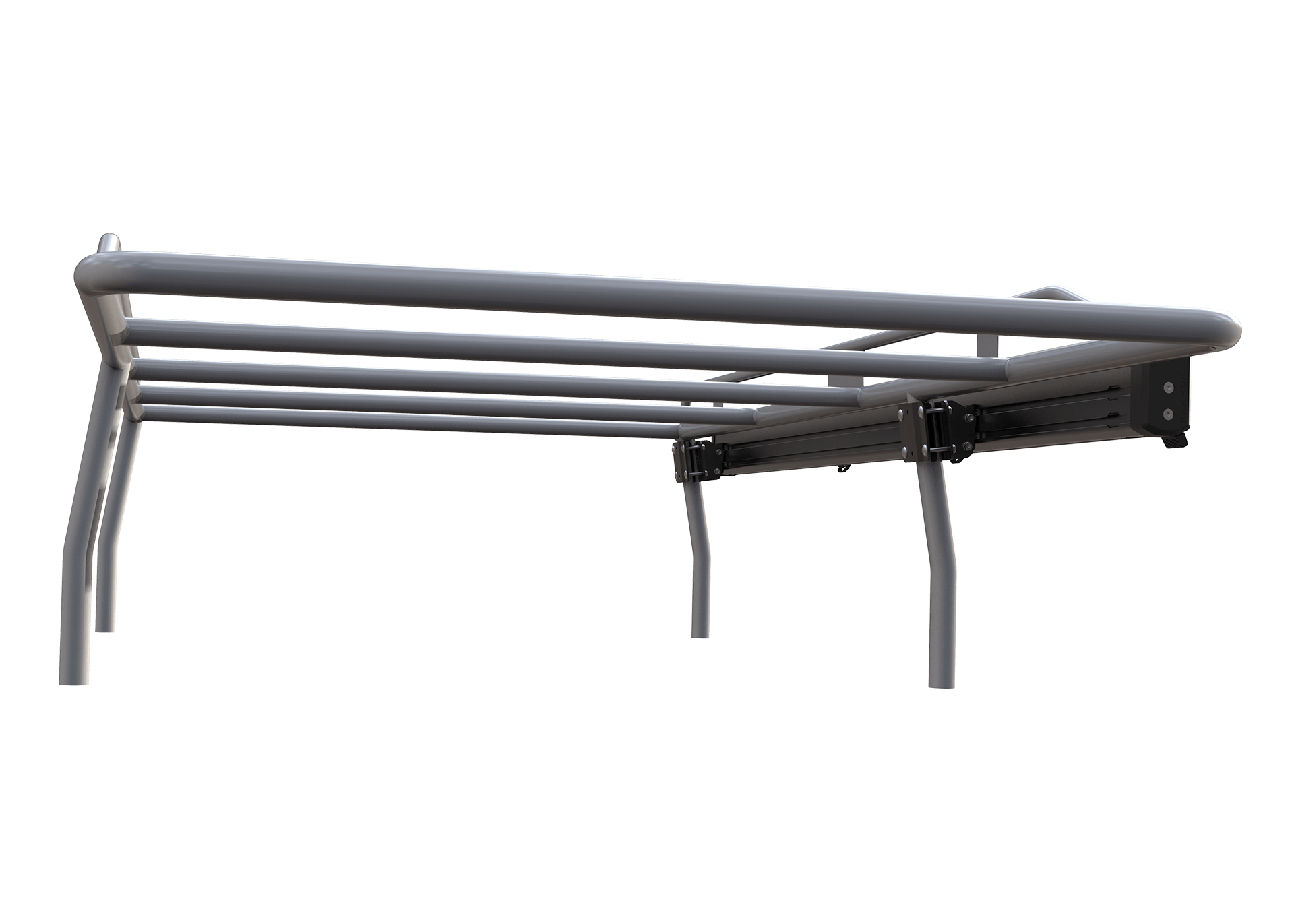

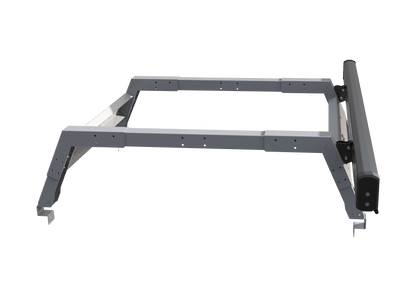

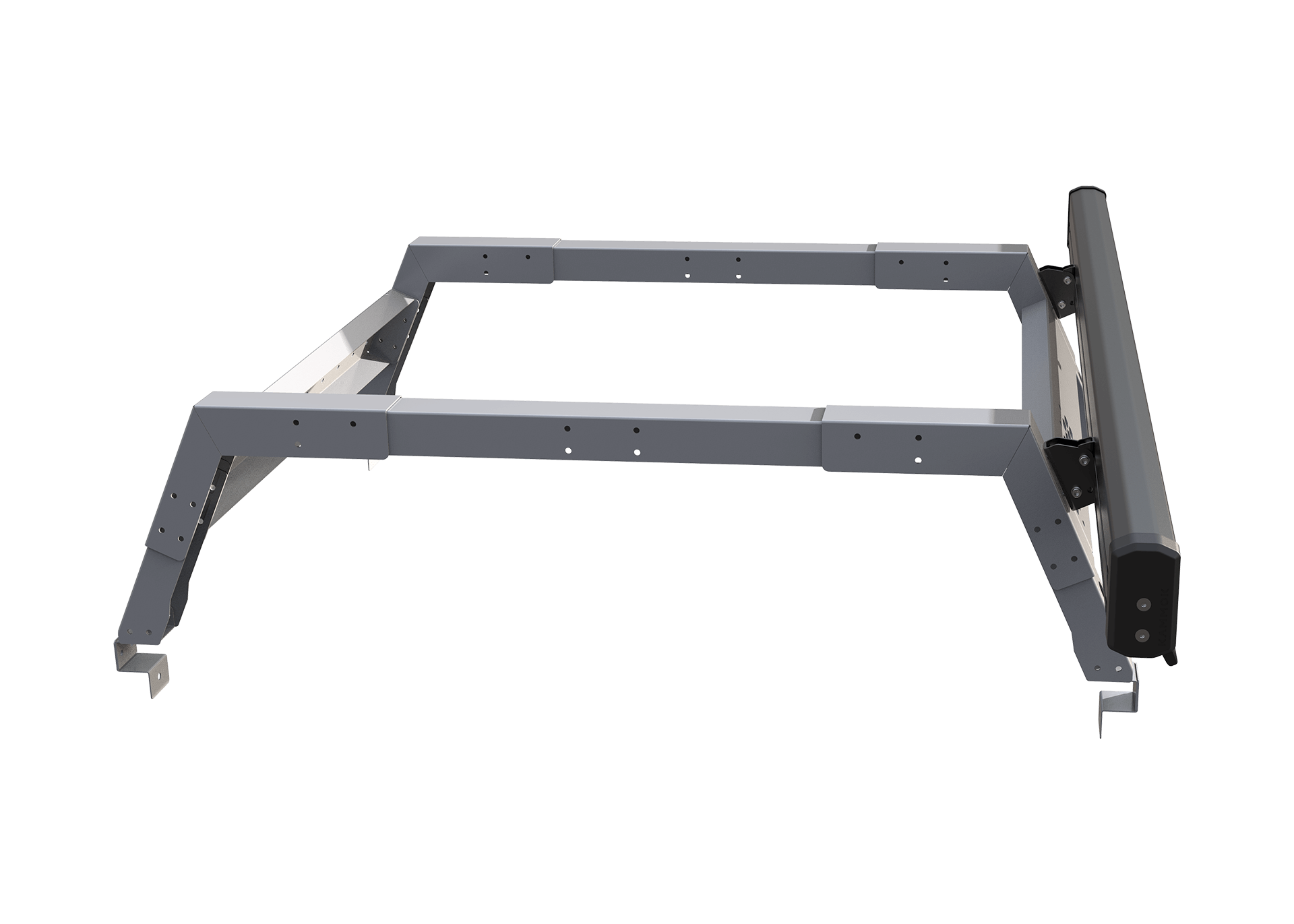

Mount the Crosswing to any vertical surface including the side of platform-style racks, campers, and more with T-slot systems or bolts.
Pair with Talon Mounts
Combine the Vertical Bracket with your Crosswing’s included Talon Mounts to clamp to racks with vertical bars such as utility trucks.
Rotate between vehicles
Order an additional pair of Talon Mounts with the Vertical Bracket to quickly attach the Crosswing Car Awning to a secondary vehicle.
Unlimited Mounting Potential
The Vertical Bracket makes it possible to mount the Crosswing on nearly any weight bearing surface. Turn the Crosswing into an outdoor patio awning or custom mount to the side of an RV.
Simple, One-Person Install
All Crosswing mounting solutions feature quick-attach brackets, allowing you to position the Crosswing with ease after installing the mounts on your vehicle.
Adjustable Height

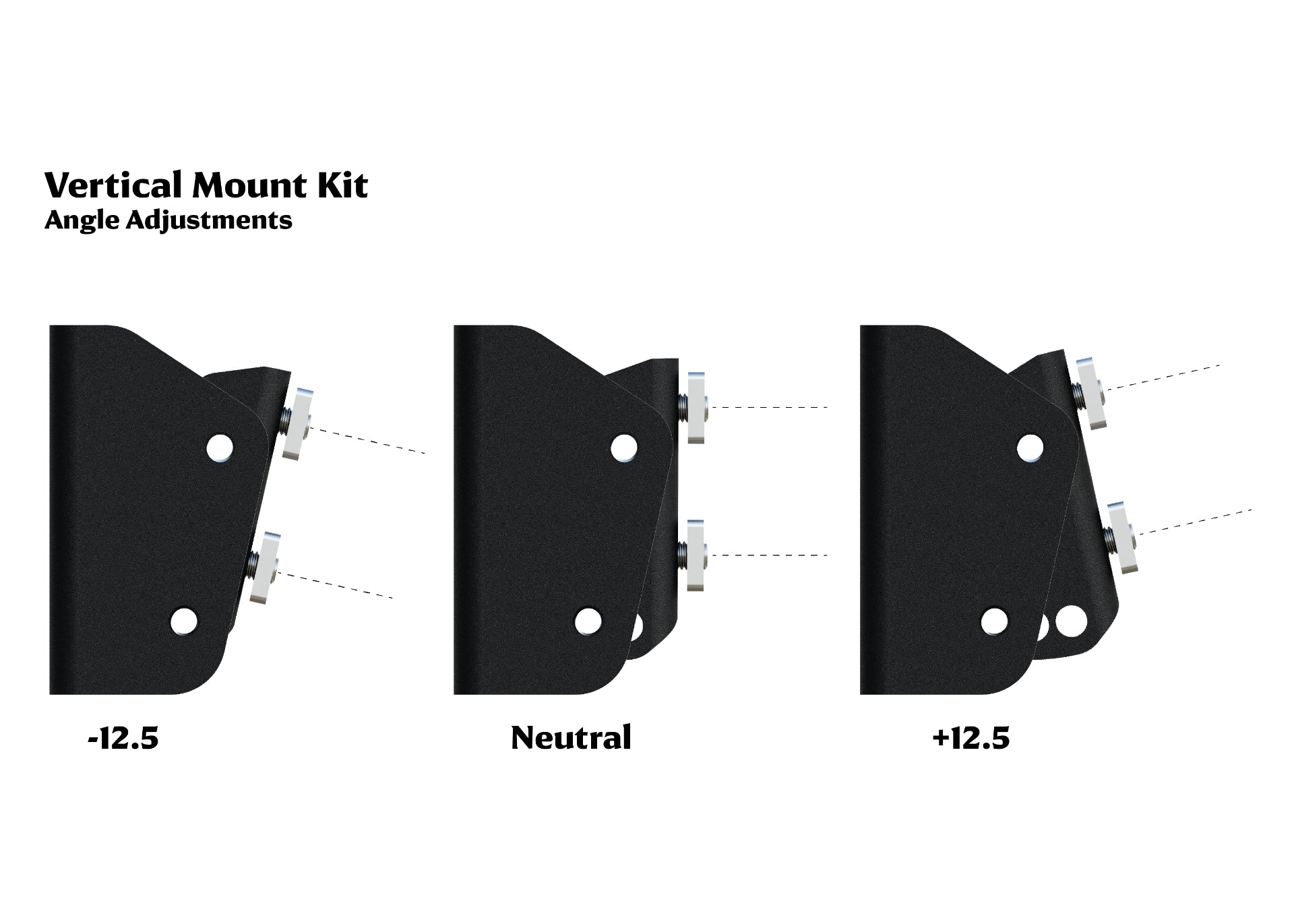

At installation, you're able to choose from three different angles of deployment so that Crosswing is the right height for your needs.
No se pudo cargar la disponibilidad de retiro
Overview

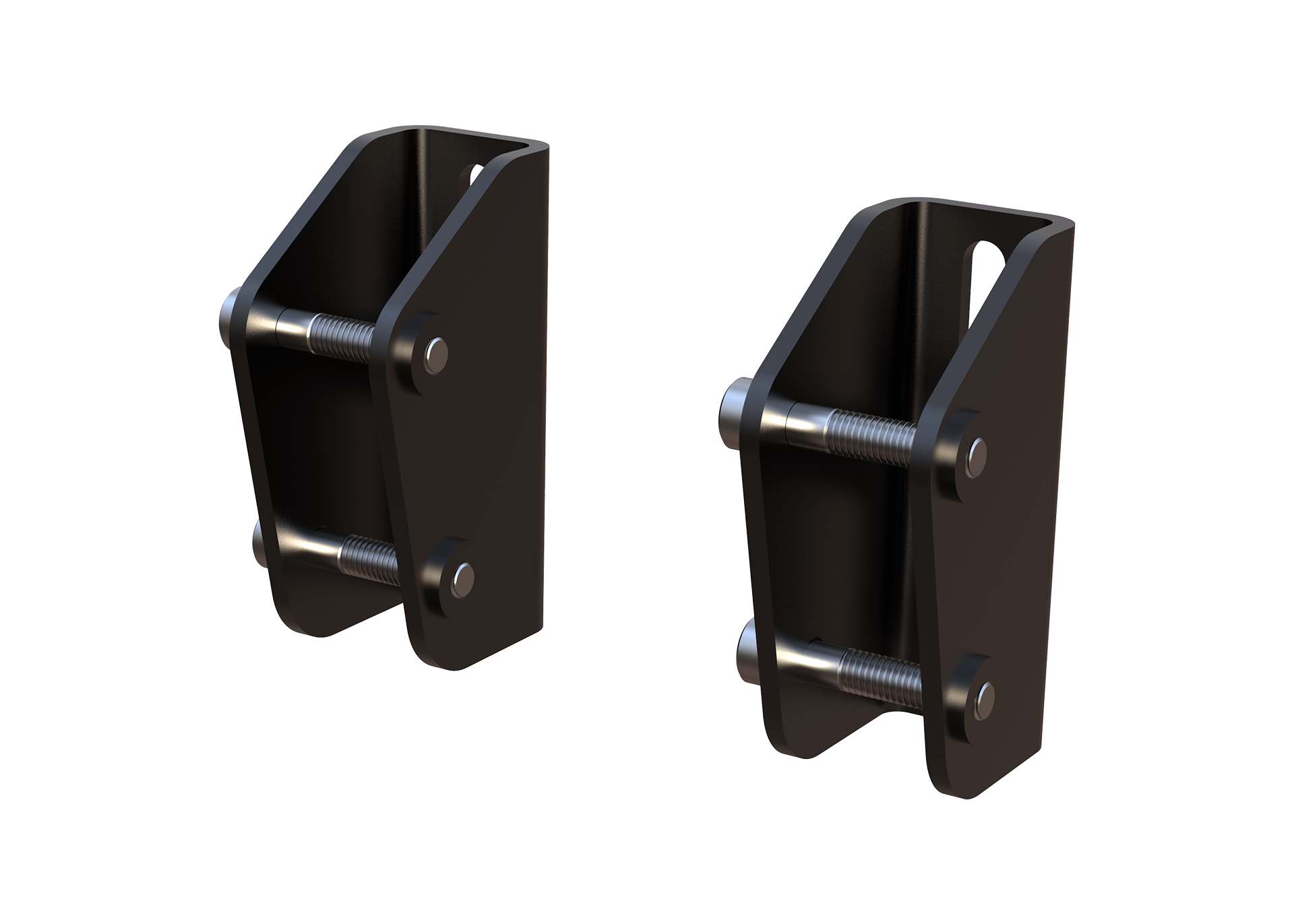

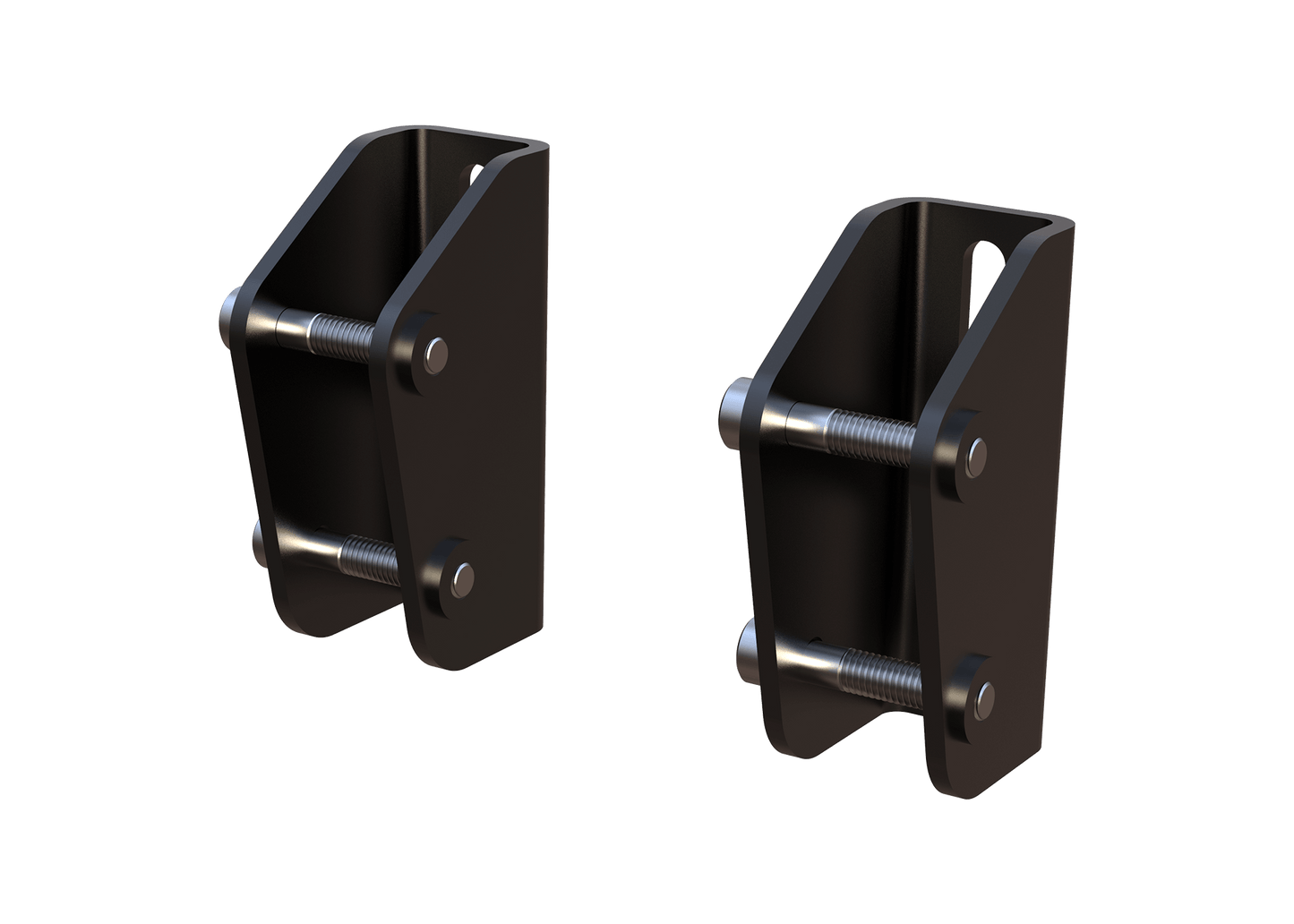

The Crosswing Vertical Bracket is a steel mounting pair that attaches the Kammok Crosswing awning to vertical surfaces via T-slot rails or M8 bolts. Sold as a pair with stainless hardware; the Crosswing awning is sold separately.
Key features
- Hardened powder-coated steel brackets with stainless steel hardware included
- Mounts to vertical T-slot systems or any weight-bearing wall using M8 (5/16") bolts
- Three deployment angles selectable at install to set awning height
- Pairs with Crosswing Talon Mounts to clamp onto vertical bars (e.g. utility-truck racks)
- Quick-attach design — install once, then hook the awning on or off without tools
Use cases
Buyers run the vertical bracket on the side of a platform rack, a camper or van wall, or the flank of an RV to keep the awning off the roofline. Mounted to a fixed patio post it turns the Crosswing into permanent shade. Add a second pair of Talon Mounts and the same awning swaps between two vehicles in seconds.
- Bracket material: Hardened powder-coated steel
- Hardware: Stainless steel, included
- Quantity: Sold as a pair (2 brackets)
- Mounting: Vertical T-slot rail or M8 (5/16") bolts
- Deployment angles: 3, selectable at install
- Talon Mount compatible: Yes (for vertical-bar clamping)
- Install tools: 5mm and 8mm hex wrench
- Ship weight: 658 g
Does this include the Crosswing awning?
No. The Vertical Bracket is a mounting accessory only — a pair of steel brackets plus stainless hardware. You need a Kammok Crosswing awning already on hand.
What can I bolt it to, and what size bolt?
It mounts to vertical T-slot rails using T-track square nuts, or to any weight-bearing vertical surface with M8 (5/16") bolts. That covers platform-rack side walls, camper and van walls, RV flanks, and patio posts.
Do I still need Talon Mounts?
Only if you're clamping to a vertical bar, like a utility-truck side rail. For flat T-slot or bolt-on surfaces the bracket mounts directly without them.
What tools do I need, and can one person install it?
A 5mm and an 8mm hex wrench. The quick-attach design is built for one-person installs — you fasten the brackets once, then hook the awning on and off by hand.
Can I use my own hardware instead of the included bolts?
You can, but Kammok only guarantees the mount with the supplied hardware. If you supply your own bolts, double-check the fit is fully tight with no risk of loosening before you load the awning.
How do I keep it from corroding?
The brackets are powder-coated steel and the hardware is stainless, so corrosion resistance is built in. Re-check fastener torque after the first few trips, since any new mount can settle.
