10 AMP MPPT Solar Charge Controller Bundle
10 AMP MPPT Solar Charge Controller Bundle

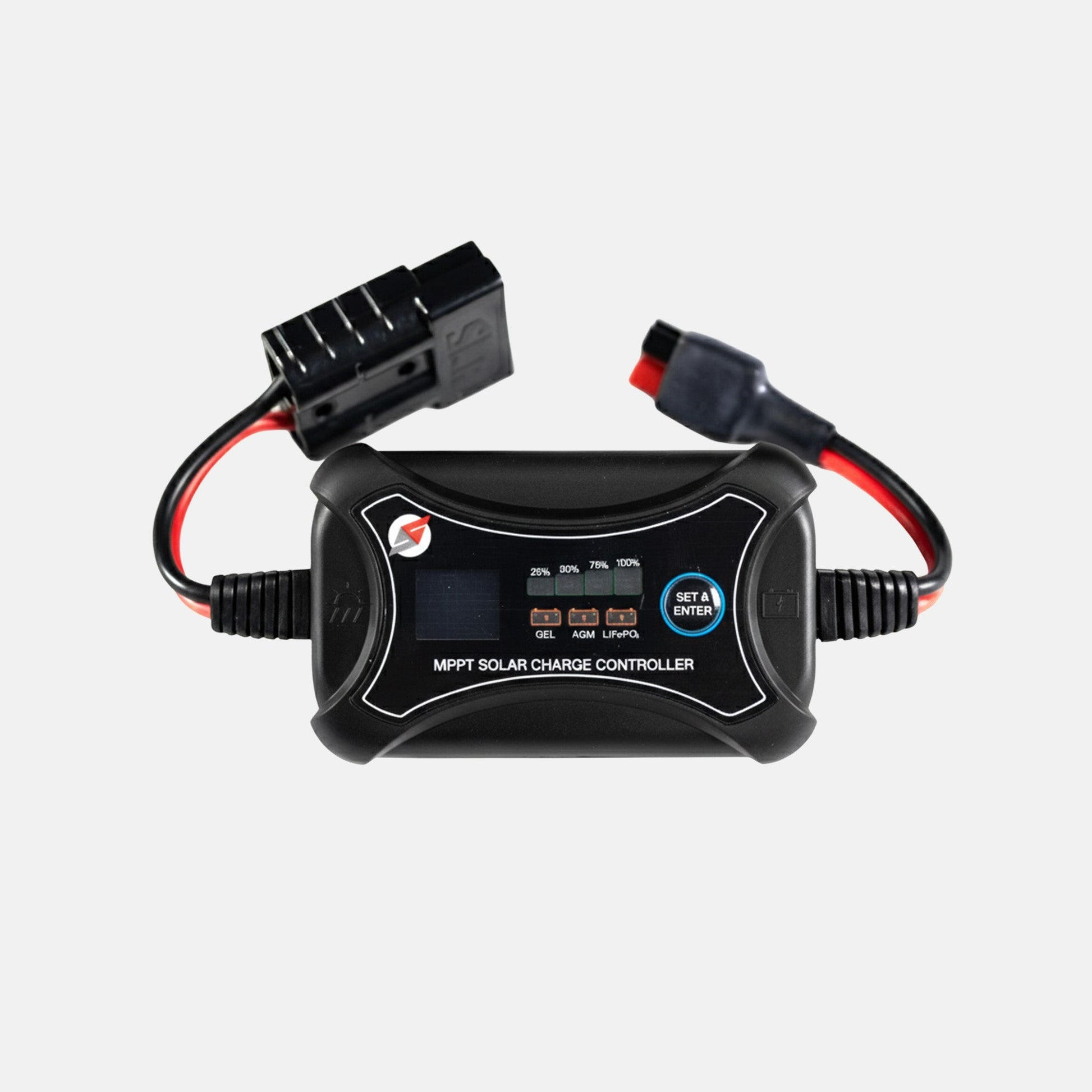

Our new Inline controller can now be used for AGM/Standard flooded. Gel, and Lithium 12 V batteries with a simple button to change battery types. The controller now has an LCD screen showing Battery voltage and current along, temperature, and any errors.
Connect your Overland Solar Bugout 130 directly to a 12V battery with our plug-and-play MPPT Charge Controller Bundle.
Designed to maximize available solar power using maximum power point tracking technology, this controller is automatically charges your battery appropriately based on available power and stage of charge. The kit includes two methods of connecting to your battery, either clamp directly or use the included SAE connection which is the most common connection for external charging campers and trailers. SAE female is positive. This kit can be used with any Bugout 130
Features
- Water Resistant Housing (IP45)
- Wired and ready to plug into the solar charger and battery
- "Set it and Forget it" - sets up in less than 1 minute with automatic settings
- Comes with our standard warranty,

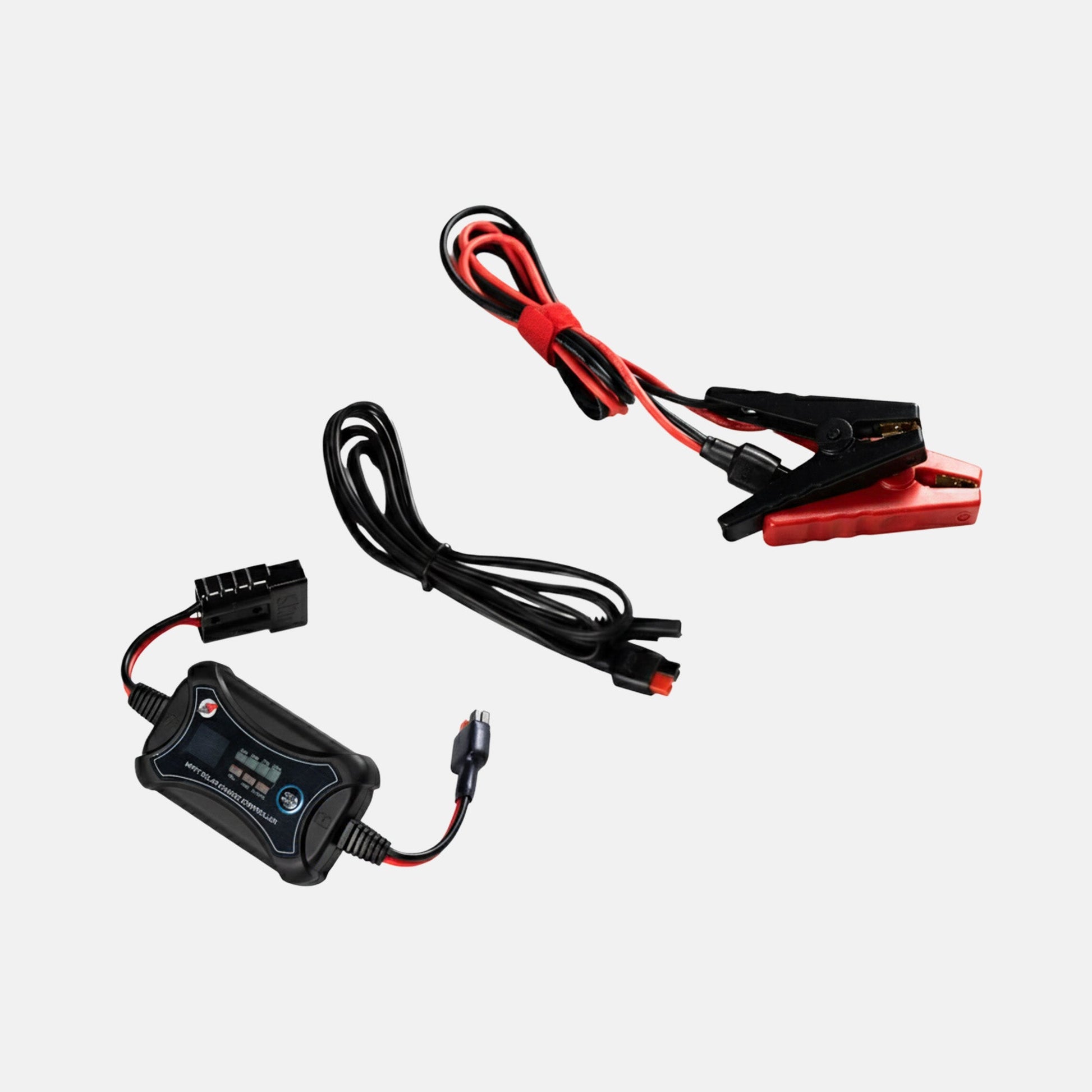

Kit Includes
10 amp controller with Anderson SB50 solar input and mini Anderson outbut
Large Alligator clamps with mini Anderson quick connect to the controller
Five Foot mini Anderson to SAE (female positive)
Specifications
Maximum open circuit voltage - 30V
Maximum solar power - 150W
Operating Temperature -4 to 113 F
AGM/Standard flooded
Boost/Bulk Voltage - 14.4V
Float Voltage - 13.8V
Equalize - 14.6V
Lithium
Boost/Bulk 14.4V
"Float" 14.4V
Gel
Boost/Bulk Voltage - 14.2V
Float Voltage - 13.8V
No se pudo cargar la disponibilidad de retiro
Overview
A 10-amp MPPT solar charge controller bundle that charges a 12V battery from a solar panel, with a 150W / 30V open-circuit input ceiling and button-selectable battery profiles for AGM/flooded, Gel, and Lithium.
Key features
- MPPT regulation: maximum power point tracking matches panel output to the battery's charge stage to pull more usable watts than a PWM controller.
- Battery-type select: one button switches between AGM/flooded (14.4/13.8/14.6V boost/float/equalize), Lithium (14.4/14.4V), and Gel (14.2/13.8V).
- LCD readout: live battery voltage, charge current, temperature, and error codes.
- Two output leads: large alligator clamps for direct-to-battery, plus a 5-foot mini-Anderson-to-SAE cable for camper/trailer charge ports.
- IP45 housing: water-resistant, rated -4 to 113°F operating range.
Use cases
Built for plug-and-play 12V charging at camp. Run a folding panel into the SB50 input and either clamp straight to an aux or dual battery in a rig, or use the SAE lead to top off a trailer or camper tongue battery through its external charge port. Matched to the Overland Solar Bugout 130 and any panel under the 150W / 30V ceiling.
- Charge current: 10 A
- Max solar power: 150 W
- Max open-circuit voltage: 30 V (Voc)
- Tracking: MPPT (maximum power point tracking)
- Battery types: AGM/standard flooded, Gel, Lithium (12 V), button-selectable
- AGM/flooded charge: 14.4 V boost / 13.8 V float / 14.6 V equalize
- Lithium charge: 14.4 V boost / 14.4 V float
- Gel charge: 14.2 V boost / 13.8 V float
- Display: LCD (battery voltage, charge current, temperature, error codes)
- Solar input: Anderson SB50
- Output: mini Anderson, with clamp lead and SAE lead included
- Included cable: 5 ft mini-Anderson-to-SAE (SAE female = positive)
- Housing: IP45 water-resistant
- Operating temperature: -4 to 113°F
- Panel match: Overland Solar Bugout 130 (any panel under 150 W / 30 V)
Which battery types does it support, and do I have to configure it?
AGM/standard flooded, Gel, and Lithium 12V. A single button cycles the battery type, and the controller applies the right voltages automatically: 14.4/13.8/14.6V boost/float/equalize for AGM-flooded, 14.4/14.4V for lithium, and 14.2/13.8V for gel.
What size solar panel can I run into it?
Up to 150W with a 30V open-circuit ceiling. It's matched to the Overland Solar Bugout 130 and will accept any panel that stays under both of those limits.
How does it connect to my panel and my battery?
Solar goes in through an Anderson SB50. The controller's mini-Anderson output ships with two leads: large alligator clamps for direct-to-battery charging, and a 5-foot mini-Anderson-to-SAE cable for the external charge port found on most campers and trailers. On that SAE lead, the female terminal is positive.
Is it weatherproof enough to leave outside?
The housing is IP45 water-resistant and rated -4 to 113°F. That's fine for rain and splash at a campsite or on a trailer tongue, but it isn't submersible, so keep the Anderson connectors dry when stored.
Why MPPT instead of a cheaper PWM controller?
MPPT tracks the panel's maximum power point and converts that output to match the battery's charge stage, which recovers watts a PWM controller would leave behind, especially when panel voltage runs above battery voltage. The trade-off is a higher upfront cost than a basic PWM unit.
