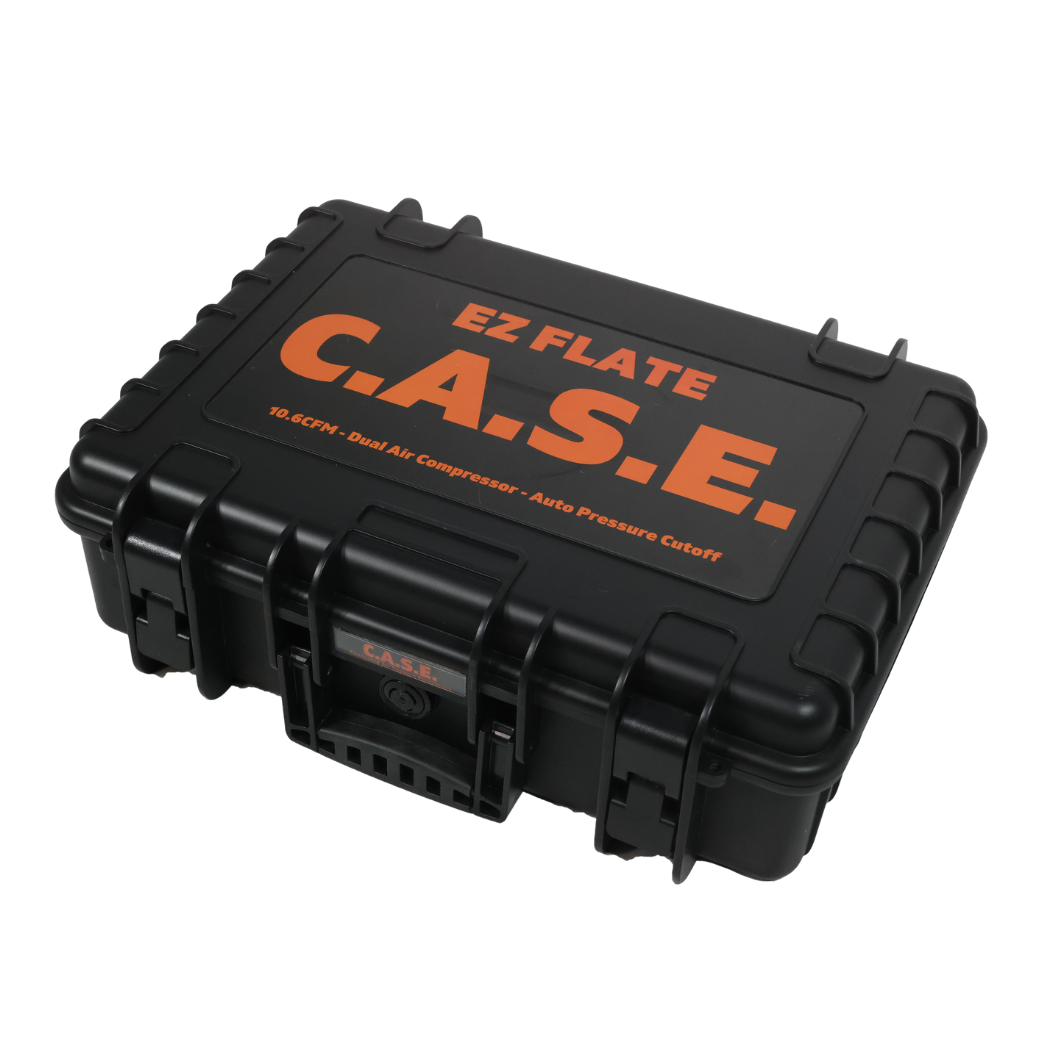

The EZ FLATE C.A.S.E. (Concealed Air Support Equipment) is a 12V dual-motor air compressor built into a hard polymer case that mounts permanently and stays out of sight. Two cylinders move 10.6 CFM (300 LPM), so big tires air back up fast. Run-time to take 35" tires from 10 to 30 PSI is about 6 minutes. Max pressure is 110 PSI, with an automatic cutoff at 120 PSI so you can't over-pressure it.

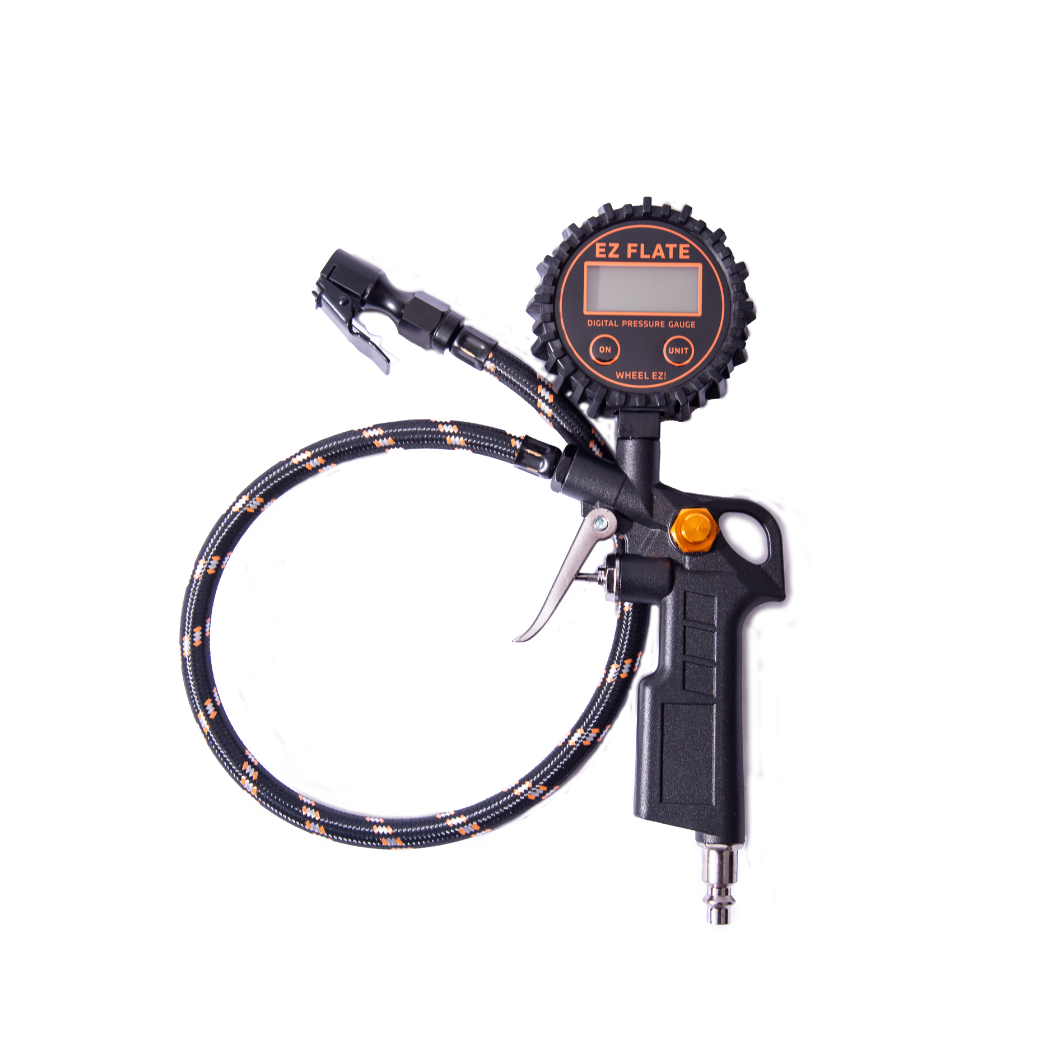

It draws up to 90 amps at 12V and clamps straight to the vehicle battery, so run it with the engine on. A 26 ft extension hose lets you tuck the case anywhere in the rig and still reach every corner, and the 4 ft lead hose reaches the ground even on 40" tires. A digital trigger gauge handles single-tire fills. Like any twin-motor unit, it runs around a 50% duty cycle, so air a pair of tires, give it a short rest, then finish the set.

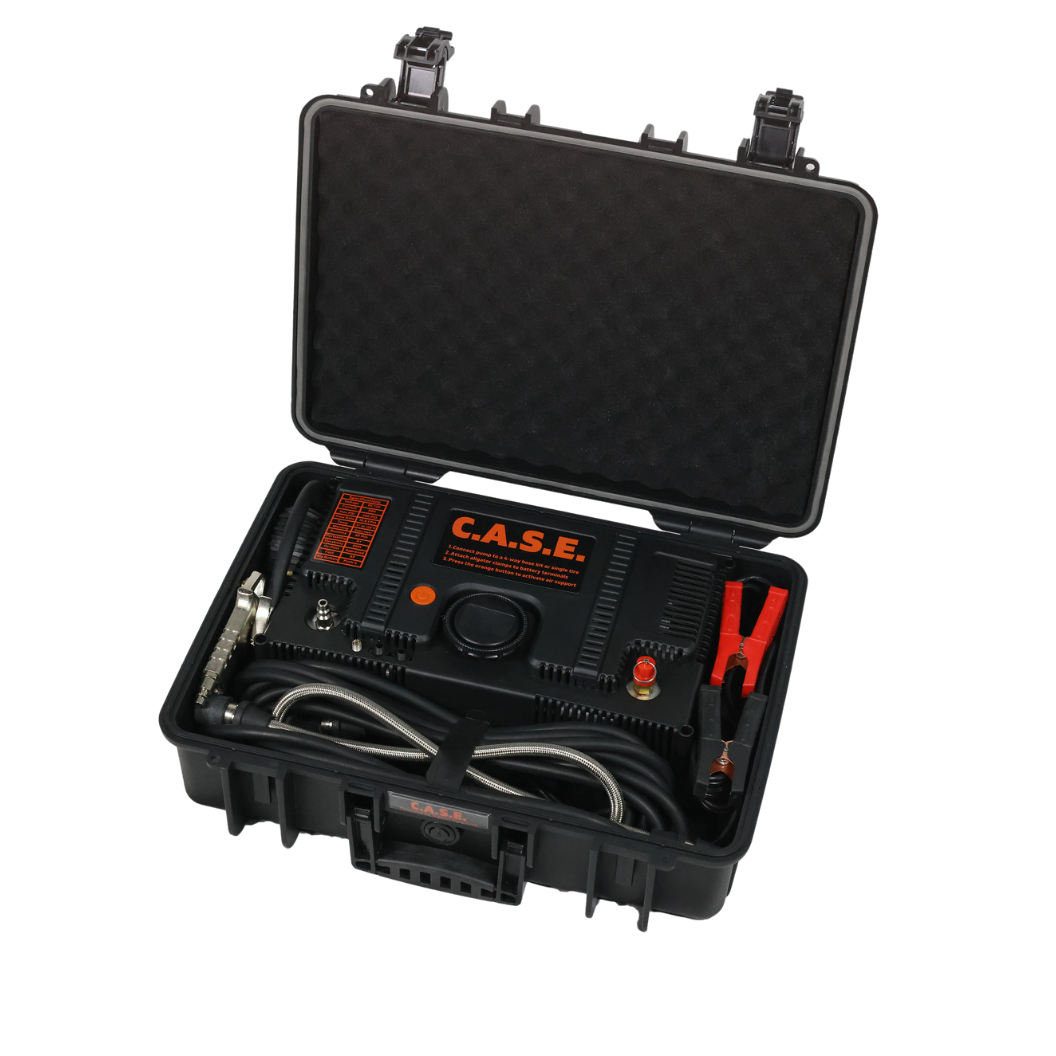

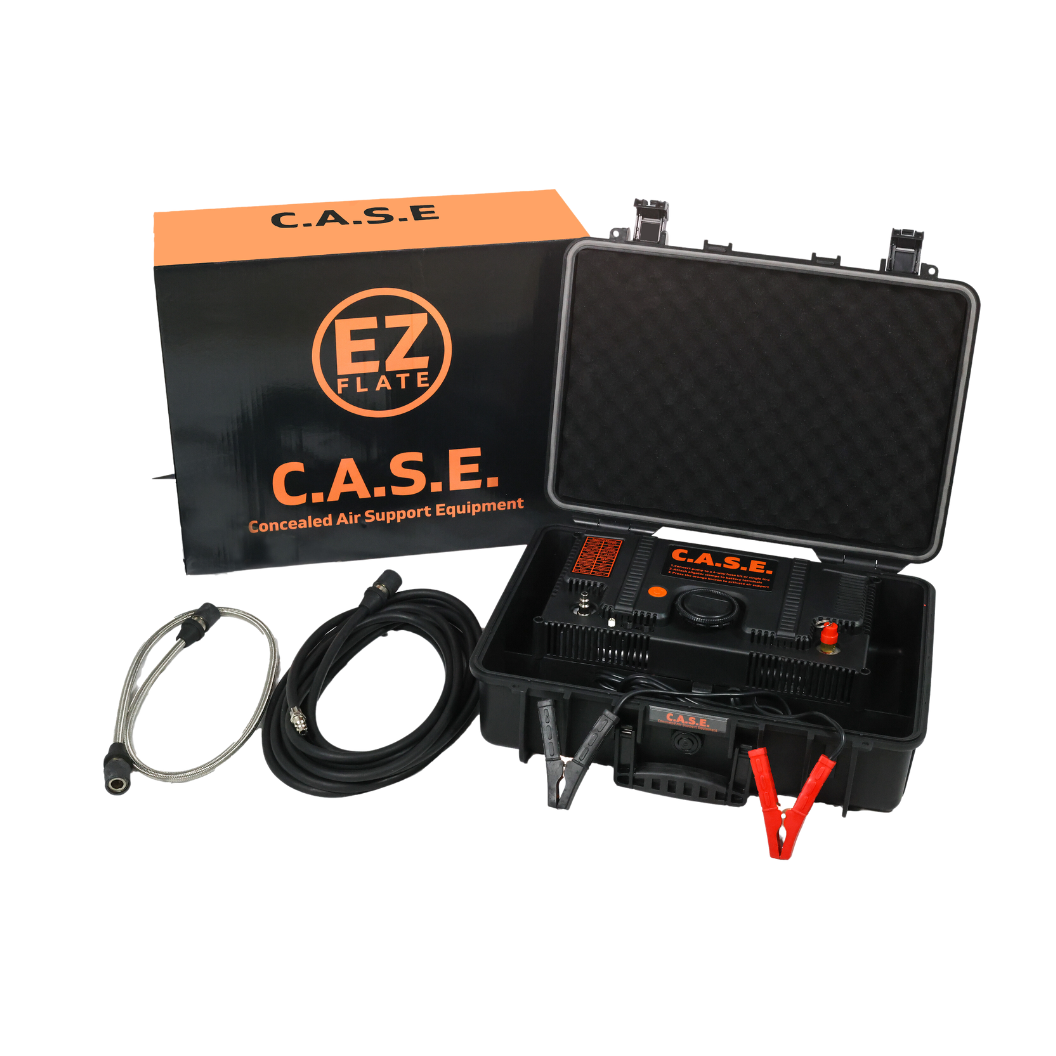

The case ships with the compressor, the 26 ft extension hose, the 4 ft lead hose, and the trigger gauge. It does not include the multi-tire hose kit that airs all four tires at once, which is sold separately. It connects to EZ FLATE air components with no adapters, and it's backed by a 3-year warranty.
